2.
(If needed) Remove the rear connector cover from the server module before
inserting it in the modular system.
Remove a filler panel from the modular system chassis slot that you intend to
3.
use.
When the modular system is operating, you must fill every slot with a filler panel or a server
module within 60 seconds.

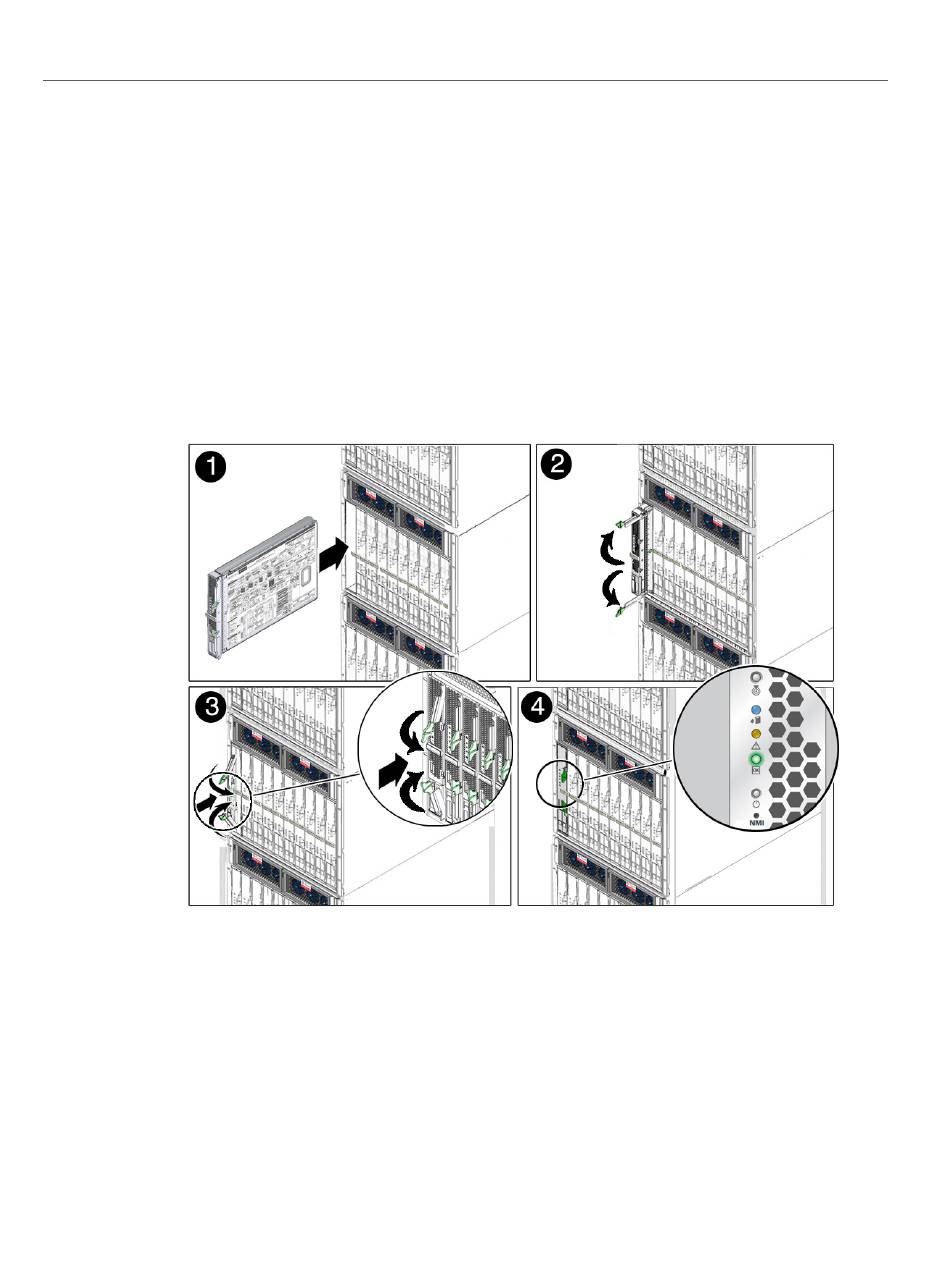

Hold the server module in a vertical position so that both ejector levers are on
4.
the right (panel 1).
5.
Slide the server module into the chassis and extend the ejector levers (panel 2).
6.
Close both levers simultaneously, locking the server module in the modular
system chassis (panel 3).
Once installed, these server module activities take place:
Standby power is applied.
■
Install the Server Module Into the Modular System
Returning the Server Module to Operation
101
