Accessories

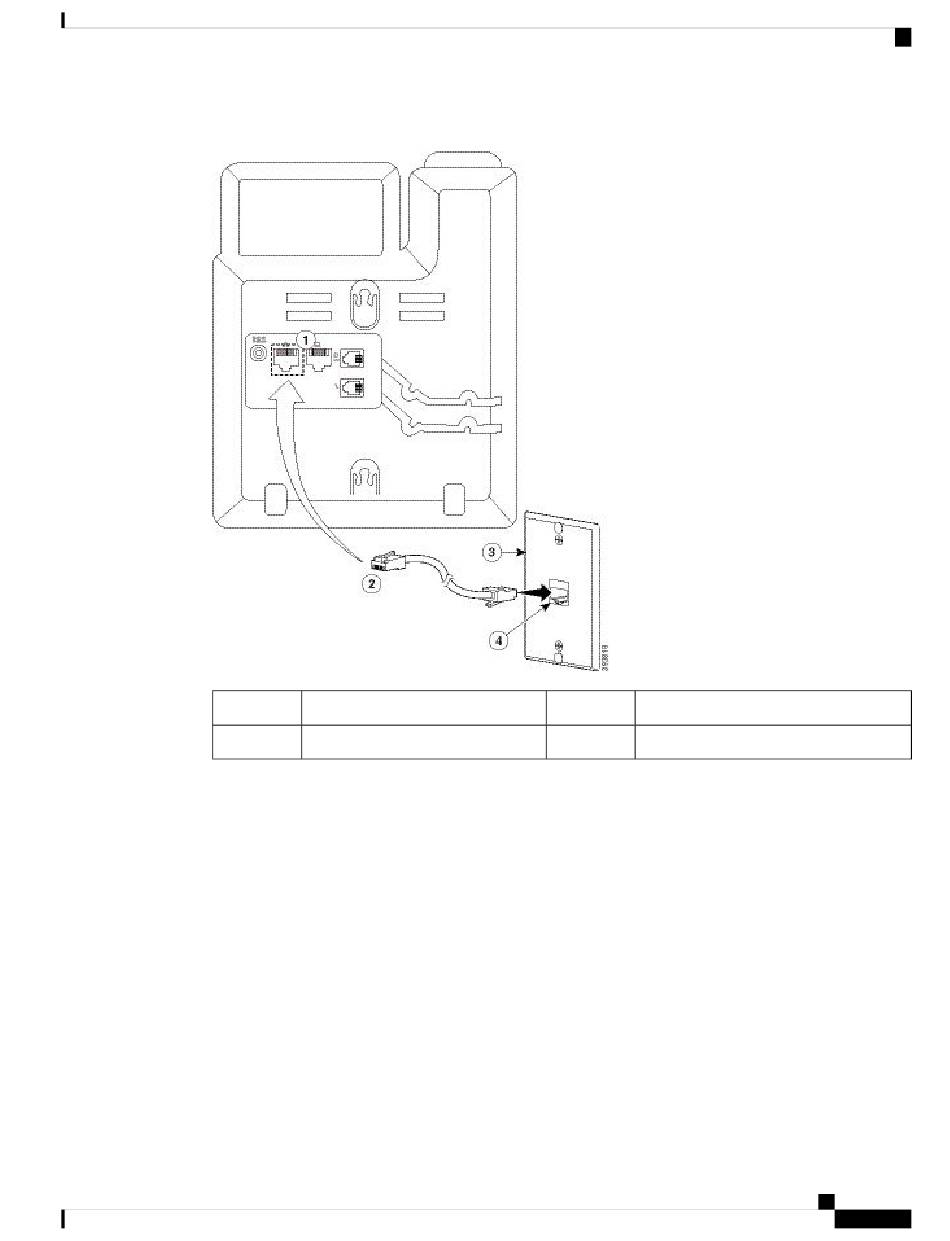

Figure 23: RJ45 Connector in the Wall Mount Jack
1
2
Step 5
Press the LAN cable into one of the cable channels.
Step 6 (Optional) If you do not use PoE, plug the power adapter into the phone and the electrical outlet, and press
the power cable into the other cable channel.
Step 7
Slip the mounting holes on the phone over the wall mount pins as shown in the following figure.
Network Port on the Phone
RJ45 Connector
Install the Cisco IP Phone 6821 Multiplatform Phones on a Wall
3 Wall Mount Plate
4 Network Port on the Wall Mount Plate
