Quick Start Reference Card

POWER

Power your TRUE SPRING with the included power supply. If you are using pedalboard power, be sure to use a
regulated 9 Volt DC output that can source at least 150mA.

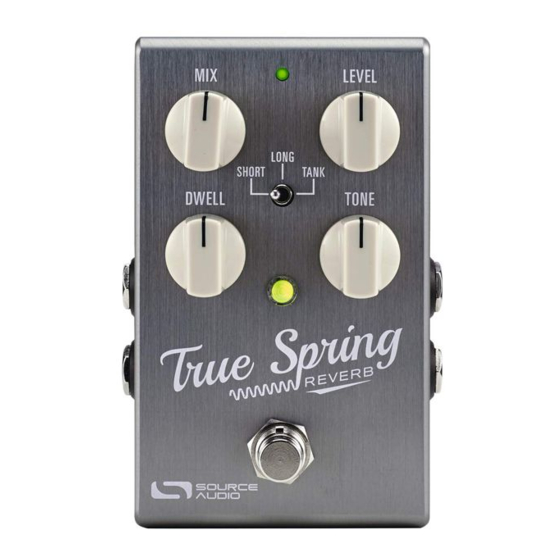

MAIN CONTROLS

MIX – Relative level of the dry and wet signals. 50/50 at 3 o'clock.
LEVEL – Sets the overall output level.
DWELL– Controls the intensity of the reverb - how hard the "springs" are being driven
TONE– Tone control over the wet signal.
SHORT – Normal amp spring reverb
LONG – Longer amp spring reverb
TANK – Outboard spring reverb tank
TREMOLO CONTROLS – HOLD DOWN THE CONTROL BUTTON WHILE TURNING KNOB
MIX – No change
LEVEL – No change
DWELL– Controls Tremolo depth
TONE– Controls Tremolo speed
SHORT – Opto tremolo (from the Source Audio Vertigo Tremolo)
LONG – Harmonic tremolo (from the Source Audio Vertigo Tremolo)
TANK – Bias Tremolo (from the Source Audio Vertigo Tremolo)
NEURO DESKTOP EDITOR – CONNECT VIA USB
Access additional editable parameters, spring lengths, signal routing and other hardware
controls. Publish and browse preset libraries. Connect your True Spring pedal to a Mac
or Windows PC and download the Neuro Desktop Editor.
NEURO MOBILE APP– CONNECT VIA PHONE
Use the supplied cable from your iOS or Android device headphone jack to INPUT 2 on
the pedal to access the Neuro world of presets and controls on-the-go.
USERS GUIDE – NEURO EDITOR – NEURO MOBILE - SUPPORT
www.sourceaudio.net/products/true_spring
