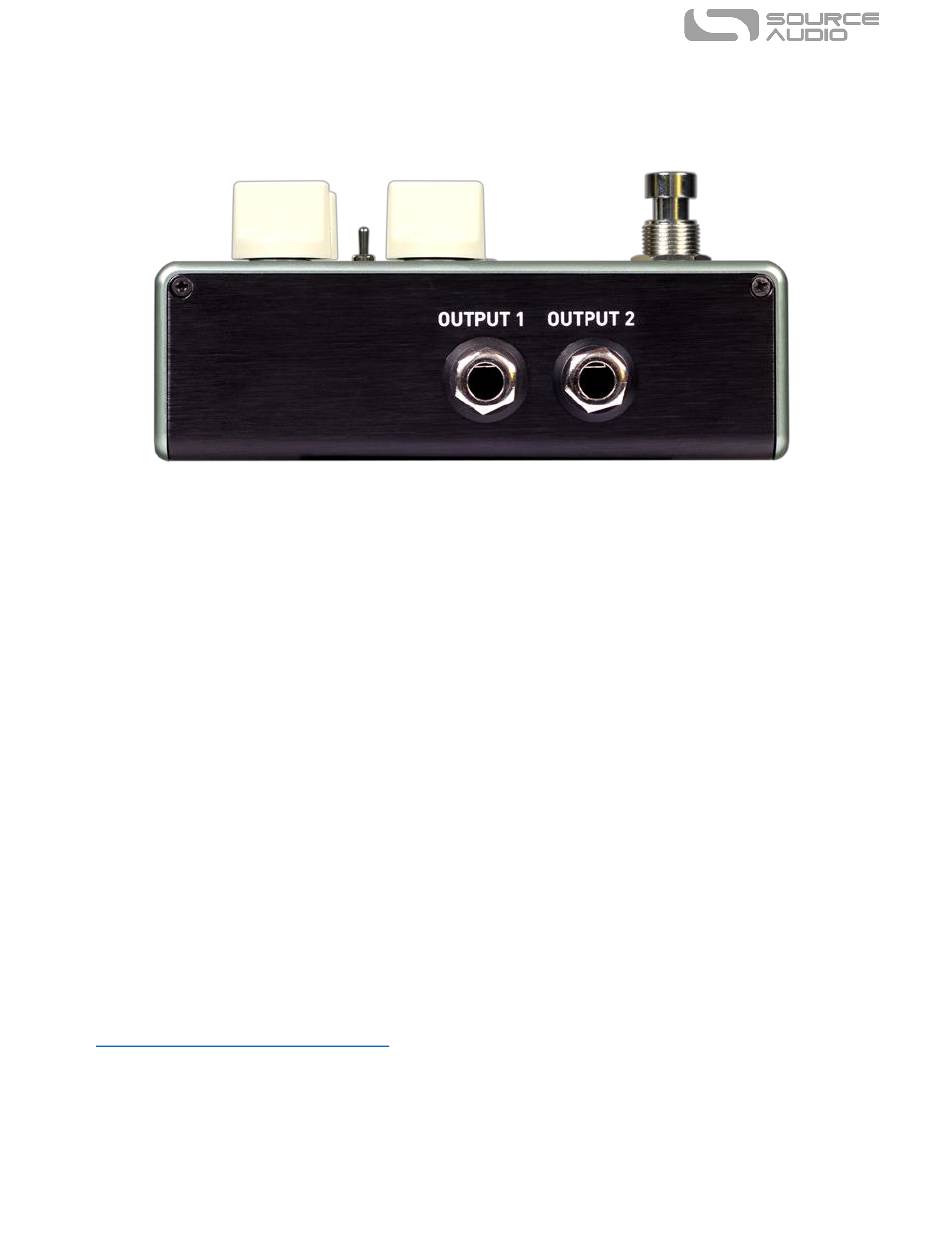

Output Side Connections
Output 1
This is the primary mono Output. Connect this Output to your amplifier, recording interface, or the
next device in your effects signal chain using a mono (TS) ¼" cable.
Output 2
Acts as either an audio output, the daisy-chain data connection for the Neuro App, or both audio and
Neuro Data simultaneously.
Output 2 as an Audio Output
The tip contact on Output 2 acts as the secondary audio output. It carries an audio signal when the
True Spring is configured with a signal routing that uses stereo outputs. Connect it to your amplifier,
recording interface, or the next device in your effects signal chain using a mono (TS) ¼" cable.
Output 2 as a Neuro App Data Daisy-Chain Output
The ring contact on Output 2 acts as a data connection for the Neuro App, passing data from the True
Spring to the next Source Audio effect in your signal chain. You can daisy-chain the Neuro App data
regardless of whether Output 2 is configured to output audio or not. Connect Output 2 to the next
pedal's Neuro App Data input (Input 2) using a stereo (TRS) ¼" cable. The audio signal (if applicable)
will be on the tip contact of the plug, and the Neuro App data will be on the ring contact. See the
Daisy-Chaining Neuro Communication
SA247
section for more info.
