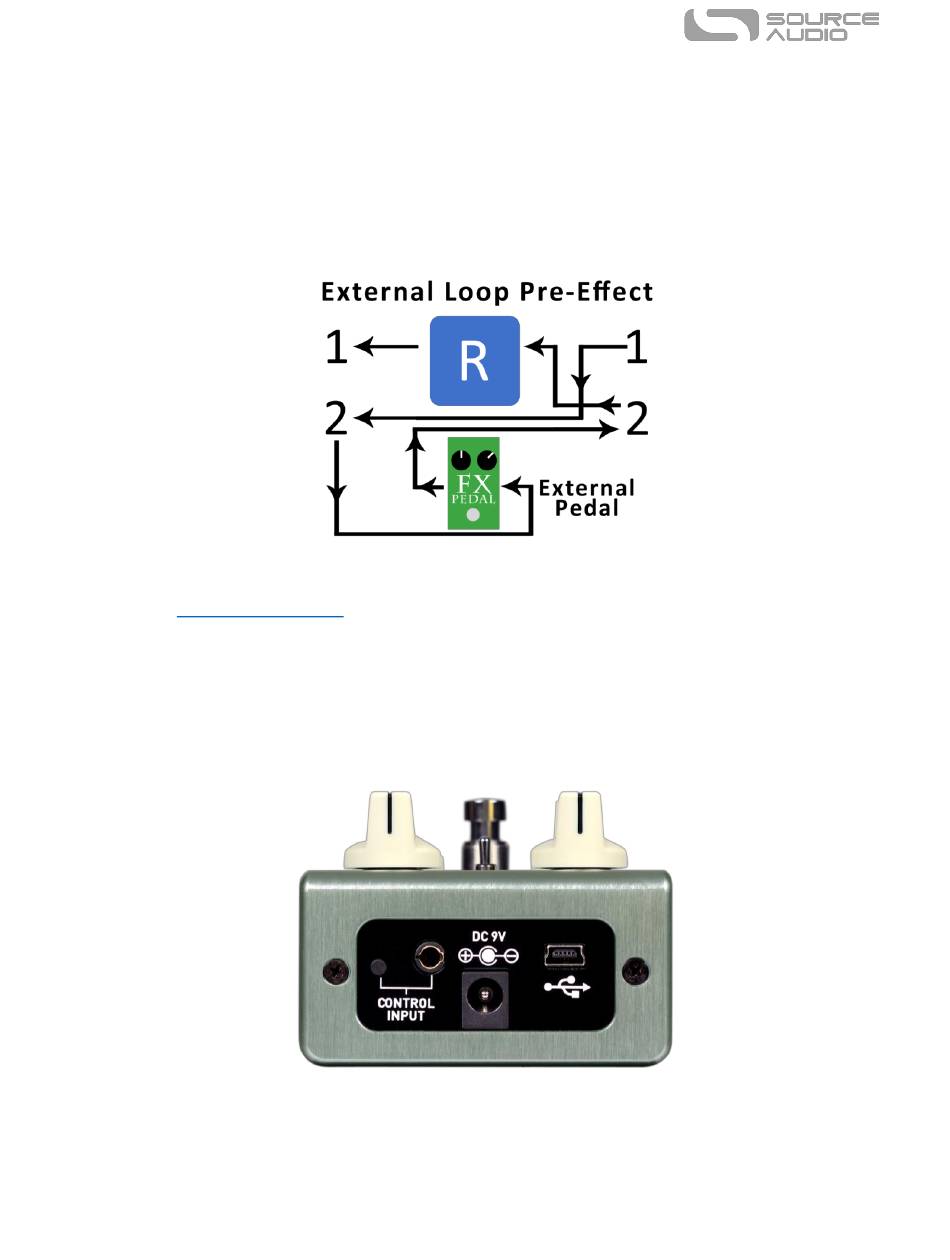

External Loop Pre-Effect
Place an additional pedal or pedals within the True Spring's effects loop. Connect as follows: plug
your guitar into Input 1 of the True Spring, run the signal from Output 2 of the True Spring to the
input of the external pedal, from the output of the external pedal to Input 2 of the True Spring, and
from Output 1 of the True Spring to your amp or the next pedal in the effects chain. Now when the
True Spring is engaged, both pedals will be active. When the True Spring is bypassed, so is the
external pedal.
Check the Neuro Desktop Editor for details on setting up the I/O Routing Options.

External Control

The CONTROL INPUT port opens a variety of external control options, allowing for direct control over
many of the True Spring's parameters. It is an input for the Source Audio Dual Expression Pedal,
Reflex Universal Expression Pedal, Source Audio Tap Switch, or a data port for the Neuro Hub.
