9.3 Operating the accessory components
The accessory components can significantly increase the range of functions of the Pro
system version and expand its area of application.
9.3.1 Caster measurement
With the
measurement, you have the possibility to
measure the caster as well as the SAI of
your suspension geometry. The existing
camber sensor (inclinometer) and a toe
measuring module serve as measuring
sensors. Please note that it is imperative
that the wheel adapters on the front axle
are clearance free and can be rotated
when installed.
WARNING

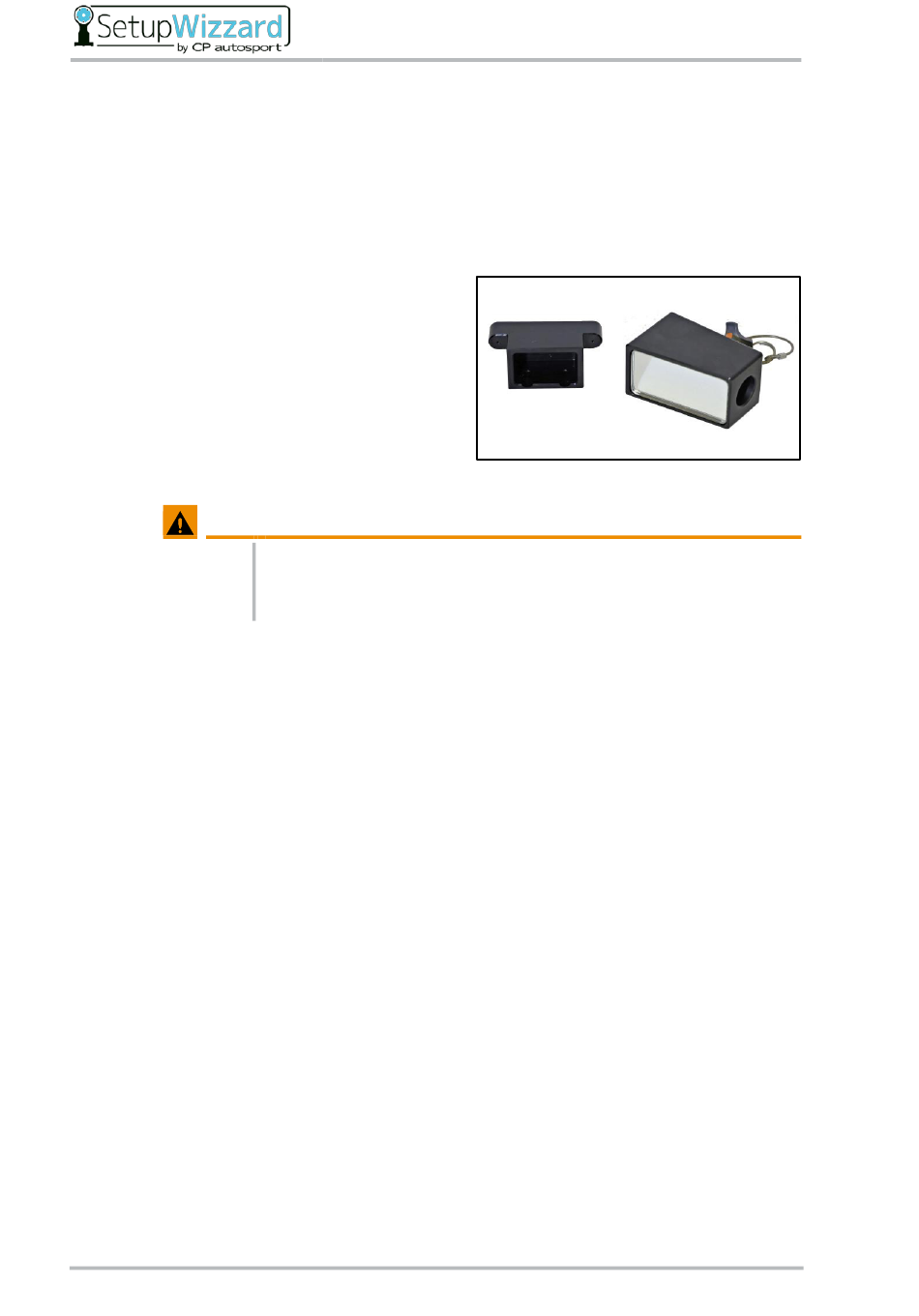

Once all the necessary components are ready, the modification of the system for caster
measurement can be started. First exchange the toe measuring module on the side of the
front axle to be measured with the mirror of the caster measurement kit. Remove the ball
lock pin and pull the toe measuring module from the guiding shaft. Slide the mirror onto the
guiding shaft and lock it with the ball lock pin. Then attach the magnetic holder from the
caster measurement kit as horizontally as possible to the clamp ring of the wheel adapter.
Make sure that there are no foreign objects on the magnets and that they fit evenly. Now
slide the inclinometer into the magnetic holder. Make sure that the spring pads point
downward toward the measuring platform and that the inclinometer fits evenly on top of the
surface. Engage the brake or have the brake operated by another person. Now carefully
remove the positioning templates on the front axle to allow steering. Then insert these
templates additionally on the rear axle. Finally, open the tab for measuring the caster and
SAI in the software.
50
optional kit for caster
Before using the caster measurement, make sure that the wheel
adapters can be rotated when installed. Otherwise the vehicle may slip
off the measuring platform during the first turning!
