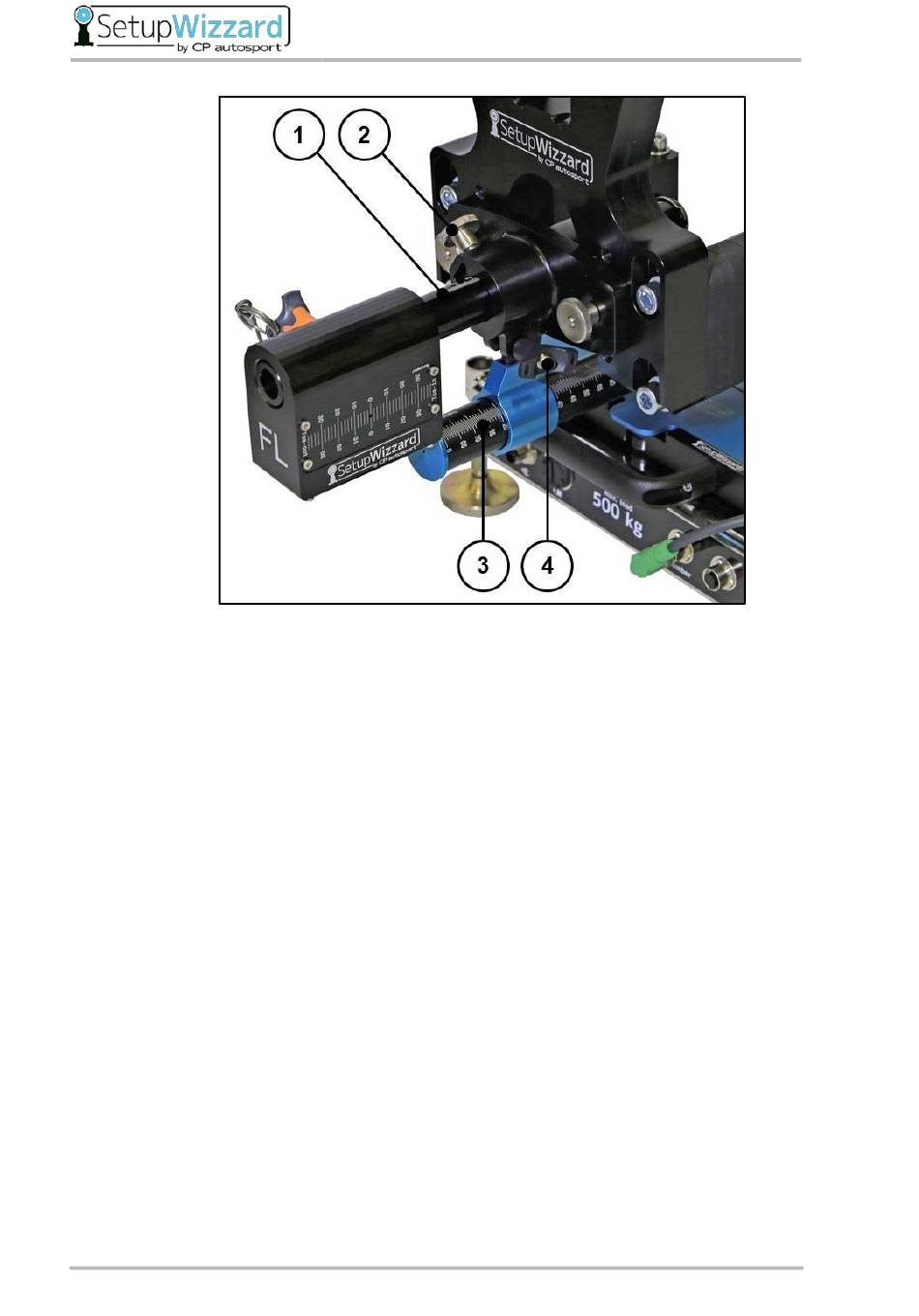

1 Ball lock pin
2 Scale value on laser shaft
Attach the gauge to the measuring slide and the reference end to the left and the right
setup wheel of the axle using the ball lock pins. Then read the measured value at the
measuring slide and adjust it on both sides of the measured axle at the laser. To do this,
loosen the clamping screw and move the laser shaft to the setup wheel.
Then measure the second vehicle axle with the track gauge (length must not be changed!).
To do this, slide the gauge between the stands of the setup wheels and fix it into position
with the ball lock pins similar to the other axle. Set the read value on both sides (scale 1:2)
at the toe lasers of the second axle.
If the track width changes considerably during suspension adjustment, e.g. due to camber
variation, you may have to readjust the toe lasers again before the final toe measurement.
It is recommended to set a mark on the gauge to determine the length for future
measurements.
42
3 Clamping screw
4 Scale value on track gauge
