9.2.4 Measuring the ride height
In order to determine the ride height of your vehicle, the leveling laser is required in addition
to the height measuring modules. This forms the reference plane on which the ride height
to the undertray of the vehicle can be read.
NOTE
WARNING

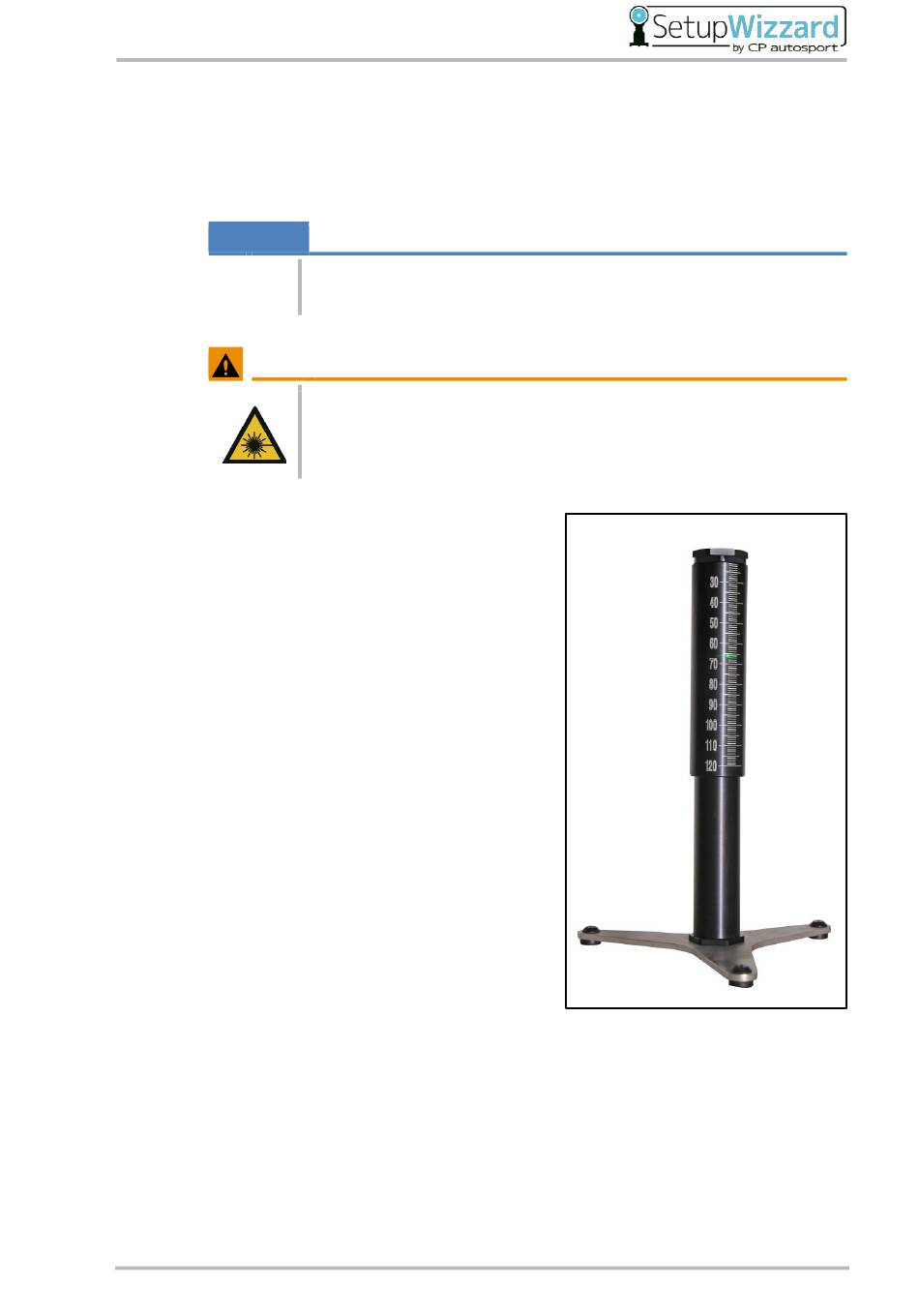

Position the height measuring modules at the
desired positions under the vehicle. Unlock the
height measuring modules by turning them to the
right. The measuring scale is now pressed by
spring force from below to the desired measuring
point. Depending on the type and condition of the
measuring point, you can use two differently
sized measuring tips. In addition, you can
compensate for any difference between the
undertray and the measuring point with the aid
of the removable measuring tips. The difference
between the wheel contact area on the platform
and the level of the laser is already taken into
account in the scale. If the setup wheels are set
correctly, you can measure the ride height of the
vehicle directly above the road surface.
Wheel alignment system SetupWizzard
It is important that the leveling laser has not been moved and that it matches
the markings on the leveling sheels of all platforms.
Injury hazard due to laser beams
Laser beams can cause eye injury.
•
Do not stare directly into the laser beam.
