The setup wheels supplied by CP Tech only have a preset based on known vehicle data
and typical tire data. The wheel offset and the tire radius is required for this:
Inside
We always set the setup wheels to the theoretical wheel offset and the static tire diameter.
With the aid of the setup wheel offset, the reaction behavior of the measuring system to
camber variations on the vehicle can be adapted to the behavior of the vehicle wheels.
Overview of adjustment options
Position
Stand
1
2
3
4
To further increase the accuracy of the measuring system, it makes sense to set
the setup wheels exactly to the tires used.
Wheel alignment system SetupWizzard

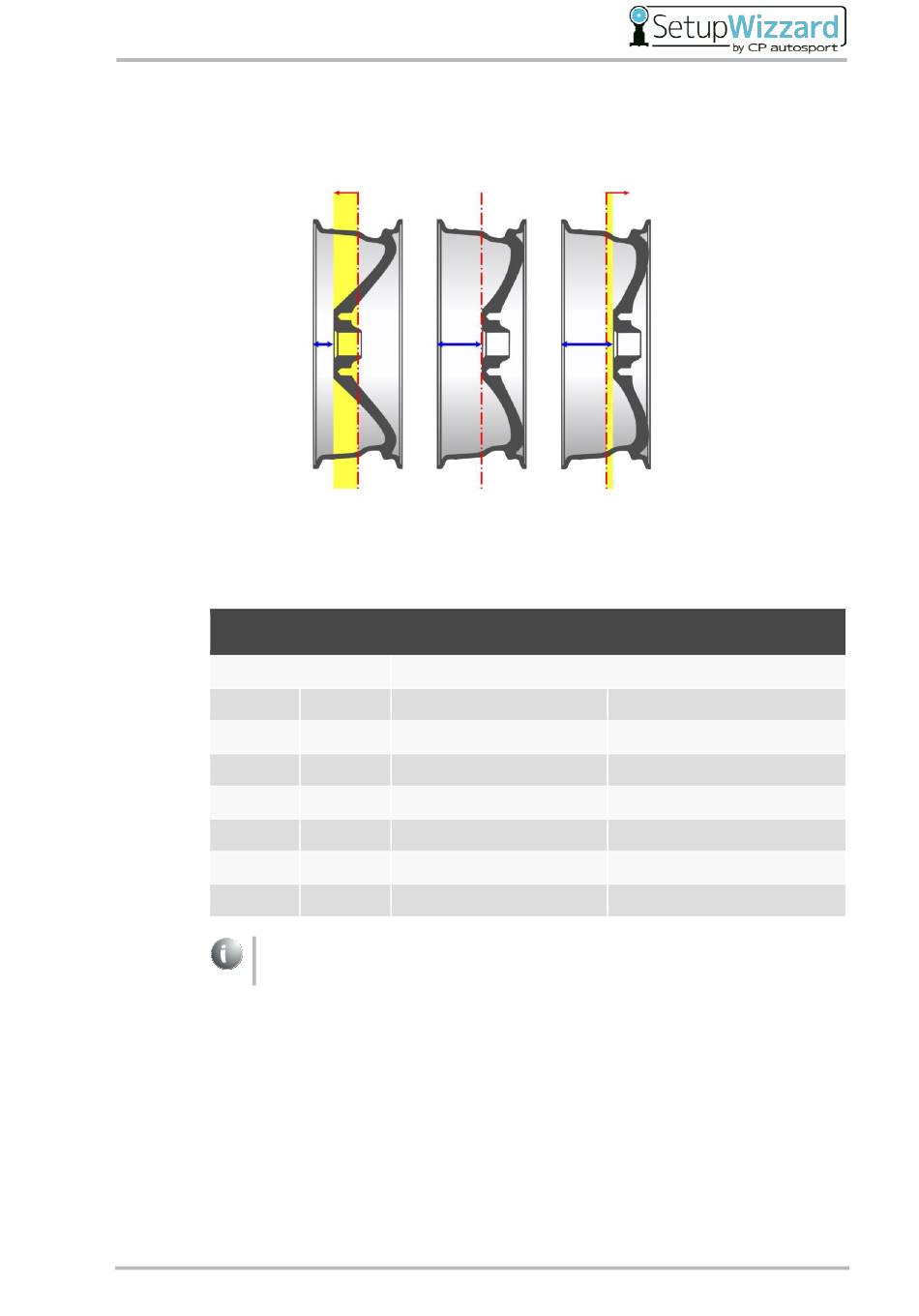

WO negative WO 0
Adjustment range
Ball caster Tire radius [mm]
300-315
315-330
330-345
345-360
A
B
WO positive
Outside
Wheel offset [mm]
10-50
37.5-77.5
