CP Autosport SetupWizzard Operating Manual page 35

7.2 Replacing the wheel adapters
If different vehicles are to be measured, the wheel adapters may have to be replaced. It
should be noted that the wheel adapter can also be rotated after the conversion and sits
backlash-free in the setup wheel.
To change the wheel adapter, first remove the setup wheel from the vehicle. Then
dismantle the clamping ring by removing the five countersunk bolts on the head of the setup
wheel. When dismantling the clamping ring, make sure that the shims for adjusting adapter
clearance are not lost. The wheel adapter can now be removed by rotating it.
Subsequently, the desired wheel adapter can be installed. To do so, grease the fitting
surface first. Then insert the adapter into the setup wheel while rotating it. Make sure that
no dirt or chips impair installation.
Afterwards, adjust adapter clearance when installing the clamping ring; shims with a
thickness of 0.1 mm are available for this purpose. Alternately tighten the countersunk
screws with the specified torque alternately.

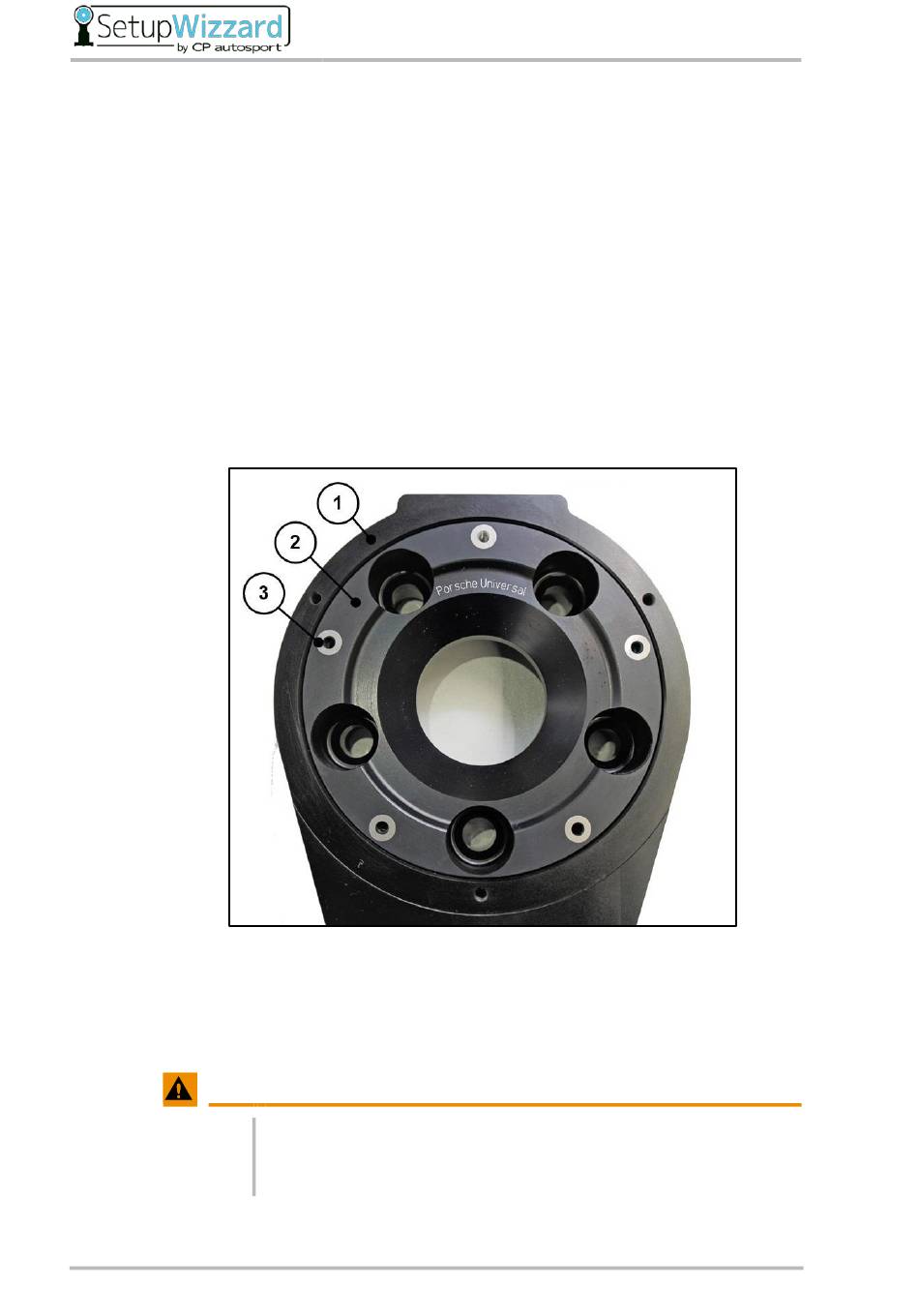

1 Setup wheel
You have used the correct number of shims if the wheel adapter is still difficult to rotate
after the clamping ring has been installed. In order to avoid measurement errors, it is
important to ensure that clearance is not too large.
WARNING
30
2 Wheel adapters
When tightening the countersunk screws, pay attention to the correct
tightening torque of 7Nm and the correct clearance between the wheel
adapter and the setup wheel.
Contents
3 Shims
