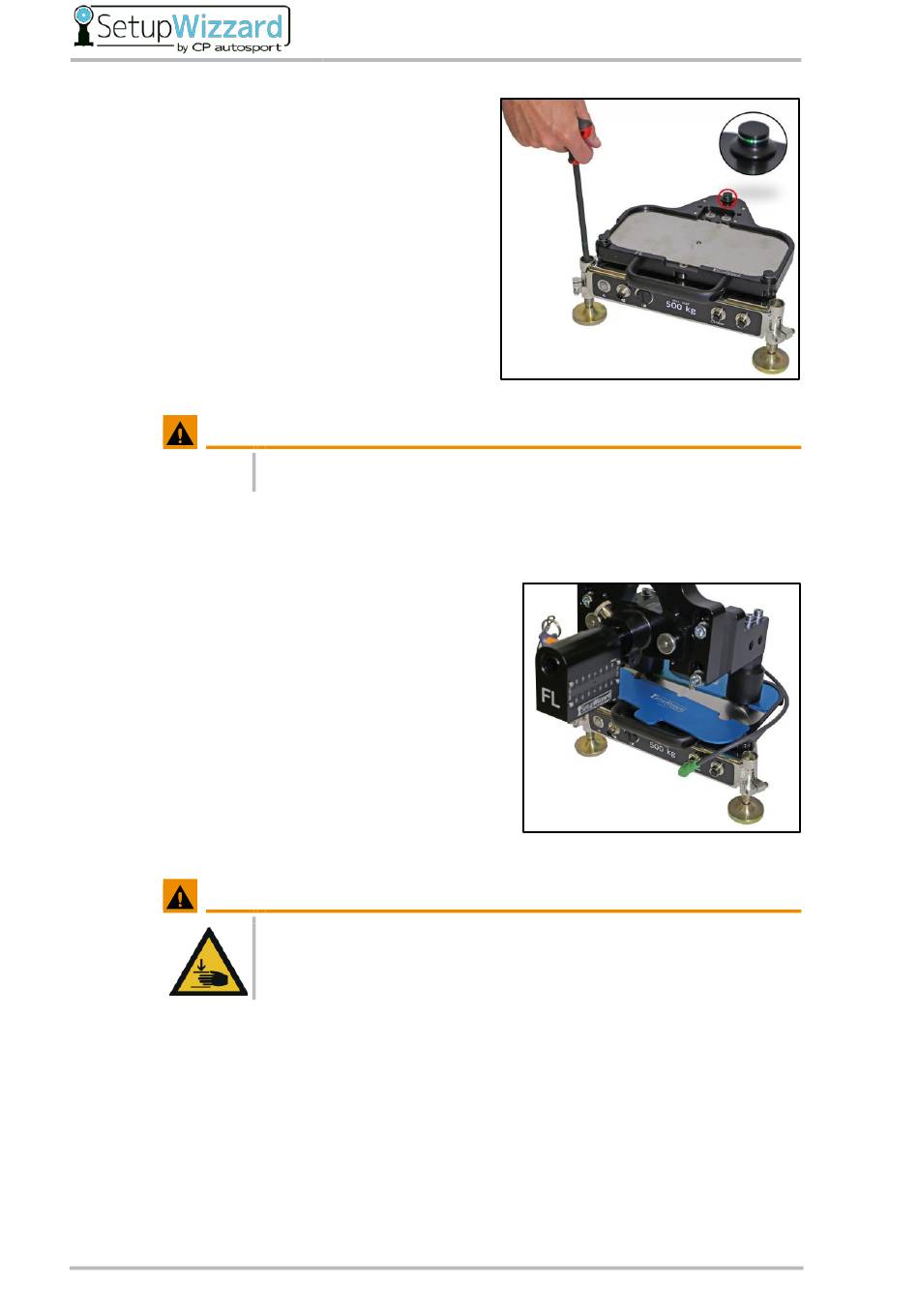

Now insert the leveling sleeves into the holes
provided in the load plate. Check the set
height at all three corners and adjust if
necessary. To do this, loosen the clamping
screws at the corner of the measuring
platform with the supplied 4 mm hexagon
socket wrench. You can then adjust the height
with the 8 mm hexagon socket wrench. Make
sure that the beam of the leveling laser has
the same height on all three sleeves. After the
measuring platform has been aligned in
height, secure its height adjustment again
with the clamping screws at the corners of the
platform.
WARNING
8.2.4 Lowering the vehicle onto the measuring platforms
Now lower the vehicle onto the leveled platforms.
While doing so, avoid impact loads on the
measuring platforms. When lowering, make sure
that when the ball casters of the setup wheel
make contact with the platform the vehicle can
start moving and can move freely within a certain
range. In order to limit this range to the necessary
minimum, it is imperative to use the supplied
positioning templates. There are two different
variants: fixed clamping (shown) and loose
clamping. We recommend you to insert the fixed
clamping variant at the front left and the loose
clamping variant at the rear right.
WARNING
40
The minimum screw-in depth of the platform stands is always 25mm!
When lowering the vehicle and especially when inserting the insertion
templates, pay attention to the increased crush hazard due to possible
unforeseeable movements of the still freely moving vehicle.
