8.2.7 Adjusting the camber sensors (inclinometer)
The camber sensor is calibrated and adjusted upon delivery. It is recommended to check
it at regular intervals (especially if the ambient conditions change) and to adjust the zero
point if necessary.
A calibration frame is supplied with the system for adjusting the zero point. This is placed
on top of the measuring platform so that the two alignment pins slide into the holes provided
for this purpose. Please make sure that the magnets are free of metal chips for correct
positioning and that the frame rests evenly on the platform. The sensor is then inserted into
the calibration frame. Observe the alignment of the sensor. The spring-loaded pressure
pads of the sensor must point downward in the direction of the platform.

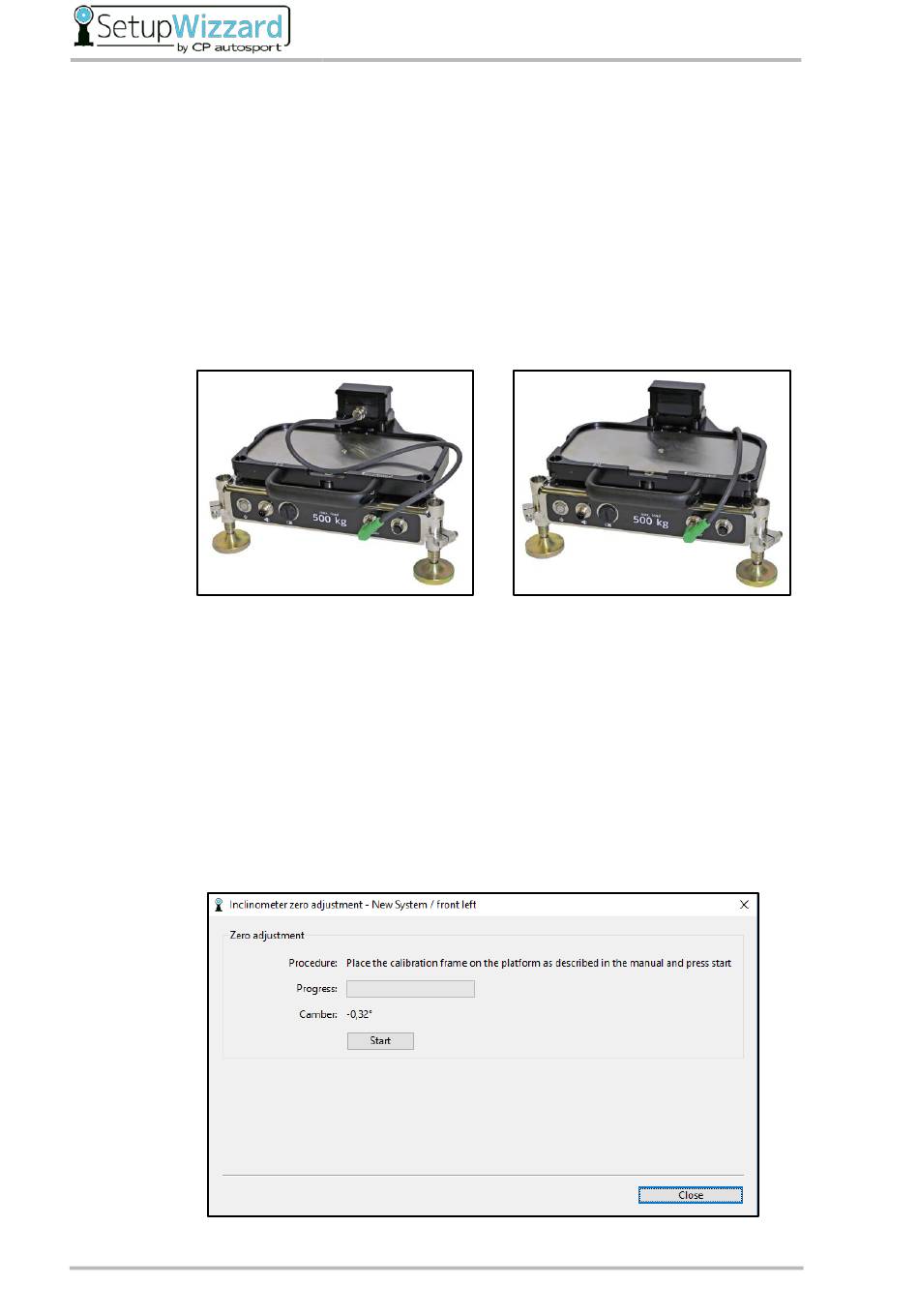

Platform calibration frame and
camber sensor (inclinometer)
Now start the SetupWizzard software to continue with the adjustment of the inclinometer.
After connecting the platforms to the netbook, the display value of the inclinometer should
first be adjusted to the real conditions; if the display value is sufficiently accurate, further
adjustment is not necessary. The easiest way to do this is with the calibration frame on the
leveled platform, here the inclinometer should now show "0 °" accordingly. If this is not the
case, an adjustment is required.
If an adjustment is necessary, select the inclinometer to be adjusted in the menu item
„Adjustment" - „Inclinometer". Again, pay attention to the designation of the vehicle corner.
The following pop-up window opens:
44
Platform with calibration frame and
camber sensor rotated 180°
