Optionally, it is possible to order a vehicle-specific scale for the toe measuring modules in
the accessories. Alternatively, you can also compare the standard millimeter measurement
values with the following formulas using conventional measuring methods:

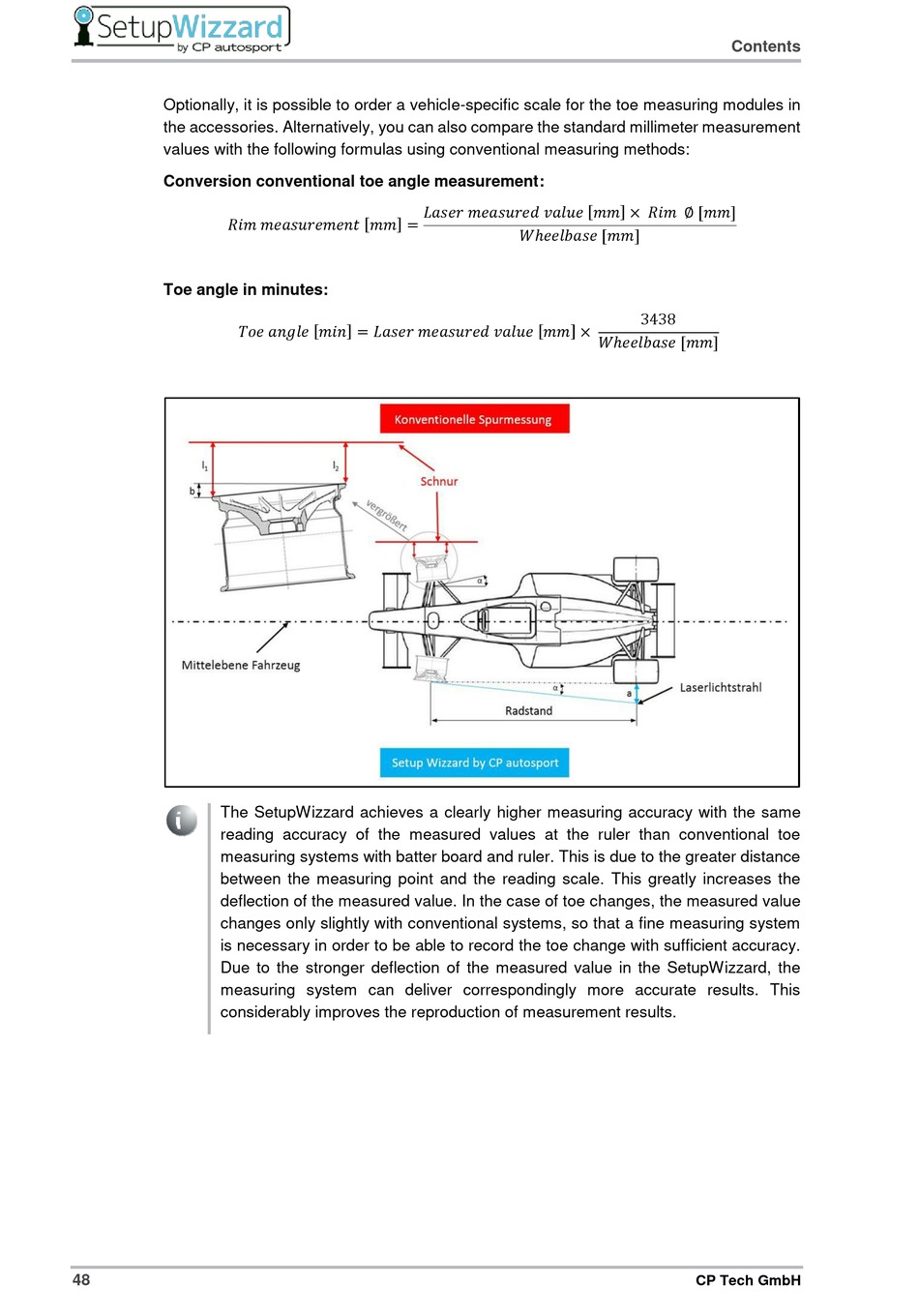

Conversion conventional toe angle measurement:
��
Toe angle in minutes:
�
The SetupWizzard achieves a clearly higher measuring accuracy with the same
reading accuracy of the measured values at the ruler than conventional toe
measuring systems with batter board and ruler. This is due to the greater distance
between the measuring point and the reading scale. This greatly increases the
deflection of the measured value. In the case of toe changes, the measured value
changes only slightly with conventional systems, so that a fine measuring system
is necessary in order to be able to record the toe change with sufficient accuracy.
Due to the stronger deflection of the measured value in the SetupWizzard, the
measuring system can deliver correspondingly more accurate results. This
considerably improves the reproduction of measurement results.
48
�
[ ] =
[ � ] = �
�
[ ] × �� ∅ [
�ℎ [ ]
8
[ ] ×
�ℎ [
