WARNING
The wheel offset (position of the ball caster) can also be adjusted using shims (5mm,
10mm, and 20mm) and two slotted holes. In this case, the shims are installed between the
setup wheel and the universal stand.

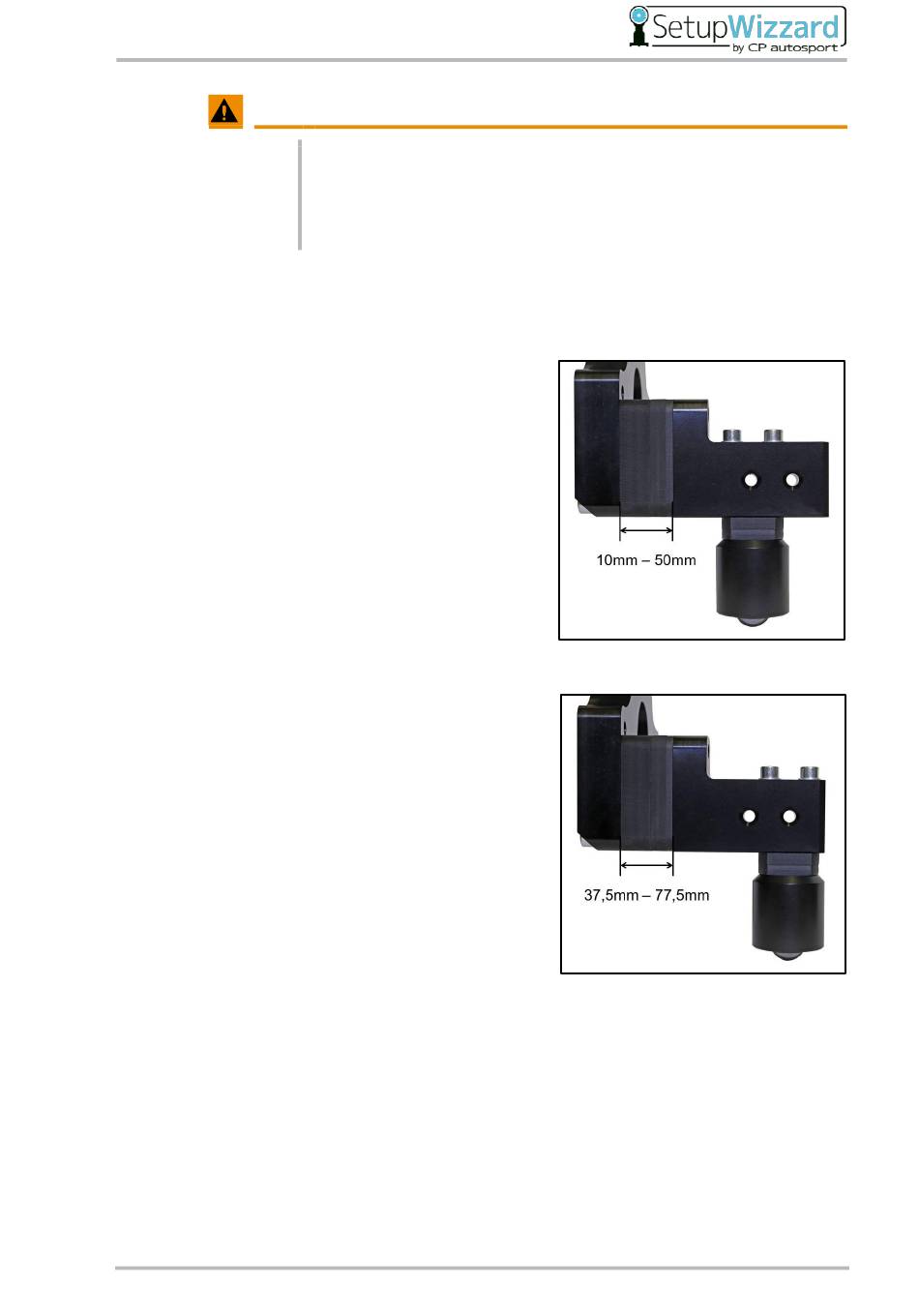

The first position of the ball caster covers the
adjustment range of 10-50mm.
The second position of the ball caster covers the
adjustment range of 37.5-77.5mm.
Wheel alignment system SetupWizzard
Observe the tightening torques and screw-in depths depending on the
shim package:
–
M8: 35Nm; min. 12mm / max. 16mm
–
M10: 65Nm; min. 15mm / max. 20mm
Ball caster position A
Ball caster position B
