Making Electrical Connections; Making Channel Connections; Series 1 Back Panel - GE Moisture Image Series 1 Startup Manual

June 2004
Making Electrical
Connections
Making Channel
Connections
1-18
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
To ensure the safe operation of this unit, you must
install and operate the Series 1 as described in this
user's manual. In addition, be sure to follow all
applicable safety codes and regulations for
installing electrical equipment in your area.
Turn off the Series 1 before making any connections.
Make all connections to the back of the meter (see Figure 1-8 below).
The larger panel is separated into six sections, one for each channel.
Make connections by placing the press-lock lever into the desired
terminal. One press-lock lever is supplied with each terminal block.
Press and hold the lever against the terminal block and insert the
stripped and tinned portion of the wire into the terminal. Release the
lever to secure the connection.
IMPORTANT: To maintain good contact at each terminal block and
to avoid damaging the pins on the connector, pull the
connector straight off (not at an angle), make cable
connections while the connector is away from the
unit, and push the connector straight on (not at an
angle) when the wiring is complete.
Proper connections and cabling are extremely important to accurate
measurement. Use the correct cable type for each probe and make
sure the cables are not damaged during installation. If the cable being
used is not a GE Panametrics-supplied cable or is a modified cable,
see Installing Optional Features in Chapter 1 of the Service Manual.
See the sections which follow for specific connections.

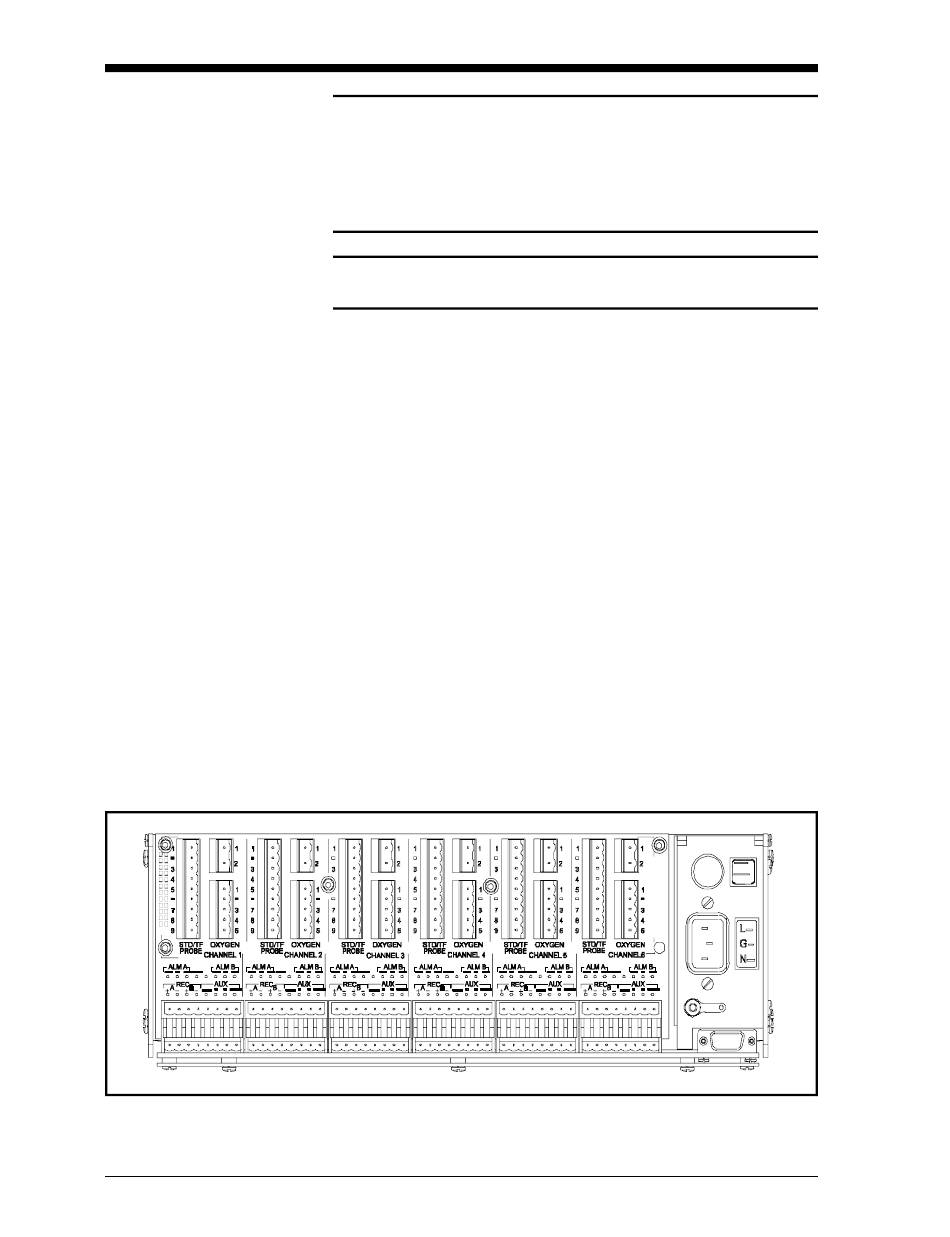

Figure 1-8: Series 1 Back Panel
!WARNING!
!WARNING!
1 2
2 5 0
3
Installation
