The screen displays measurements, up to four menu options, system
messages, and a pointer. The pointer acts as a measurement
indicator, as well as a guide during data entry.
While the meter displays measurements in the matrix format, the
pointer moves sequentially from box to box to indicate measurement
updates. However, while in the user program, you can use the arrow
keys to move the pointer to the desired location for data entry.
The menu options appear at the bottom of the screen. Below the
screen are the corresponding menu keys (refer to Figure 2-3). Each
menu key corresponds to each of the menu options in the user
program. Up to four new menu options appear each time you enter a
menu.
The line above the menu options is the message line (see Figure 2-3).
The message line displays the menu title, the time, and the date. The
message line also displays a list of selections depending on the menu
option you enter.
The page indicator is located in between the message line and the
menu keys. Since the meter is capable of displaying up to six pages of
data, the page indicator displays the currently selected page.
Message Line
Main Menu
HELP SELECT SETTINGS
Menu Options

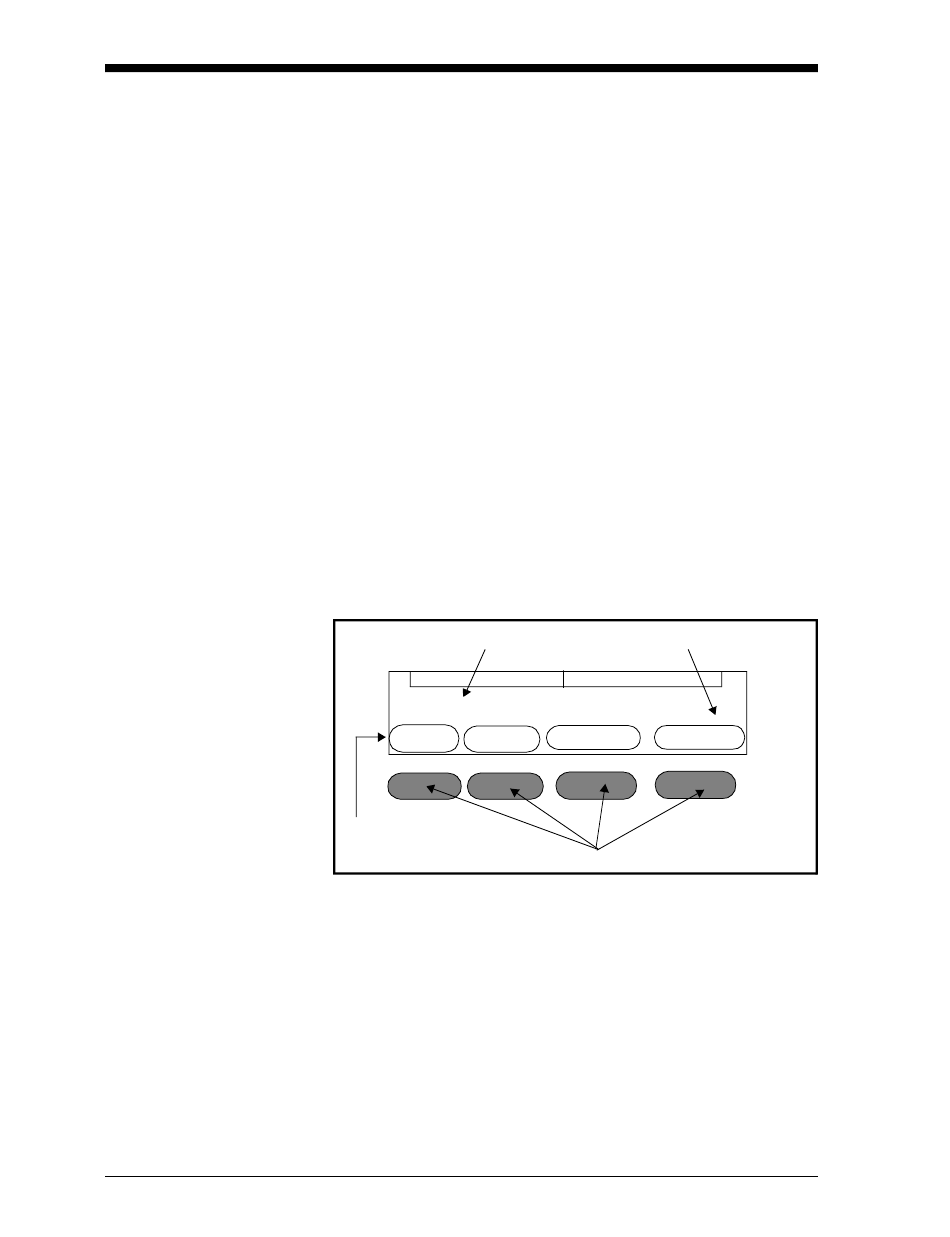

Figure 2-3: Screen Components
Page Indicator
11:35 01/22/2000
pg: 1
OPTIONS
Menu Keys
Initial Setup
