Establishing a Gas
Flow Through the
Oxygen Cell (cont.)
Optimum Inlet
Pressure Limits
0.2 – 1.0 psig
Sample
Gas In
Relief
Valve
Assembly
1-34
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Slowly open the flow control valve until the recommended flow of
2 to 2.5 SCFH is established on the flow meter.
When the proper flow is achieved, make sure the relief valve is closed
by placing an object (e.g., your finger, if the gas is non-corrosive)
over the relief valve vent. Cover and uncover the relief valve vent and
verify that the flow meter shows no change in the flow rate. Keep the
relief valve closed during operation to minimize leakage in the
sample system.
Flow Control Electrolyte
Valve Reservoir
In
Tee
Oxygen Cell
Out
Vent
Sample Gas Outlet and Relief Valve
should vent to atmosphere.

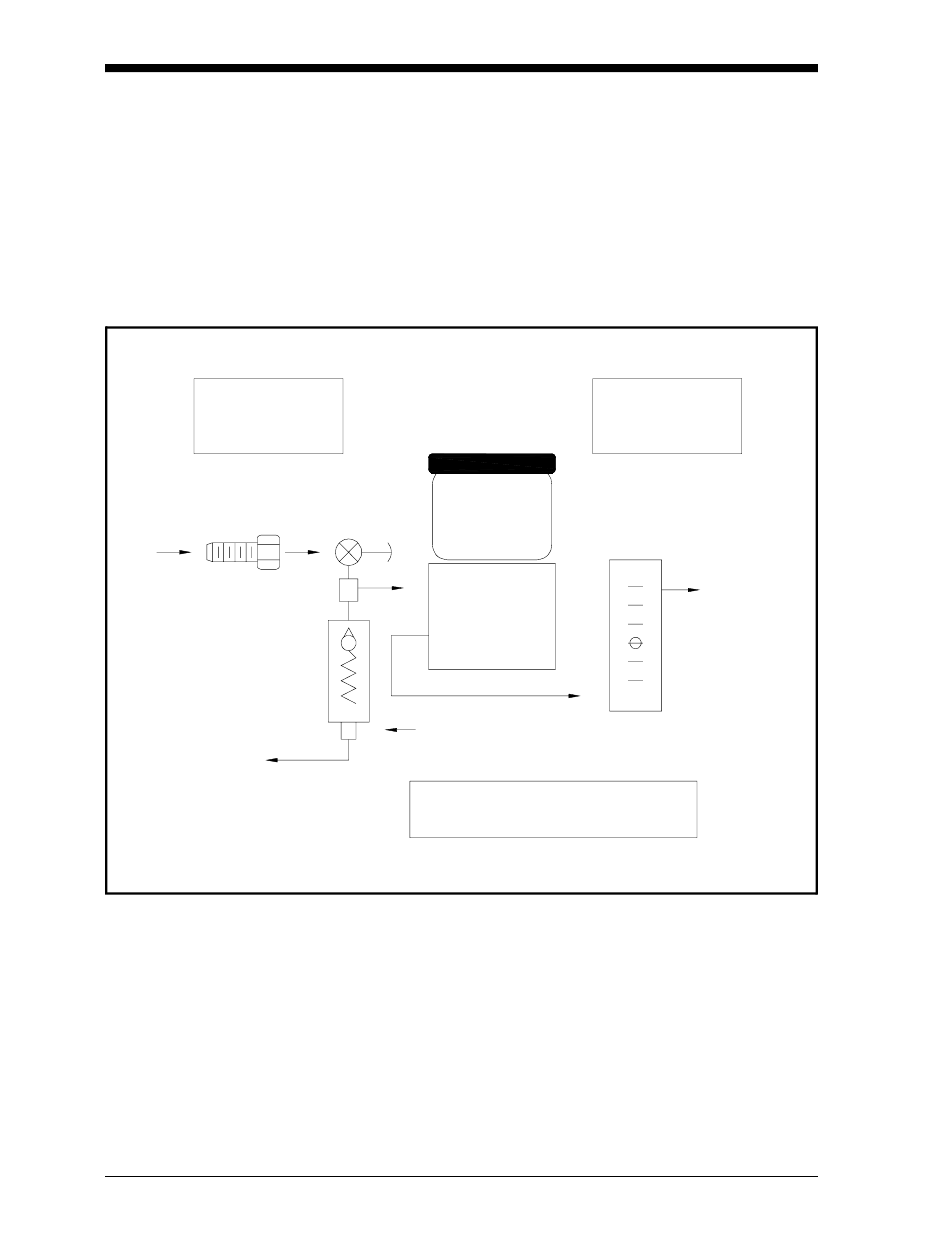

Figure 1-21: Gas Flow Schematic
Optimum Sample
Flow Range
2.0 – 2.5 SCFH
Sample
Gas Out
Flowmeter
