BUCK AND BUCK BOOST SETTINGS

In the BUCK & BCKBST Control tab shown in Figure 12,
users can program the buck regulator mode selection (BUCK_
MODE), soft start time (BUCK_SS), and output voltage (VOUT_
BUCK) in the Buck Setting section located on the top left.
Program the buck boost soft start time (BUCKBST_SS) and
output voltage (VOUT_BUCKBST) in the Buck Boost Setting
section located in the top middle of the GUI (see Figure 12).
Program the power supervisory parameter (RESET_TIME) in
the Supervisory Setting section located on the bottom left of
the GUI (see Figure 12).

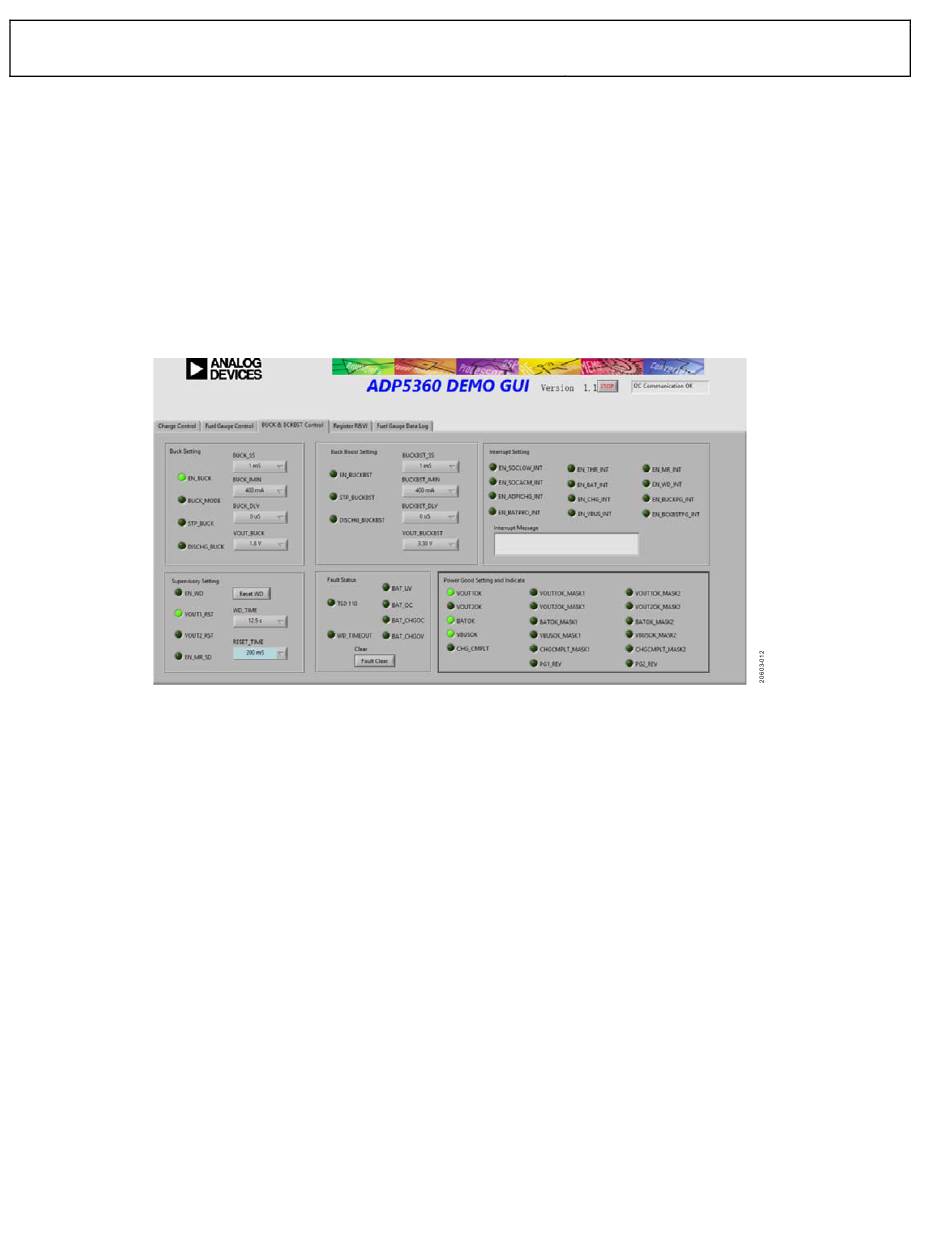

Figure 12. ADP5360 GUI Software, Buck & BCKBST Control Tab
Rev. 0 | Page 8 of 18
ADP5360CB-EVALZ
To clear a fault, if a fault occurs and any of the fault bits are
high as indicated in the Fault Status section (see Figure 12),
verify that the open fault is cleared on the evaluation board and
then click the Fault Clear button in the Fault Status section.
Select the interrupt event in the Interrupt Setting section
located in the top right of the GUI (see Figure 12). If an interrupt
occurs, information about the occurred interrupt appears in red
in the Interrupt Message indication and blinks for 5 sec.
In addition, the power-good indications and mask control
settings are located in the Power Good Setting and Indicate box.
