ADP5360CB-EVALZ
INSTALLING THE SOFTWARE
The
ADP5360 GUI Tool Software
features of the program registers.
Before starting the software installation, ensure that the
ADP5360CB-EVALZ evaluation board is not connected to the
USB PC port.
INSTALLING LabVIEW
If the PC already has LabVIEW™ installed, this step is not required.
The application software is a compiled LabVIEW program, which
requires LabVIEW 8.5 or later and a run-time engine installed
on the PC. Download the LabVIEW runtime engine from the
National Instruments™ website.
INSTALLING THE
ADP5360
After installation, it may be necessary to reboot the PC if the
software is not working to complete the operation.
1.
Launch the Setup.exe file, which is downloaded from the
ADP5360CB-EVALZ
product page. After the file has been
launched, the dialog box shown in Figure 2 appears.

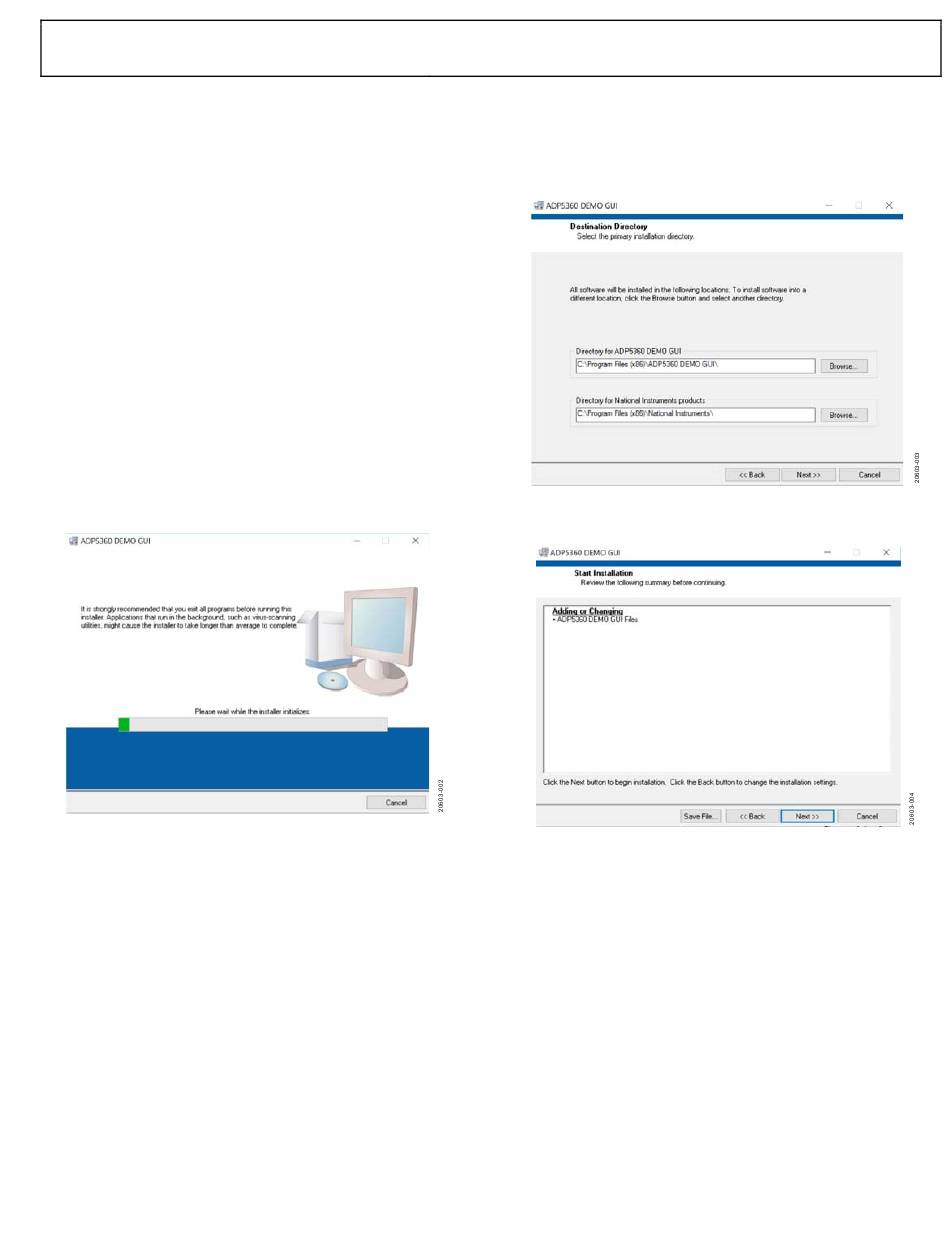

Figure 2.
ADP5360
User Guide
evaluates all functions and
GUI SOFTWARE
Evaluation Software Setup
2.
Click the Next button to install the software to the default
destination folder or click the Browse... button to choose a
different file (see Figure 3).
3.
Click the Next >> button to install the program (see Figure 4).
Rev. 0 | Page 3 of 18
Figure 3. Choose Destination Location
Figure 4. Select Program Folder
UG-1571
