DIRECT REGISTER WRITE AND READ

Users can read and write the contents of each register using the
Register R&W tab shown in Figure 13. Clicking the Read All
Registers button updates the content of each register to the
GUI. Use the buttons and text fields in the Read/Write a Single
Register section to initiate a single register read or write. Enter
the register address in the Register Address box. Then, either
click the Read button to read the binary data or click the Write
button to write the binary data. Some registers, such as Register
0x00 and Register 0x01, are read only registers and cannot be
overwritten.
User Guide

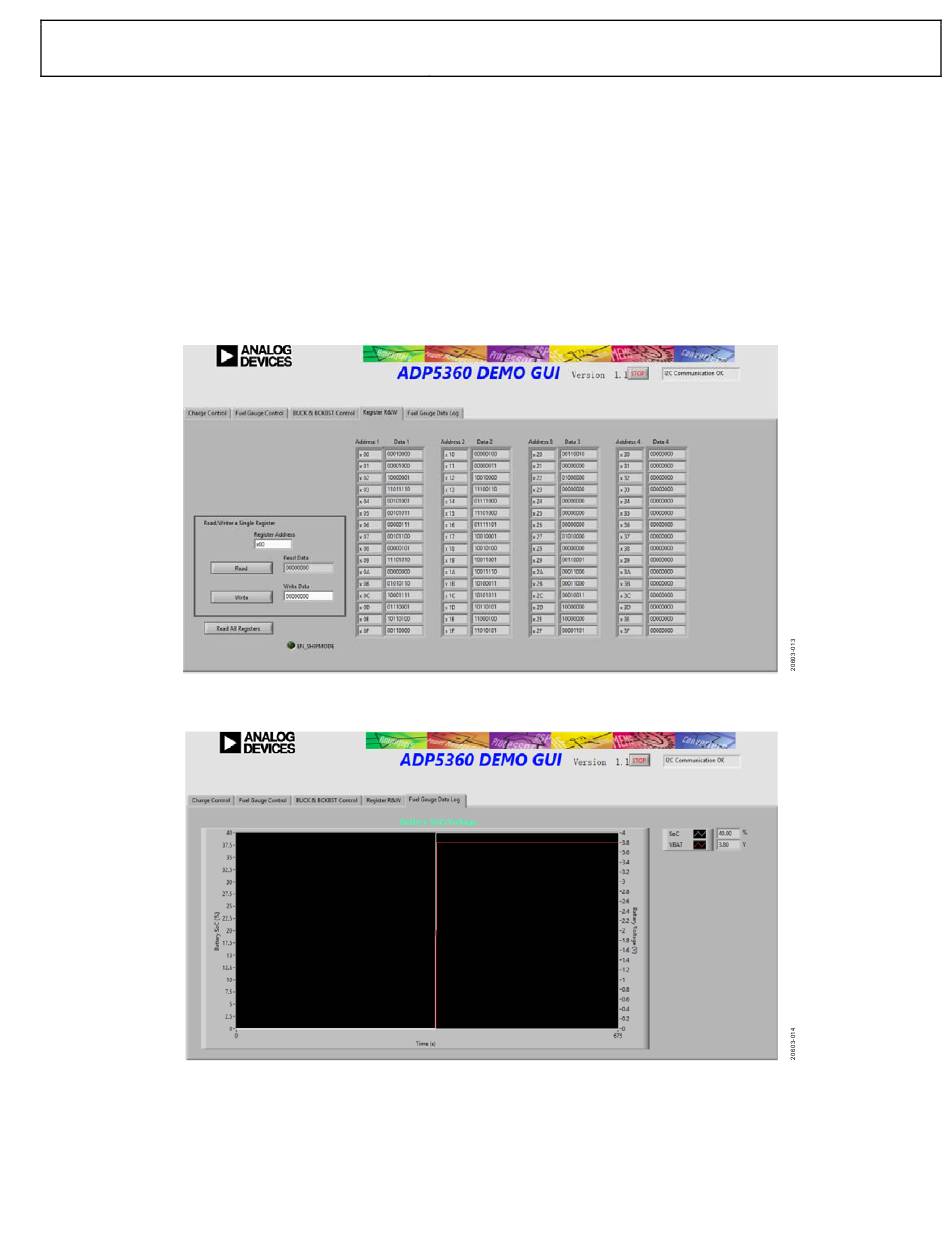

Figure 13. ADP5360
Figure 14. ADP5360

FUEL GAUGE DATA LOG

In the Fuel Gauge Data Log tab, the data for the battery voltage
and SOC updates in the Battery SoC/Voltage graph every 1 sec
(see Figure 14).
GUI Software, Register R&W Tab
GUI Software, Fuel Gauge Data Log Tab
