BATTERY FUEL GAUGE SETTINGS
Program the battery state of charge (SoC) curve with the proper
voltage from battery characterization or the default setting in
the Battery SoC % section. This section is located in the Fuel
Gauge Control tab (see Figure 11). Enter all battery characteriza-
tion data, then click the Program SoC Curve button to write all
data to the ADP5360. The GUI then updates the Battery SoC
User Guide
Figure 11.
ADP5360
Curve graph. Other battery parameters in the GUI include the
BAT_CAP, BATCAP_TEMP, and BATCAP_AGE. Sleep mode
related setting options, such as SLP_CURR and SCP_TIME, are
selected in the bottom left of the Fuel Gauge Control tab as well.
The Battery SoC %, Battery Voltage (V), and BAT_SOCACM %
values are read in the tab in Figure 11.

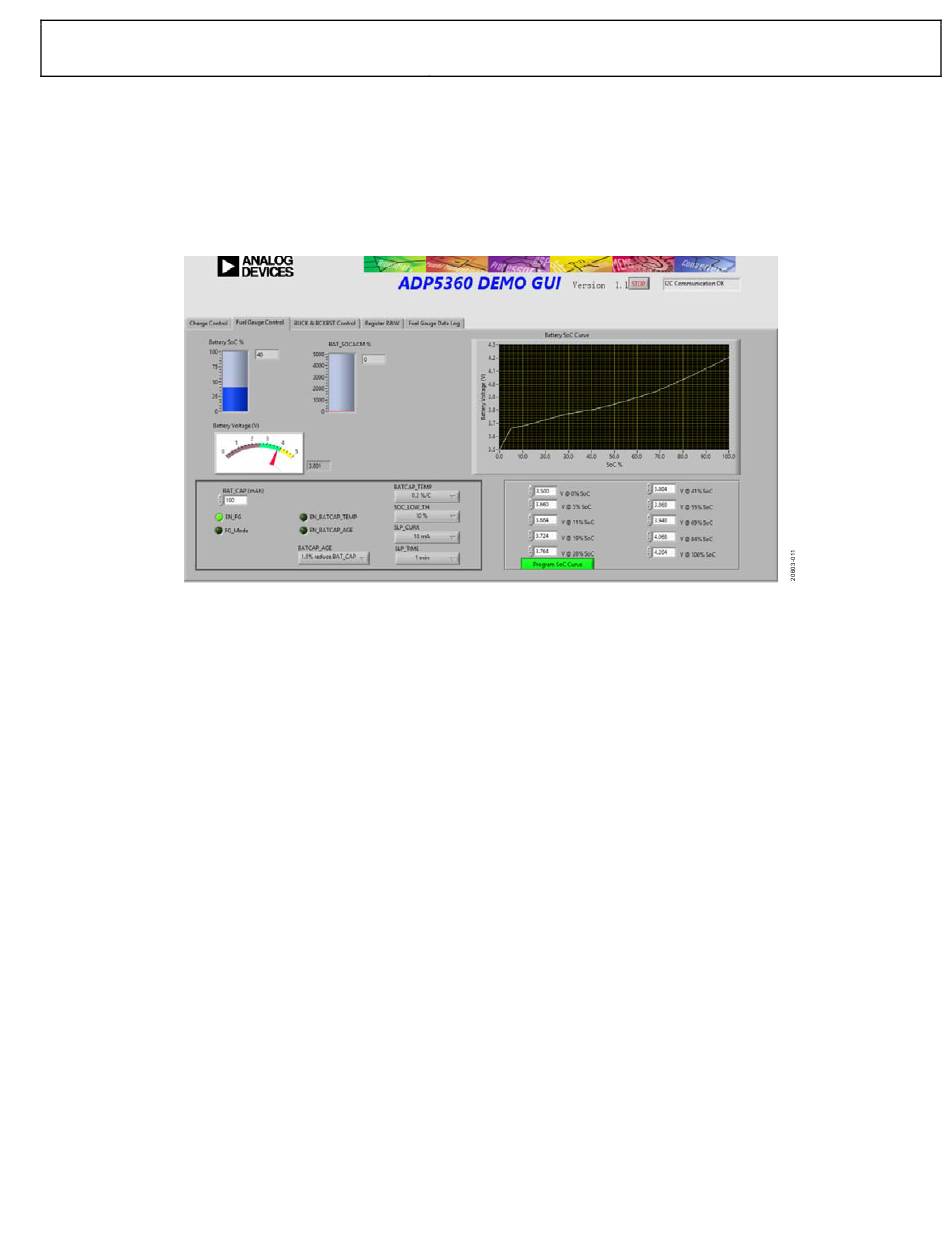

GUI Software, Fuel Gauge Control Tab
