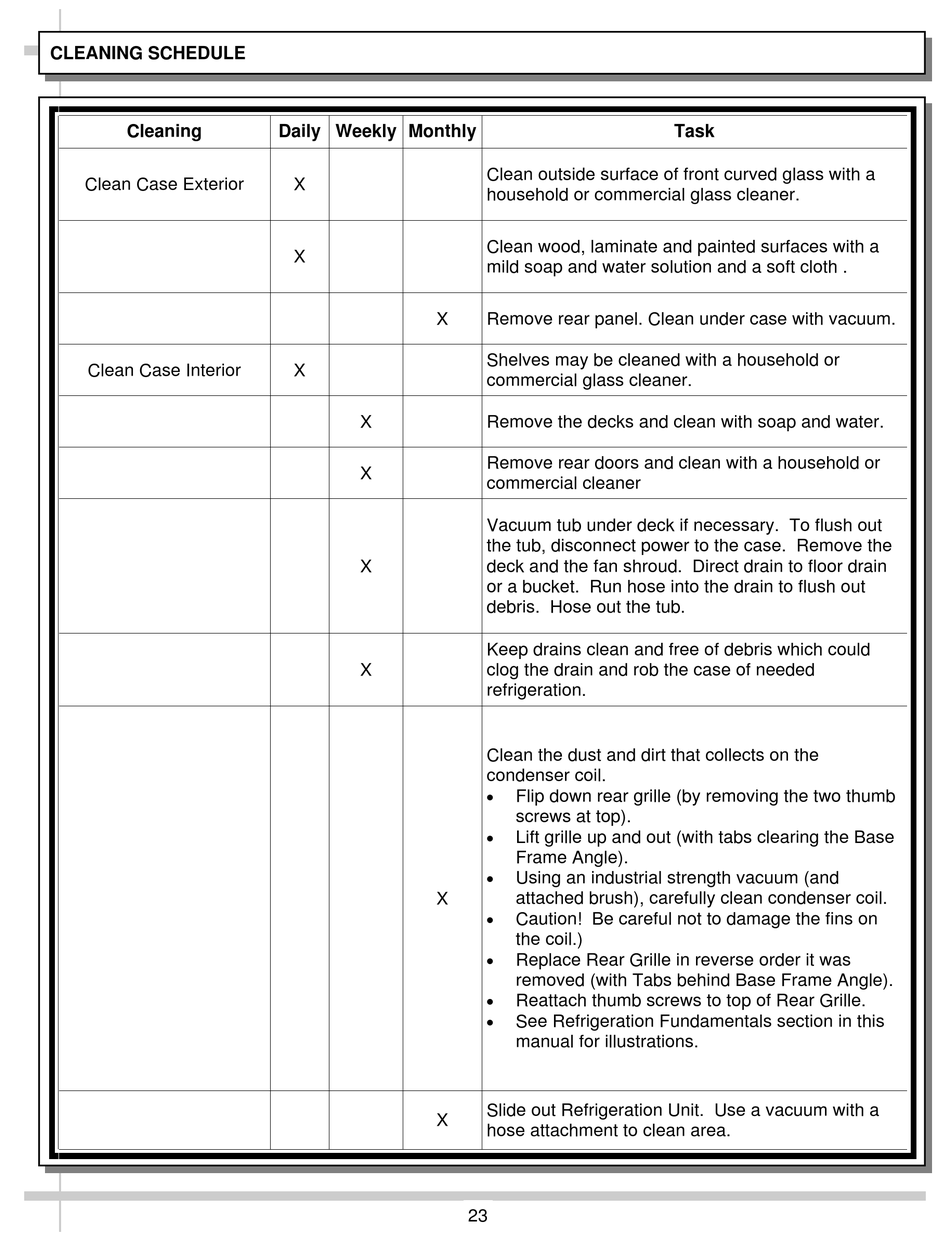

CLEANING SCHEDULE

Cleaning
Clean Case Exterior
Clean Case Interior
Daily Weekly Monthly
X
X
X
X
X
X
X
X
X
X
Clean outside surface of front curved glass with a
household or commercial glass cleaner.
Clean wood, laminate and painted surfaces with a
mild soap and water solution and a soft cloth .
Remove rear panel. Clean under case with vacuum.
Shelves may be cleaned with a household or
commercial glass cleaner.
Remove the decks and clean with soap and water.
Remove rear doors and clean with a household or
commercial cleaner
Vacuum tub under deck if necessary. To flush out
the tub, disconnect power to the case. Remove the
deck and the fan shroud. Direct drain to floor drain
or a bucket. Run hose into the drain to flush out
debris. Hose out the tub.
Keep drains clean and free of debris which could
clog the drain and rob the case of needed
refrigeration.
Clean the dust and dirt that collects on the
condenser coil.

Flip down rear grille (by removing the two thumb
screws at top).

Lift grille up and out (with tabs clearing the Base
Frame Angle).

Using an industrial strength vacuum (and
attached brush), carefully clean condenser coil.

Caution! Be careful not to damage the fins on
the coil.)

Replace Rear Grille in reverse order it was
removed (with Tabs behind Base Frame Angle).

Reattach thumb screws to top of Rear Grille.

See Refrigeration Fundamentals section in this
manual for illustrations.
Slide out Refrigeration Unit. Use a vacuum with a
hose attachment to clean area.
23
