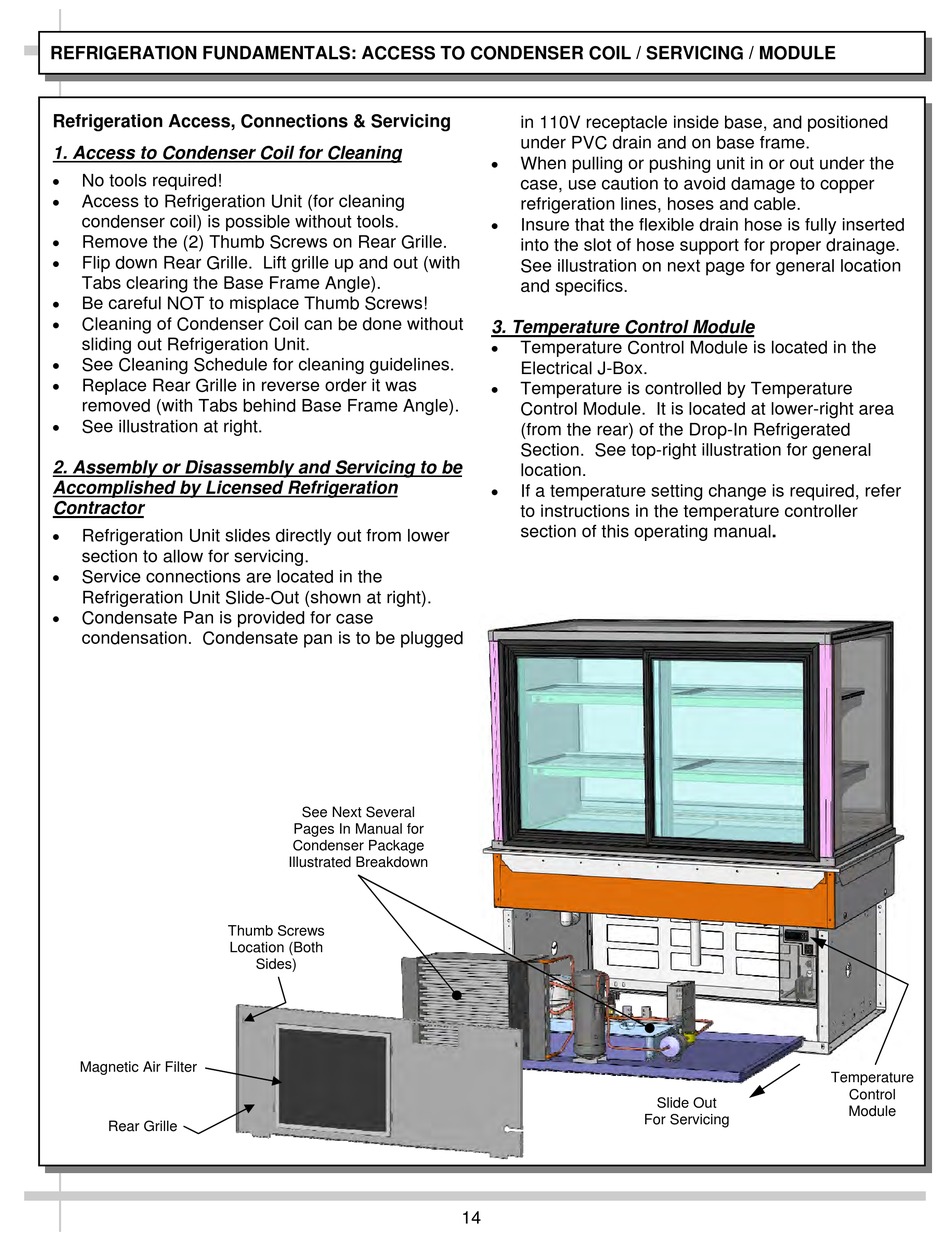

REFRIGERATION FUNDAMENTALS: ACCESS TO CONDENSER COIL / SERVICING / MODULE
Refrigeration Access, Connections & Servicing
1. Access to Condenser Coil for Cleaning

No tools required!

Access to Refrigeration Unit (for cleaning
condenser coil) is possible without tools.

Remove the (2) Thumb Screws on Rear Grille.

Flip down Rear Grille. Lift grille up and out (with
Tabs clearing the Base Frame Angle).

Be careful NOT to misplace Thumb Screws!

Cleaning of Condenser Coil can be done without
sliding out Refrigeration Unit.

See Cleaning Schedule for cleaning guidelines.

Replace Rear Grille in reverse order it was
removed (with Tabs behind Base Frame Angle).

See illustration at right.
2. Assembly or Disassembly and Servicing to be
Accomplished by Licensed Refrigeration
Contractor

Refrigeration Unit slides directly out from lower
section to allow for servicing.

Service connections are located in the
Refrigeration Unit Slide-Out (shown at right).

Condensate Pan is provided for case
condensation. Condensate pan is to be plugged
Thumb Screws
Location (Both
Magnetic Air Filter
Rear Grille
See Next Several
Pages In Manual for
Condenser Package
Illustrated Breakdown
Sides)
in 110V receptacle inside base, and positioned
under PVC drain and on base frame.

When pulling or pushing unit in or out under the
case, use caution to avoid damage to copper
refrigeration lines, hoses and cable.

Insure that the flexible drain hose is fully inserted
into the slot of hose support for proper drainage.
See illustration on next page for general location
and specifics.

3. Temperature Control Module


Temperature Control Module is located in the
Electrical J-Box.

Temperature is controlled by Temperature
Control Module. It is located at lower-right area
(from the rear) of the Drop-In Refrigerated
Section. See top-right illustration for general
location.

If a temperature setting change is required, refer
to instructions in the temperature controller
section of this operating manual.
14
Slide Out
For Servicing
Temperature
Control
Module
