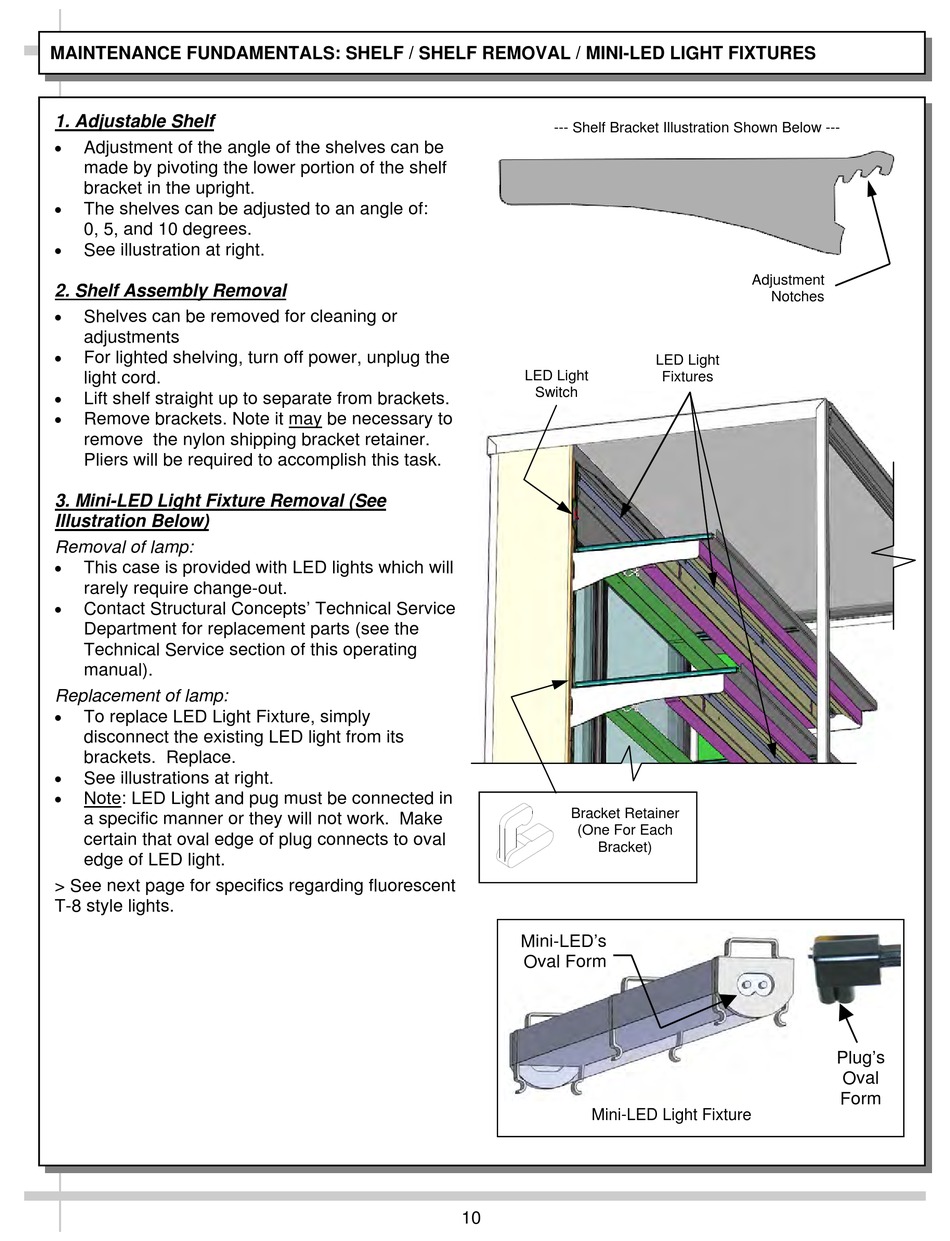

MAINTENANCE FUNDAMENTALS: SHELF / SHELF REMOVAL / MINI-LED LIGHT FIXTURES

1. Adjustable Shelf

Adjustment of the angle of the shelves can be
made by pivoting the lower portion of the shelf
bracket in the upright.

The shelves can be adjusted to an angle of:
0, 5, and 10 degrees.

See illustration at right.
2. Shelf Assembly Removal

Shelves can be removed for cleaning or
adjustments

For lighted shelving, turn off power, unplug the
light cord.

Lift shelf straight up to separate from brackets.

Remove brackets. Note it may be necessary to
remove the nylon shipping bracket retainer.
Pliers will be required to accomplish this task.
3. Mini-LED Light Fixture Removal (See
Illustration Below)
Removal of lamp:

This case is provided with LED lights which will
rarely require change-out.

Contact Structural Concepts' Technical Service
Department for replacement parts (see the
Technical Service section of this operating
manual).
Replacement of lamp:

To replace LED Light Fixture, simply
disconnect the existing LED light from its
brackets. Replace.

See illustrations at right.

Note: LED Light and pug must be connected in
a specific manner or they will not work. Make
certain that oval edge of plug connects to oval
edge of LED light.
> See next page for specifics regarding fluorescent
T-8 style lights.
--- Shelf Bracket Illustration Shown Below ---
LED Light
Switch
Bracket Retainer
(One For Each
Bracket)
Mini-LED's
Oval Form
Mini-LED Light Fixture
10
Adjustment
Notches
LED Light
Fixtures
Plug's
Oval
Form
