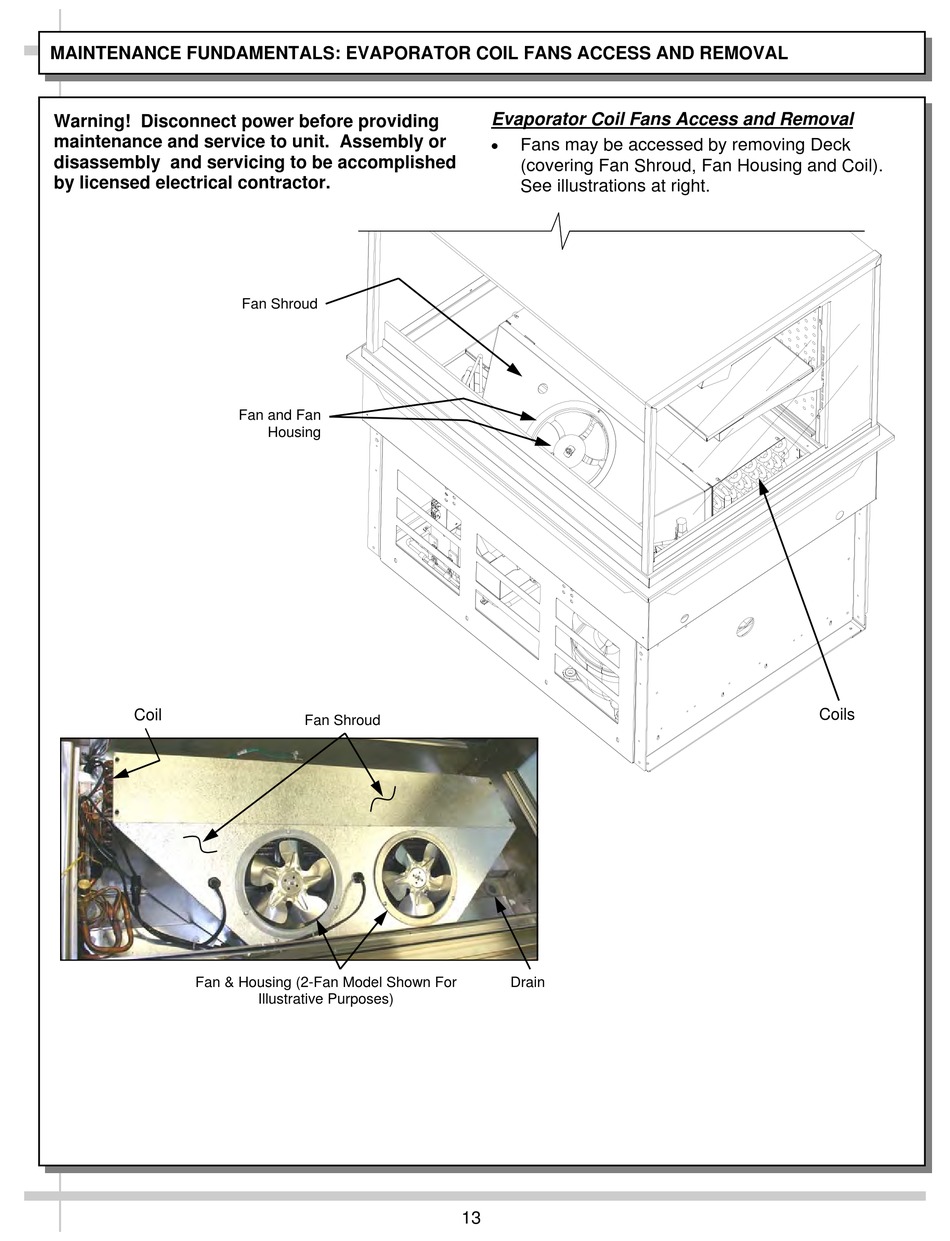

MAINTENANCE FUNDAMENTALS: EVAPORATOR COIL FANS ACCESS AND REMOVAL
Warning! Disconnect power before providing
maintenance and service to unit. Assembly or
disassembly and servicing to be accomplished
by licensed electrical contractor.
Coil
Fan & Housing (2-Fan Model Shown For
Fan Shroud
Fan and Fan
Housing
Fan Shroud
Illustrative Purposes)
Evaporator Coil Fans Access and Removal
Fans may be accessed by removing Deck
(covering Fan Shroud, Fan Housing and Coil).
See illustrations at right.
Drain
13
Coils
