Clearance And Air Flow - Structural Concepts Impulse Series Installation & Operating Manual

CLEARANCE AND AIR FLOW

Service Top Cutout Dimensions
Note: See Manual Cover for Service Top Cutout
Dimensions.
Clearance Dimensions
The Refrigerated section must maintain airflow clearance.
Dimensions are as follow.
1. 4" Minimum Spacing from bottom of refrigeration frame
to bottom of cabinet or floor required for adequate air flow.
2. 9 1/2" Countertop / Facia enclosure space on cabinets
or counter to allow for pullout system slide-out.
3. 15" Minimum opening in back of cabinet or counter
9 1/2" (SEE
NOTE 2)
(to pull out refrigeration system).
4. Back of counter / cabinet ventilation must be at specific
space to allow for proper air intake and exhaust. See

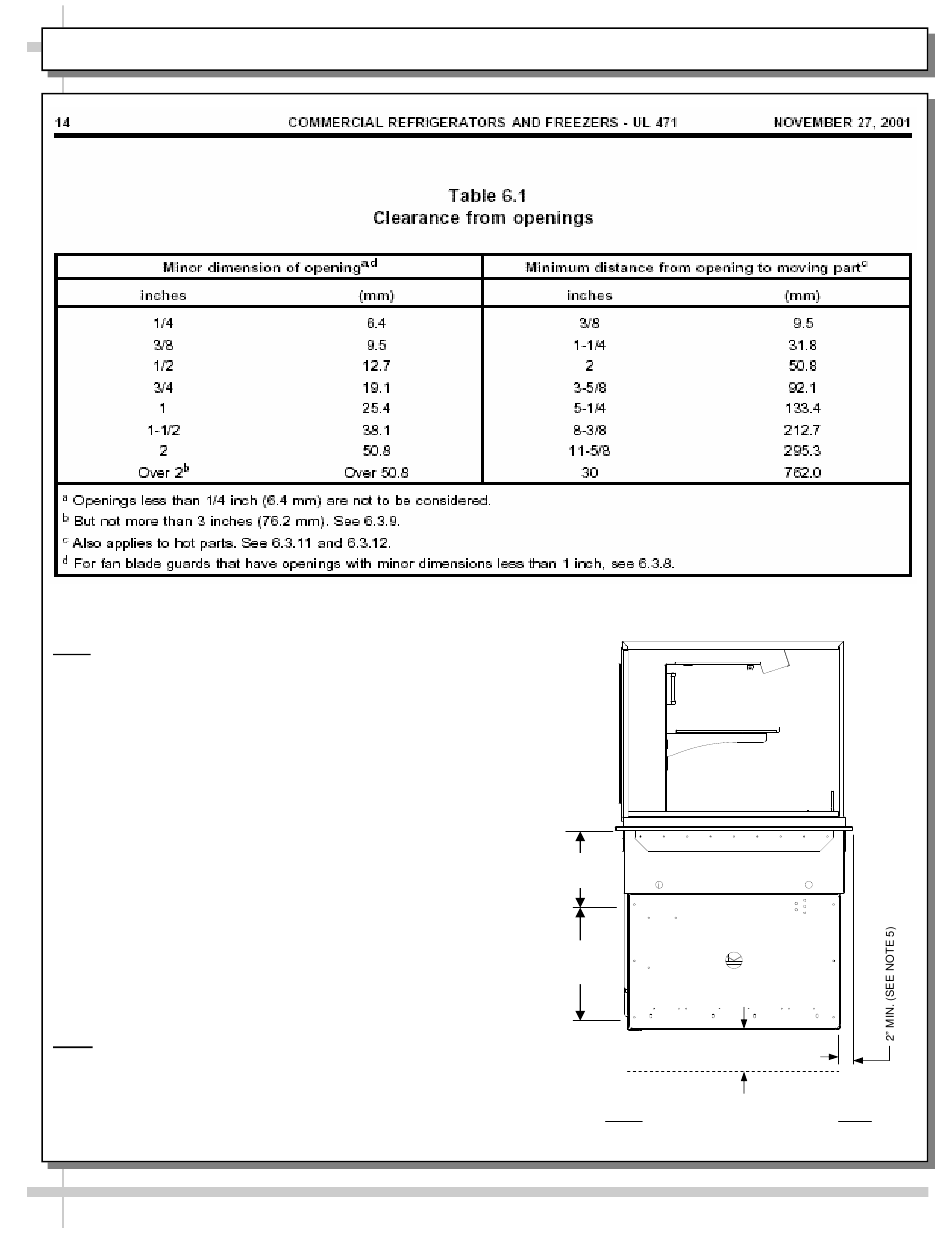

illustration at right.
15"
5. Front of counter ventilation must be at least 2" to allow
(SEE NOTES
3 & 4)
proper air intake and exhaust. See illustration at right.
6. Obstruction or restriction of air can void warranty.
Note: See Venting Instructions sections (next page)
4" (SEE NOTE 1)
for more specific air Intake and air exhaust clearance
dimensions.
ABOVE ILLUSTRATION APPLIES
TO ALL MODELS
