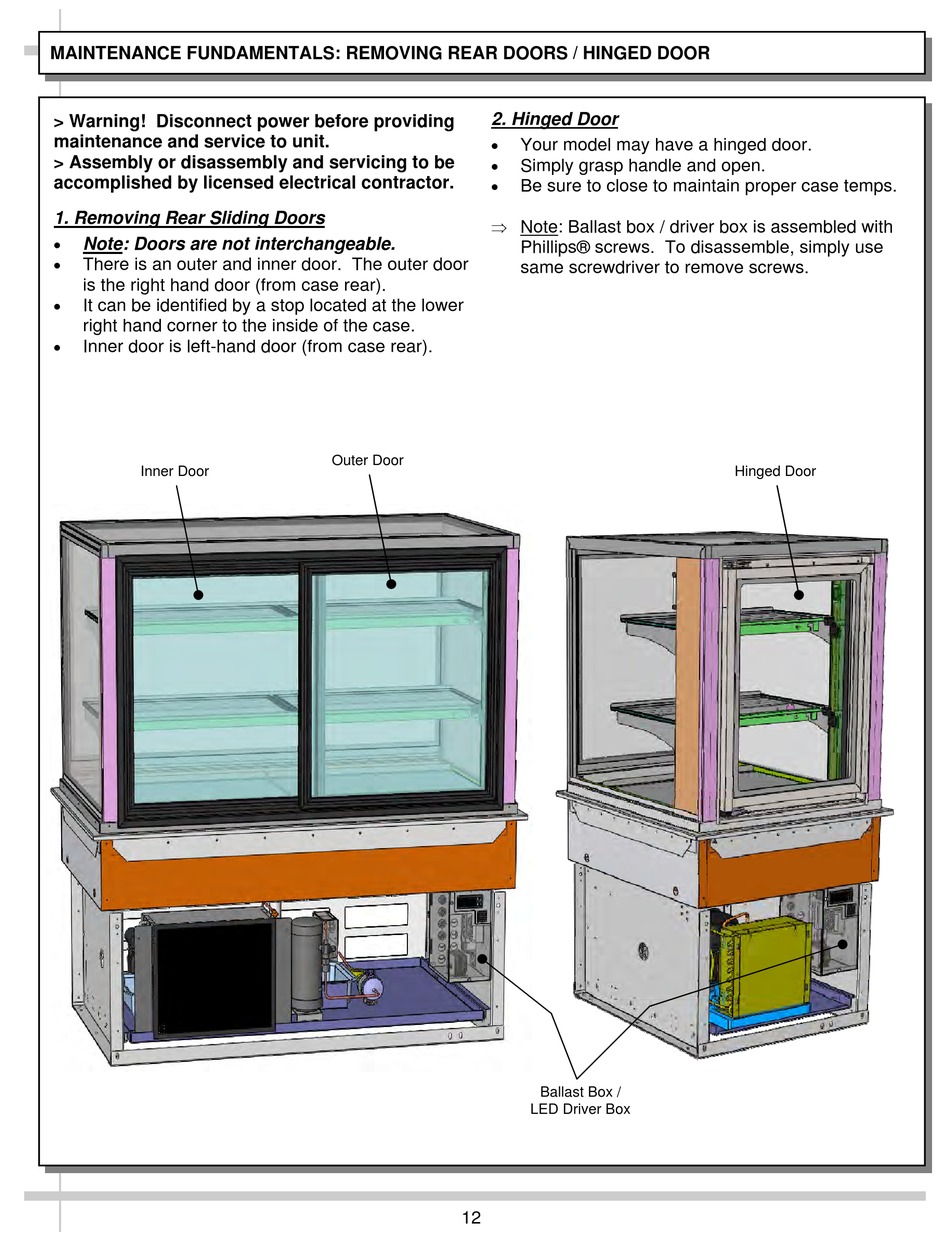

MAINTENANCE FUNDAMENTALS: REMOVING REAR DOORS / HINGED DOOR

> Warning! Disconnect power before providing
maintenance and service to unit.
> Assembly or disassembly and servicing to be
accomplished by licensed electrical contractor.
1. Removing Rear Sliding Doors

Note: Doors are not interchangeable.

There is an outer and inner door. The outer door
is the right hand door (from case rear).

It can be identified by a stop located at the lower
right hand corner to the inside of the case.

Inner door is left-hand door (from case rear).
Inner Door
2. Hinged Door




Outer Door
12
Your model may have a hinged door.
Simply grasp handle and open.
Be sure to close to maintain proper case temps.
Note: Ballast box / driver box is assembled with
Phillips® screws. To disassemble, simply use
same screwdriver to remove screws.
Ballast Box /
LED Driver Box
Hinged Door
