Simons Voss Technologies VdS Block lock Manual page 45

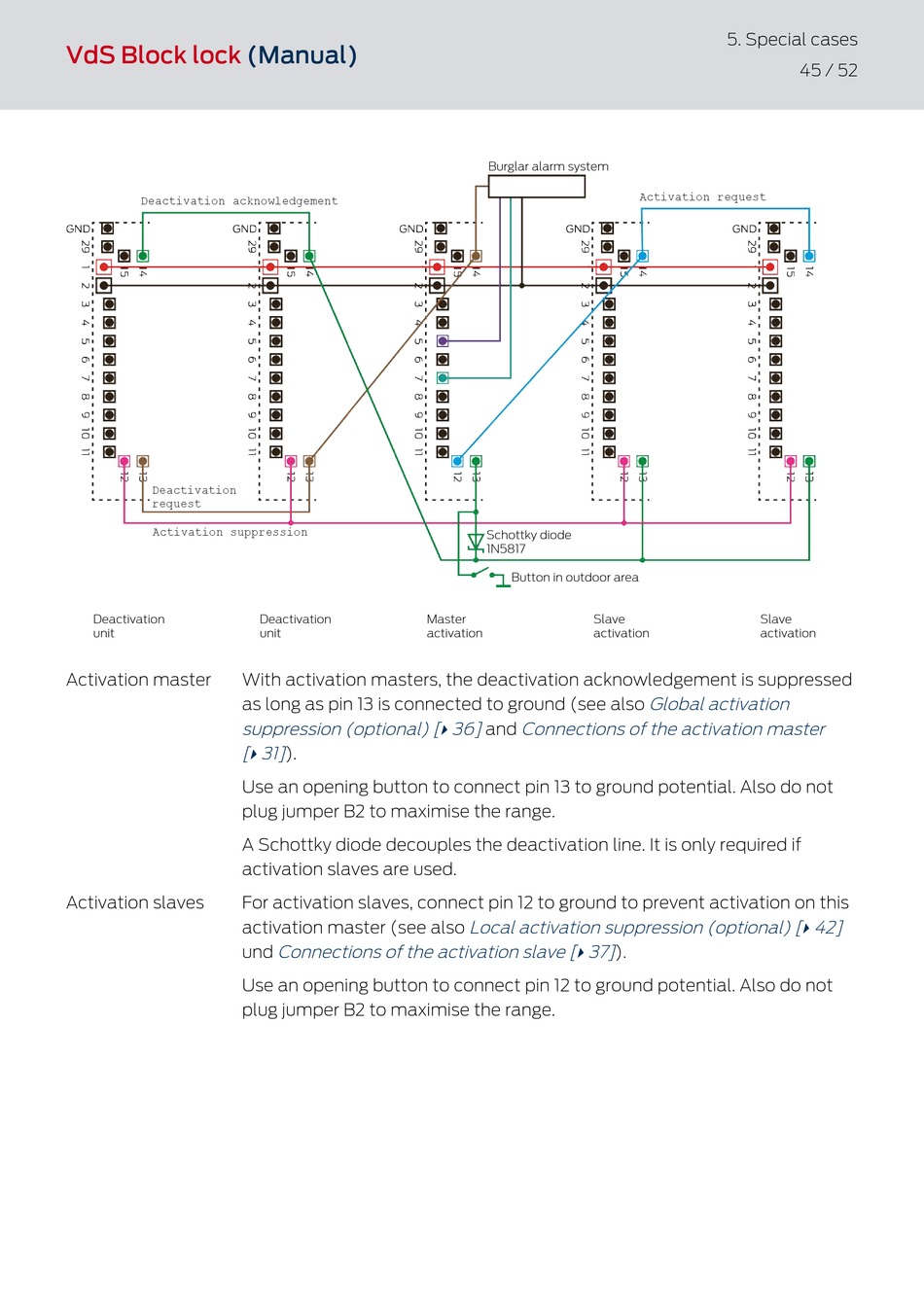

VdS Block lock
Deactivation acknowledgement
Deactivation
request
Activation suppression
Deactivation
unit
Activation master
Activation slaves
(Manual)
Deactivation
unit
With activation masters, the deactivation acknowledgement is suppressed
as long as pin 13 is connected to ground (see also
suppression (optional) [
[ 31]
).
}
Use an opening button to connect pin 13 to ground potential. Also do not
plug jumper B2 to maximise the range.
A Schottky diode decouples the deactivation line. It is only required if
activation slaves are used.
For activation slaves, connect pin 12 to ground to prevent activation on this
activation master (see also
und Connections of the activation slave [
Use an opening button to connect pin 12 to ground potential. Also do not
plug jumper B2 to maximise the range.
Burglar alarm system
Schottky diode
1N5817
Button in outdoor area
Master Slave
activation activation
36] Connections of the activation master
and
}
Local activation suppression (optional) [
37]
}
