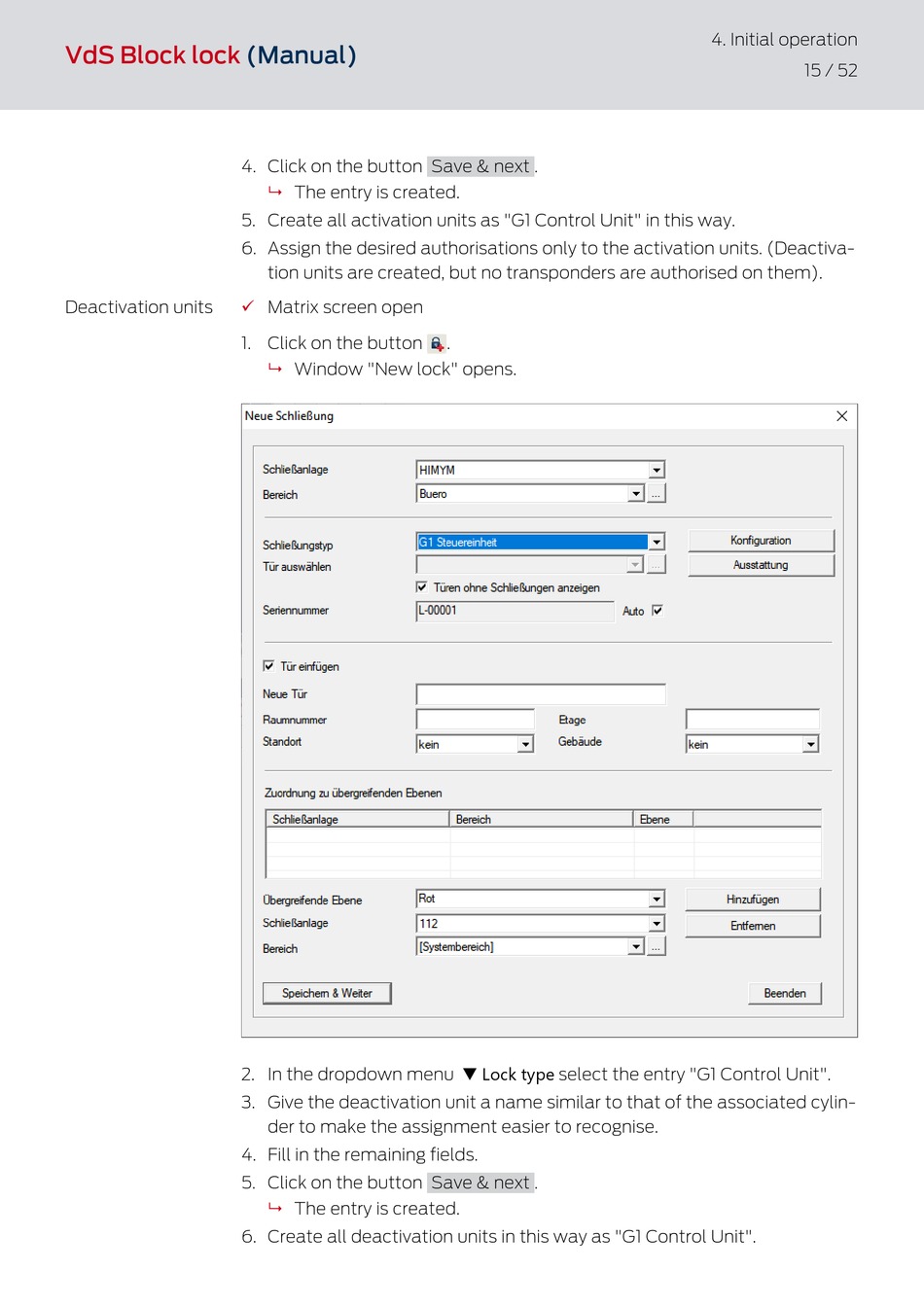

Simons Voss Technologies VdS Block lock Manual page 15

VdS Block lock
Deactivation units
(Manual)
4. Click on the button Save & next .
The entry is created.
9
5. Create all activation units as "G1 Control Unit" in this way.
6. Assign the desired authorisations only to the activation units. (Deactiva-
tion units are created, but no transponders are authorised on them).
Matrix screen open
ü
1. Click on the button
9 Window "New lock" opens.
2. In the dropdown menu ▼ Lock type select the entry "G1 Control Unit".
3. Give the deactivation unit a name similar to that of the associated cylin-
der to make the assignment easier to recognise.
4. Fill in the remaining fields.
5. Click on the button Save & next .
The entry is created.
9
6. Create all deactivation units in this way as "G1 Control Unit".
.
4. Initial operation
15 / 52
