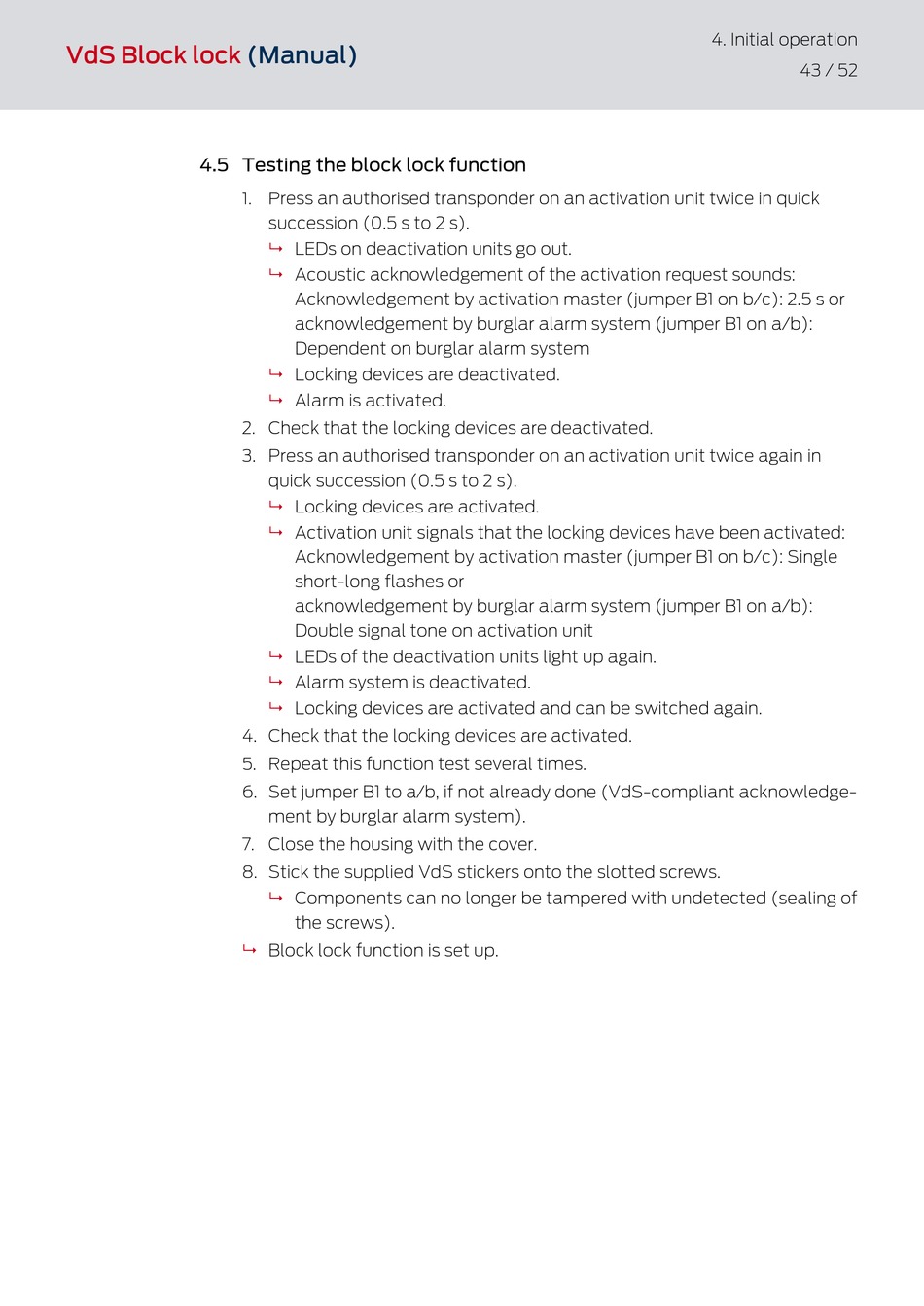

4.5 Testing the block lock function

(Manual)
1. Press an authorised transponder on an activation unit twice in quick
succession (0.5 s to 2 s).
9 LEDs on deactivation units go out.
Acoustic acknowledgement of the activation request sounds:
9
Acknowledgement by activation master (jumper B1 on b/c): 2.5 s or
acknowledgement by burglar alarm system (jumper B1 on a/b):
Dependent on burglar alarm system
9 Locking devices are deactivated.
9 Alarm is activated.
2. Check that the locking devices are deactivated.
3. Press an authorised transponder on an activation unit twice again in
quick succession (0.5 s to 2 s).
9 Locking devices are activated.
Activation unit signals that the locking devices have been activated:
9
Acknowledgement by activation master (jumper B1 on b/c): Single
short-long flashes or
acknowledgement by burglar alarm system (jumper B1 on a/b):
Double signal tone on activation unit
LEDs of the deactivation units light up again.
9
9 Alarm system is deactivated.
Locking devices are activated and can be switched again.
9
4. Check that the locking devices are activated.
5. Repeat this function test several times.
6. Set jumper B1 to a/b, if not already done (VdS-compliant acknowledge-
ment by burglar alarm system).
7. Close the housing with the cover.
8. Stick the supplied VdS stickers onto the slotted screws.
9 Components can no longer be tampered with undetected (sealing of
the screws).
9 Block lock function is set up.
