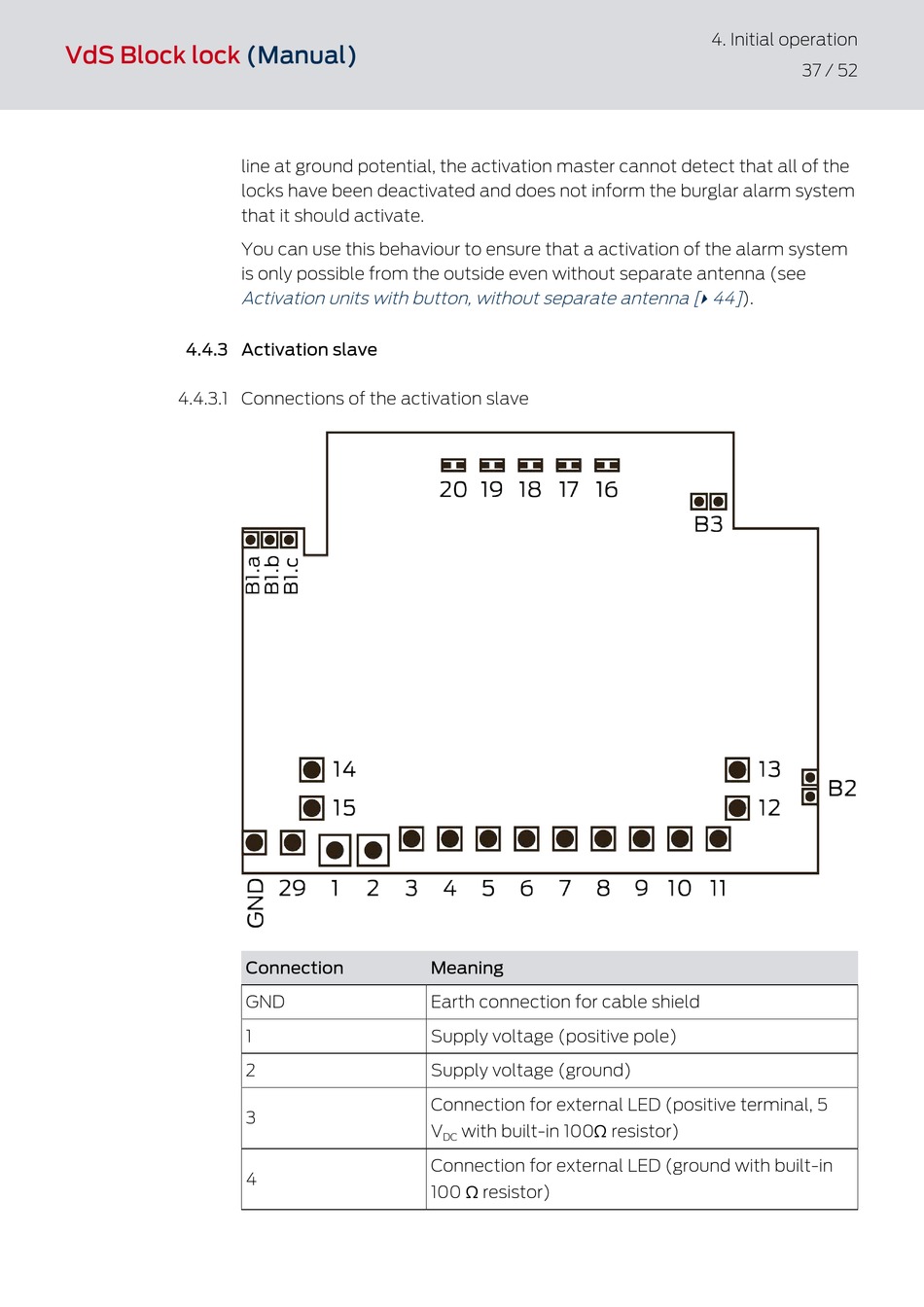

4.4.3 Activation slave
4.4.3.1 Connections of the activation slave
(Manual)
line at ground potential, the activation master cannot detect that all of the
locks have been deactivated and does not inform the burglar alarm system
that it should activate.
You can use this behaviour to ensure that a activation of the alarm system
is only possible from the outside even without separate antenna (see
Activation units with button, without separate antenna [
Connection
GND
1
2
3
4
Meaning
Earth connection for cable shield
Supply voltage (positive pole)
Supply voltage (ground)
Connection for external LED (positive terminal, 5
V with built-in 100Ω resistor)
DC
Connection for external LED (ground with built-in
100 Ω resistor)
4. Initial operation
37 / 52
44] ).
}
