VdS Block lock
4.3.2.2 Activation master
(Manual)
The use of the recess for metal doors considerably improves the
communication between antenna and lock. The function is likely to be
perfect. Please coordinate the position of the recess (outside or inside)
with your specialist trade partner.
The cable is led hanging from the door cable transition into the wall cable
transition ("monkey swing"). This minimises the strain on the cable while
the door is moving. From there the cable is routed to the deactivation unit
in the outdoor area.
Equipment of the double-leaf door
If the locking cylinder is to be deactivated by the block lock, the separate
antenna must be mounted nearby. The separate antenna must therefore
already be installed in the active leaf when the door is manufactured.
The outsourced antenna must therefore already be installed in the active
leaf when the door is manufactured.

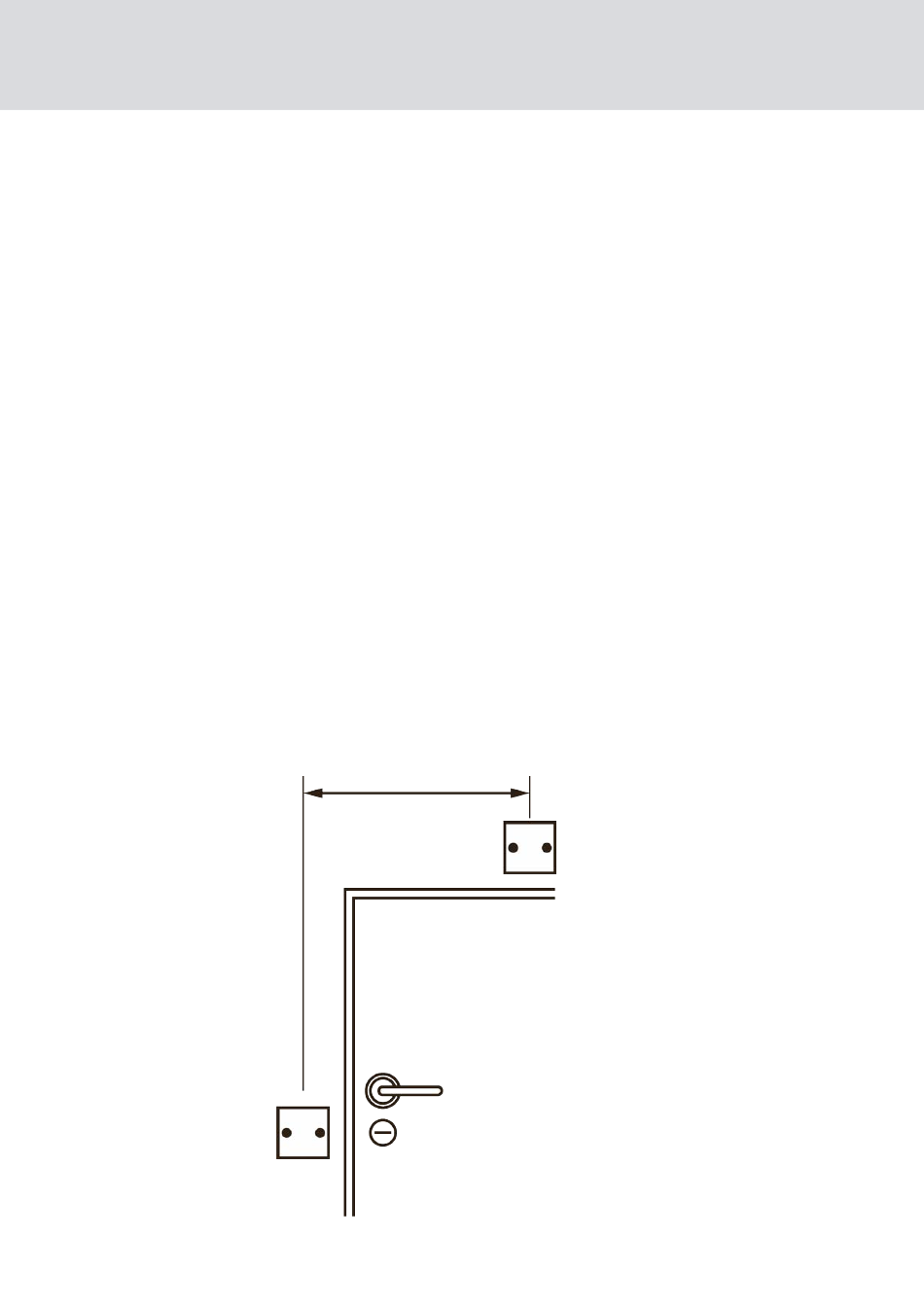

Mount the activation master above the door frame. Keep a distance of at
least one and a half metres from other SimonsVoss components (see
drawing) to prevent mutual interference.
Align the activation unit so that the fastening screws are in a horizontal line
(see drawing) in order to rule out interference during normal door
operation.
≥150 cm
Locking cylinder
Deactivation
unit
4. Initial operation
Activation unit
