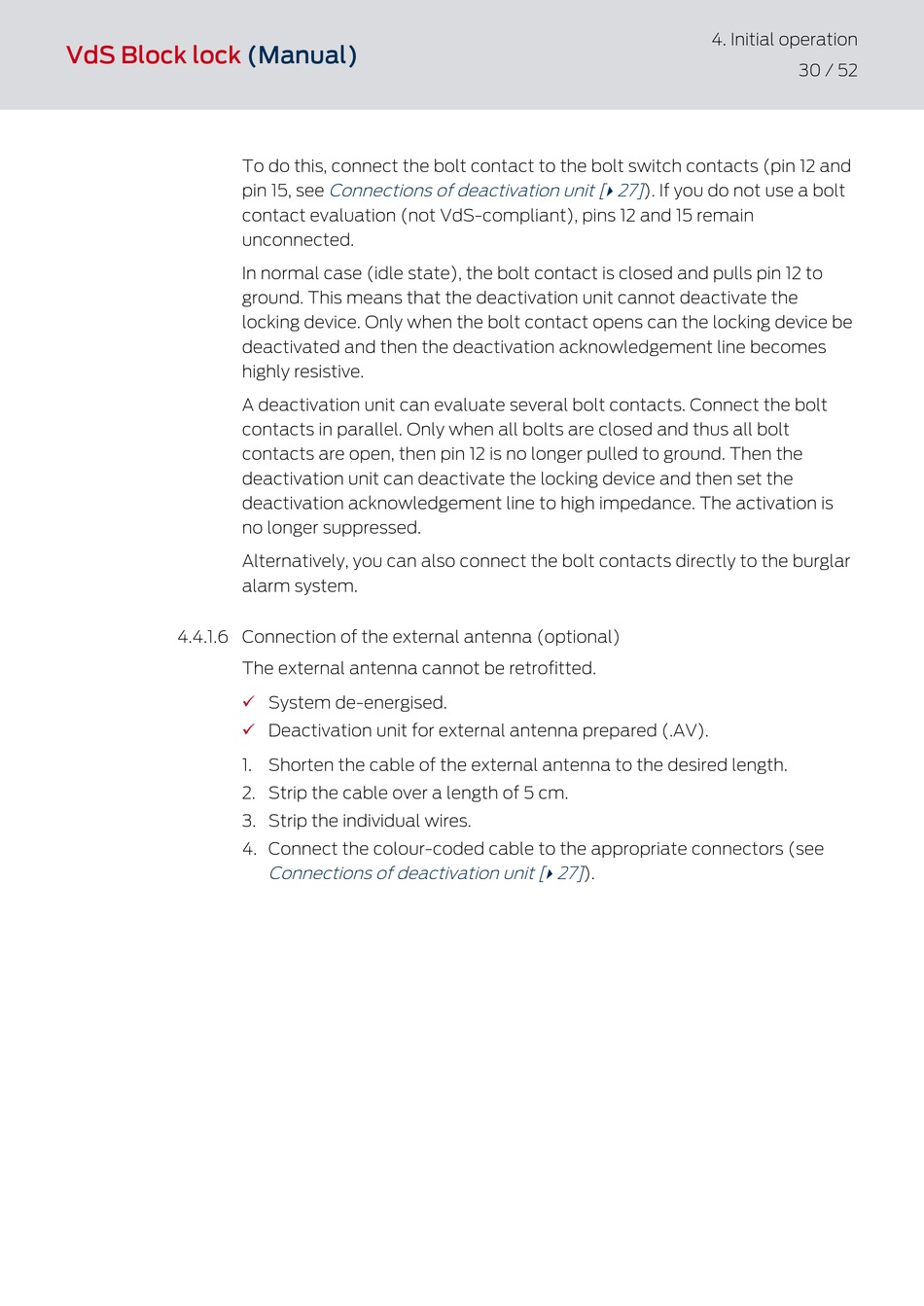

Simons Voss Technologies VdS Block lock Manual page 30

VdS Block lock
4.4.1.6 Connection of the external antenna (optional)
(Manual)
To do this, connect the bolt contact to the bolt switch contacts (pin 12 and
pin 15, see Connections of deactivation unit [
contact evaluation (not VdS-compliant), pins 12 and 15 remain
unconnected.
In normal case (idle state), the bolt contact is closed and pulls pin 12 to
ground. This means that the deactivation unit cannot deactivate the
locking device. Only when the bolt contact opens can the locking device be
deactivated and then the deactivation acknowledgement line becomes
highly resistive.
A deactivation unit can evaluate several bolt contacts. Connect the bolt
contacts in parallel. Only when all bolts are closed and thus all bolt
contacts are open, then pin 12 is no longer pulled to ground. Then the
deactivation unit can deactivate the locking device and then set the
deactivation acknowledgement line to high impedance. The activation is
no longer suppressed.
Alternatively, you can also connect the bolt contacts directly to the burglar
alarm system.
The external antenna cannot be retrofitted.
ü System de-energised.
Deactivation unit for external antenna prepared (.AV).
ü
1. Shorten the cable of the external antenna to the desired length.
2. Strip the cable over a length of 5 cm.
3. Strip the individual wires.
4. Connect the colour-coded cable to the appropriate connectors (see
Connections of deactivation unit [
4. Initial operation
27] ). If you do not use a bolt
}
27] ).
}
