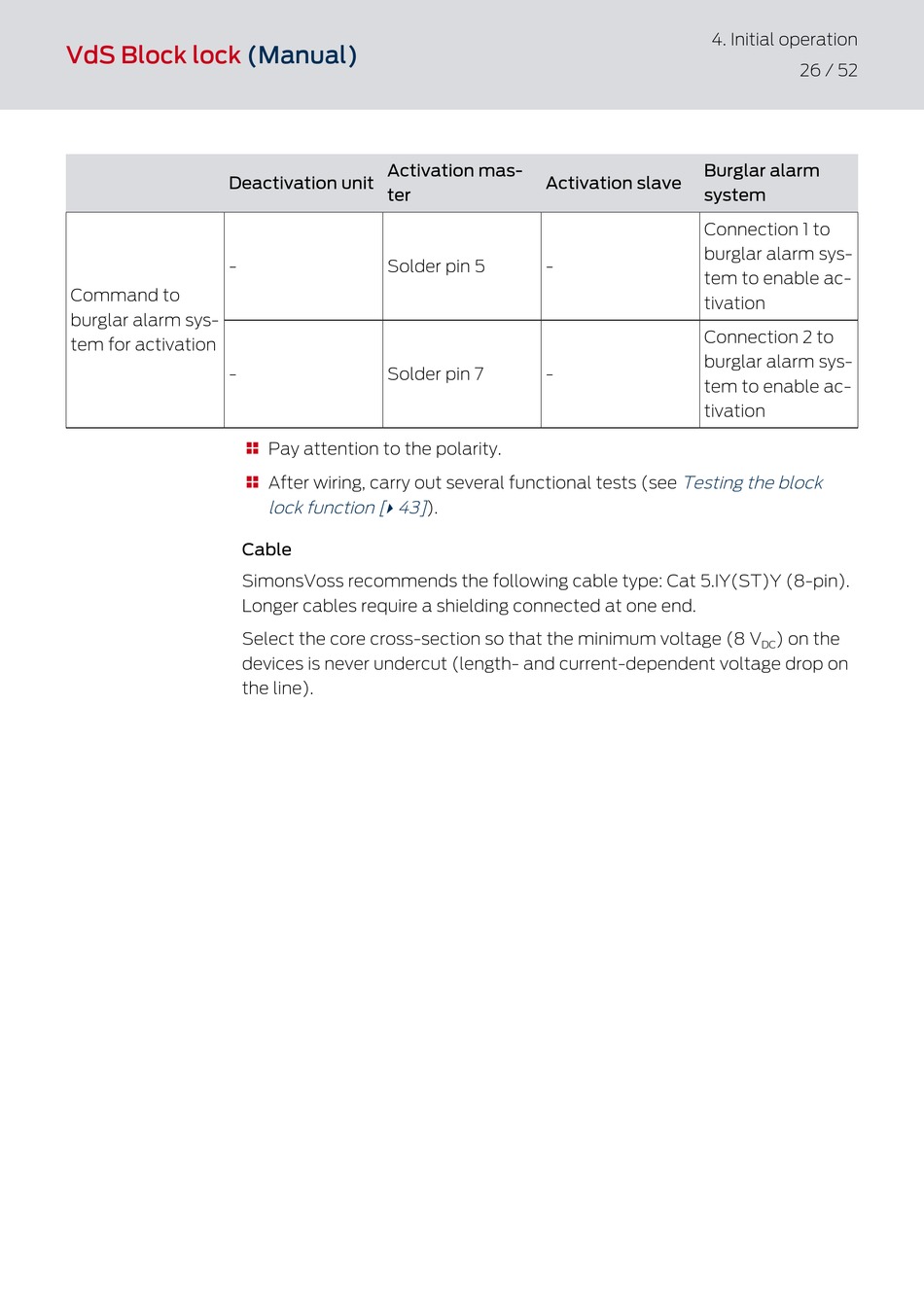

Simons Voss Technologies VdS Block lock Manual page 26

VdS Block lock
Deactivation unit
-
Command to
burglar alarm sys-
tem for activation
-
(Manual)
Activation mas-
ter
Solder pin 5
Solder pin 7
Pay attention to the polarity.

After wiring, carry out several functional tests (see

lock function [ 43]
}
Cable
SimonsVoss recommends the following cable type: Cat 5.IY(ST)Y (8-pin).
Longer cables require a shielding connected at one end.
Select the core cross-section so that the minimum voltage (8 V
devices is never undercut (length- and current-dependent voltage drop on
the line).
Activation slave
-
-
).
4. Initial operation
26 / 52
Burglar alarm
system
Connection 1 to
burglar alarm sys-
tem to enable ac-
tivation
Connection 2 to
burglar alarm sys-
tem to enable ac-
tivation
Testing the block
) on the
DC
