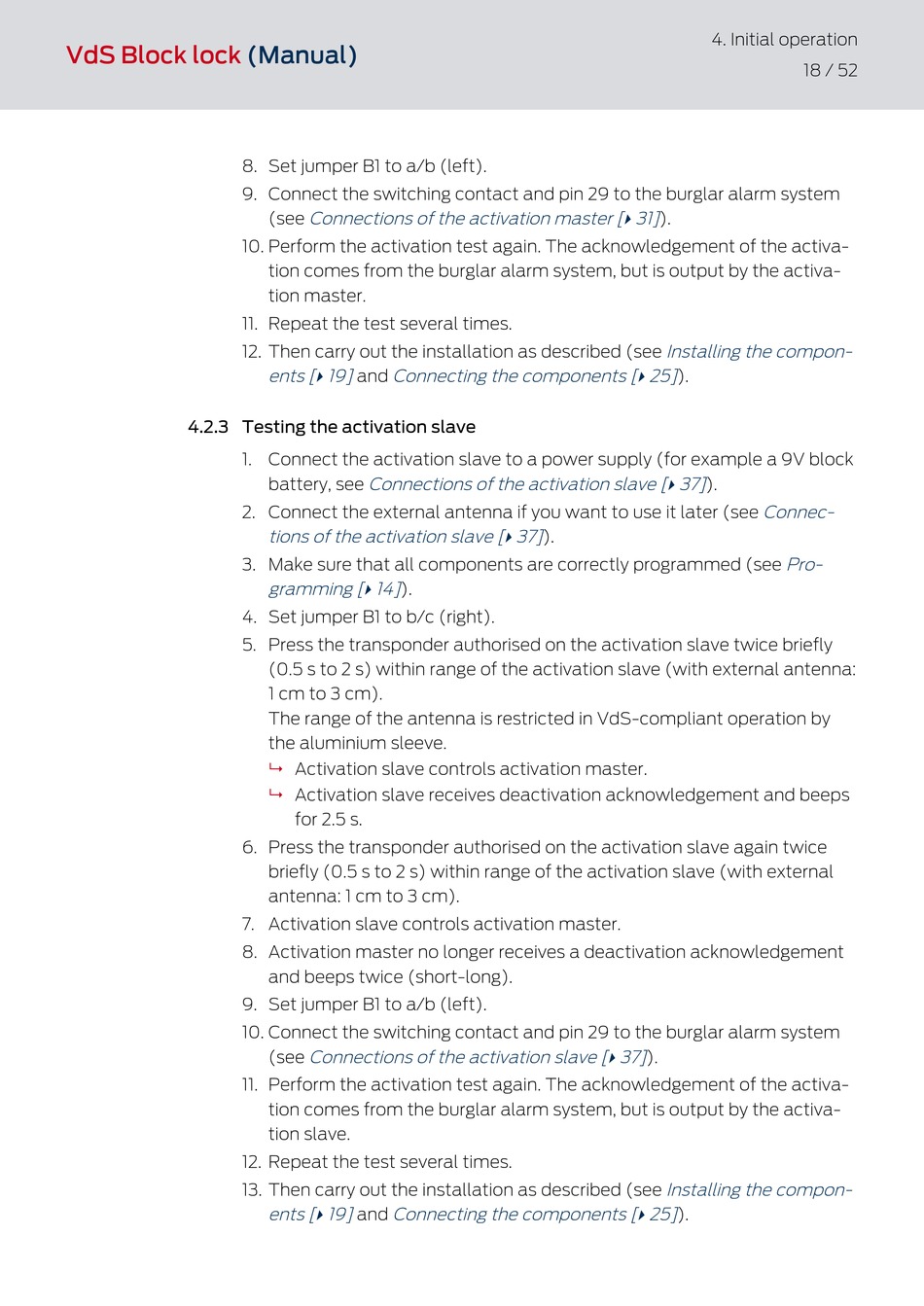

4.2.3 Testing the activation slave

(Manual)
8. Set jumper B1 to a/b (left).
9. Connect the switching contact and pin 29 to the burglar alarm system
Connections of the activation master [
(see
10. Perform the activation test again. The acknowledgement of the activa-
tion comes from the burglar alarm system, but is output by the activa-
tion master.
11. Repeat the test several times.
12. Then carry out the installation as described (see
ents [ 19] Connecting the components [
and
}
1. Connect the activation slave to a power supply (for example a 9V block
Connections of the activation slave [
battery, see
2. Connect the external antenna if you want to use it later (see
tions of the activation slave [
3. Make sure that all components are correctly programmed (see
gramming [ 14]
).
}
4. Set jumper B1 to b/c (right).
5. Press the transponder authorised on the activation slave twice briefly
(0.5 s to 2 s) within range of the activation slave (with external antenna:
1 cm to 3 cm).
The range of the antenna is restricted in VdS-compliant operation by
the aluminium sleeve.
9 Activation slave controls activation master.
Activation slave receives deactivation acknowledgement and beeps
9
for 2.5 s.
6. Press the transponder authorised on the activation slave again twice
briefly (0.5 s to 2 s) within range of the activation slave (with external
antenna: 1 cm to 3 cm).
7. Activation slave controls activation master.
8. Activation master no longer receives a deactivation acknowledgement
and beeps twice (short-long).
9. Set jumper B1 to a/b (left).
10. Connect the switching contact and pin 29 to the burglar alarm system
(see Connections of the activation slave [
11. Perform the activation test again. The acknowledgement of the activa-
tion comes from the burglar alarm system, but is output by the activa-
tion slave.
12. Repeat the test several times.
13. Then carry out the installation as described (see
ents [ 19] and Connecting the components [
}
31]
).
}
Installing the compon-
25]
).
}
37]
}
37]
).
}
37] ).
}
Installing the compon-
25] ).
}
