Injection Timing - Doosan V158TI Operation & Maintenance Manual

<Oil quantity of the injection pump>
V158TIE/V158TI
0.95 liter

6.3.25. Injection timing

<How to check the injection timing>
●
Check the current injection timing of the
engine as follows before adjusting it but if
the injection timing is wrong should do it.

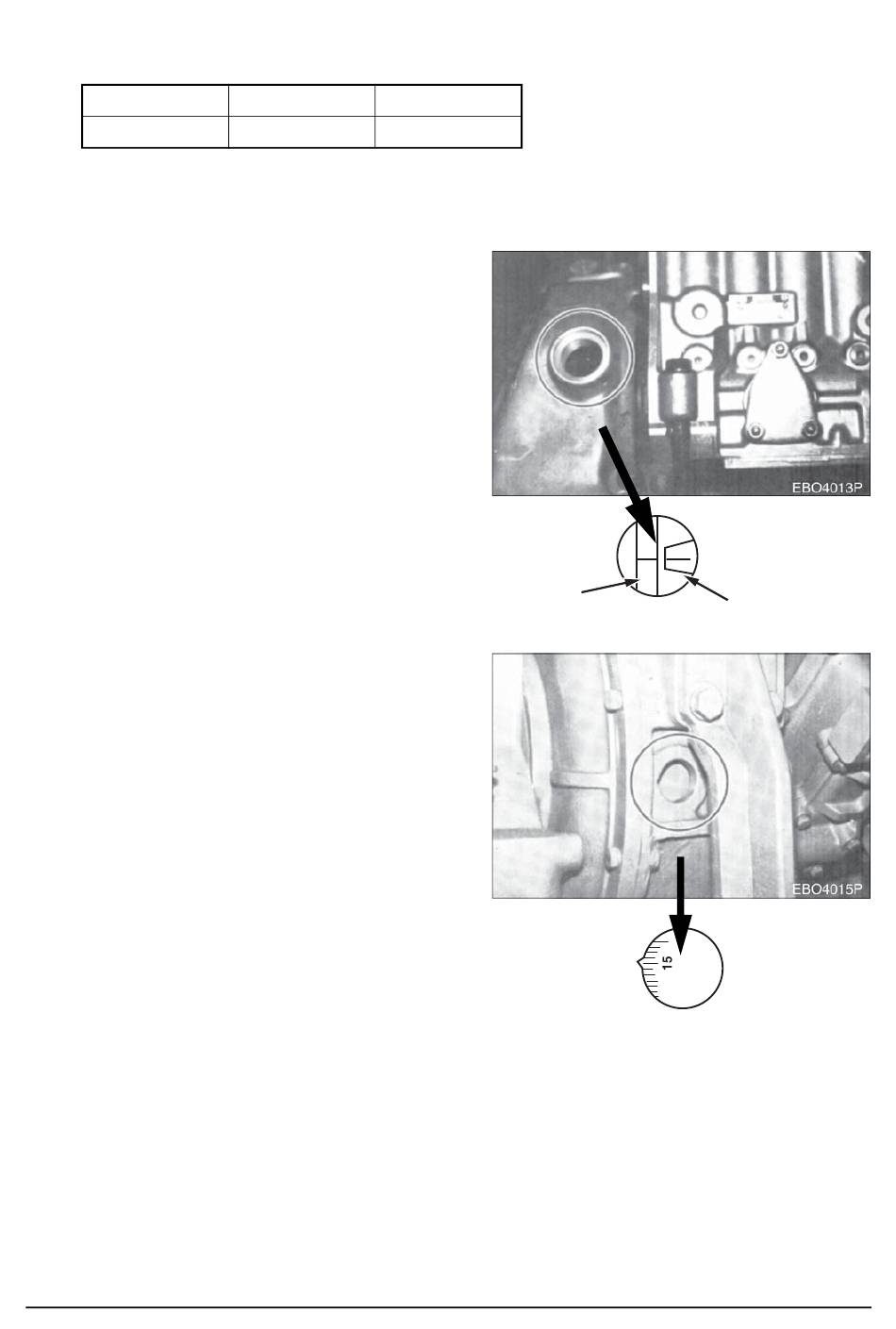

1) Remove the plug screw assembled in
case cover on the injection pump drive
gear.(Some
remove cover assembly)
And turn the crank pulley so that the
mark on pointer provided on injection
pump coincides with matching mark
(FB) on the flange surface of the drive
gear.
2) Check the injection timing degree
whether the V-type edge of the flywheel
housing sight hole coincides with the
engine injection timing degree marked
on the flywheel corresponding to fuel
delivery position.
V180TI
1.1 liter
cases are needed
V222TI
1.3 liter
to
Flange
- 107 - Disassembly and assembly of major components
FB
Pointer
EBO4012I
EBO4014I
