System monitor
It offers menu to monitor the controller operation. It shows values for Engine RPM, Valve Duty,
Valve Current, Aux RPM Input, Pickup Voltage and Bat Voltage.

(3) Engine type setup menu

This menu offers function to configure setting values of the controller depending on types of the
engines in advance and apply such preset values to the selected engine.

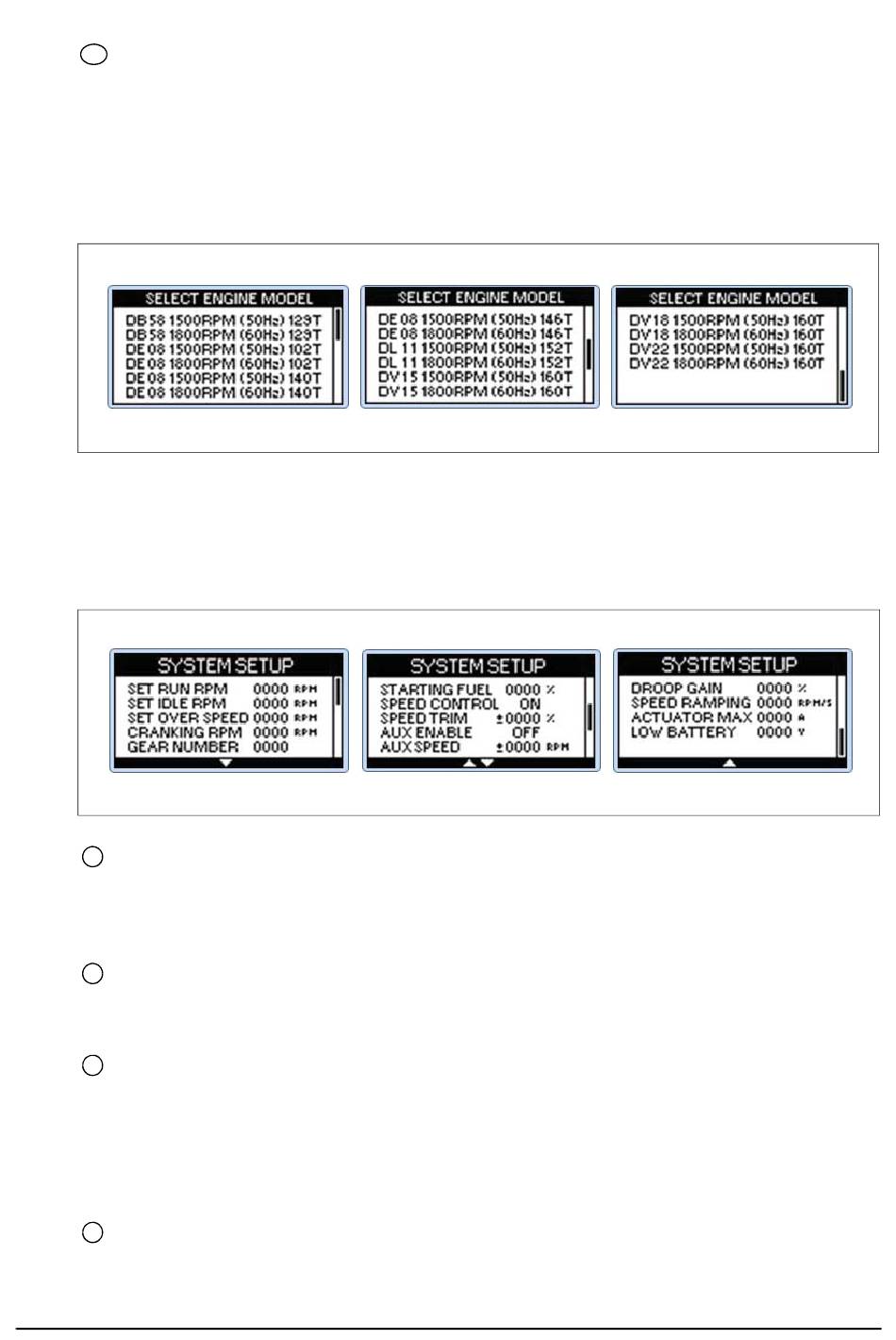

(4) System setup menu display of the controller
It consists of sub-menus for the system configuration items of the controller including the one for con-
figuring RUN/IDLE/OVERSPEED/CRANK/GEAR NUMBER related to RPM setting. Depending on
additional functions, users can designate values for STARTING FUEL/SPEED RAMPING/ACTUA-
TOR MAX/LOW BATTERY.
1
Set run rpm
Users can designate normal speed (target RPM) of the engine.
Users need to input different normal speed values depending on the specification of the selected
engine.
2
Set idle rpm
Users can designate the idle speed values of the engine as RPM.
Users need to input values to control the idle operating speed of the engine.
3
Set over speed
Users can designate RPM values to activate engine protection function when the speed exceeds
the normal level (target RPM) and reaches the overspeed range that may cause problems to the
engine.
When the engine RPM reaches the over speed RPM range, the engine immediately stops with
error messages and alarms.
4
Cranking rpm
Users can designate RPM values to activate the actuator when the engine starts to operate.
