Engine Water Temperature; Engine Oil Pressure; Exhaust Gas Temperature - Doosan V158TI Operation & Maintenance Manual

3. Part Names, Operation and Settings

3.8.2 Engine Water Temperature

- It shows the coolant temperature in gauge and digital values.

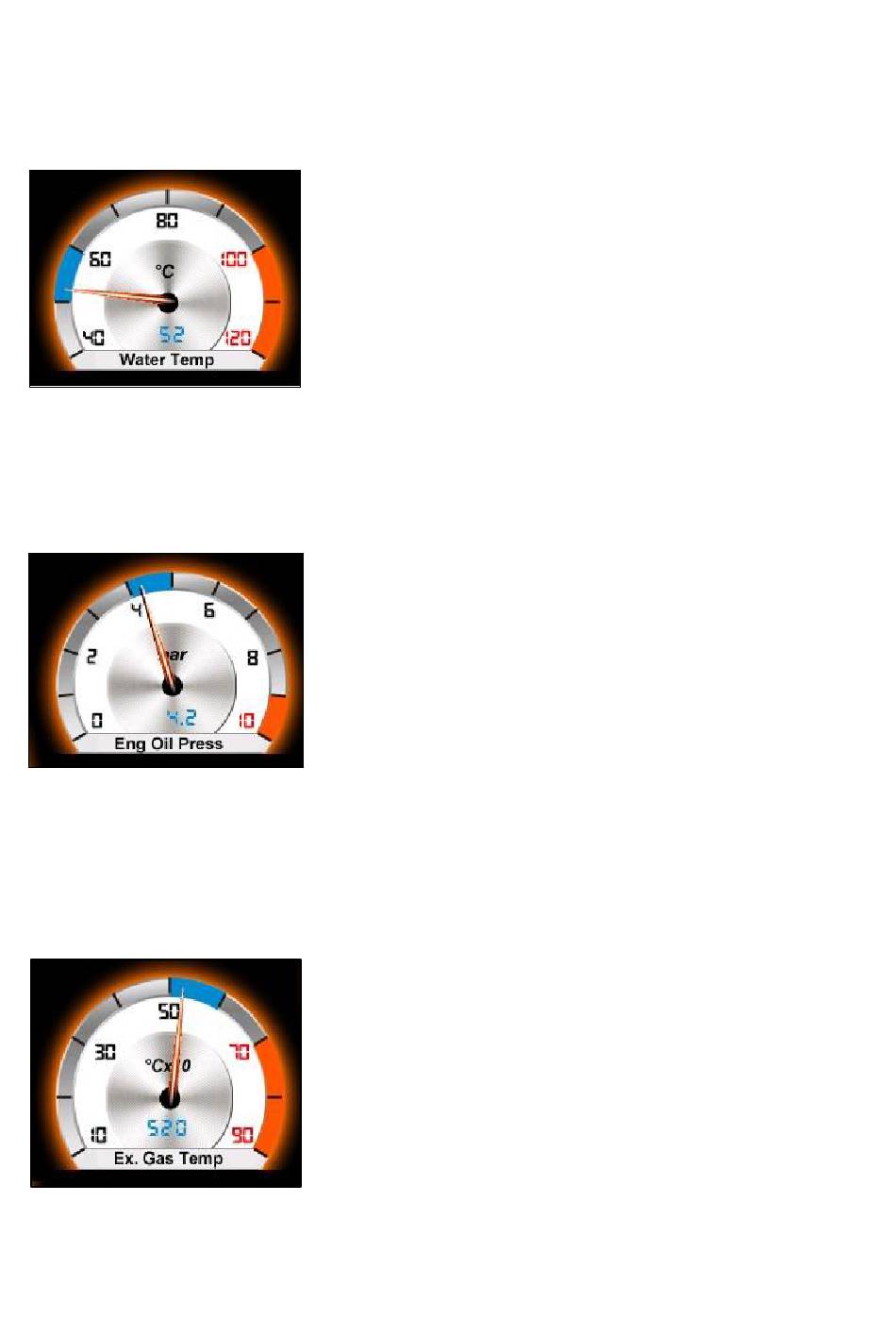

[Fig. 3-18]
Engine Water Temperature Gauge

3.8.3 Engine Oil Pressure

- It shows engine oil pressure in gauge and digital values.
-
[Fig. 3-19]
Engine Oil Pressure Gauge

3.8.4 Exhaust Gas Temperature

- It shows exhaust gas temperature in gauge and digital values.
[Fig. 3-20]
Exhaust Gas Temperature
HY-DP-MANUAL-001
1) It shows the temperature indicated by the gauge hand in
digital values (blue) for better accuracy (however, it is
available when the 'DIGIT' button is on).
2) It shows the open/short diagnosis for sensor problems.
☞ Open: 'ERROR' / Short (GND): '-----'
3) It also serves as the water temperature switch.
4) It activates alarm and warning beep when the temperature
increases up to 93℃ or higher.
5) When the temperature increases up to 103℃ or higher, the
engine will stop.
1) It shows the pressure indicated by the gauge hand in digital
values (blue) for better accuracy (however, it is available
when the 'DIGIT' button is on).
2) It shows the open/short diagnosis for sensor problems.
☞ Open: '-----' / Short (Power): 'ERROR'
3) It also serves as the engine oil pressure switch.
4) It activates alarm and warning beep when the pressure is
1bar or lower (detects in 10 seconds)
5) When the pressure is 0.5bar or lower, the engine will stop.
6) It will not work before the engine starts.
1) It shows the temperature indicated by the gauge hand in
digital values (blue) for better accuracy (however, it is
available when the 'DIGIT' button is on).
2) It shows the open/short diagnosis for sensor problems.
☞ Open: 'ERROR' / Short (GND): '-----'
3) The alarm will be activated when the temperature is 100℃ or
lower, or 600℃ or higher while the engine is in operation.
