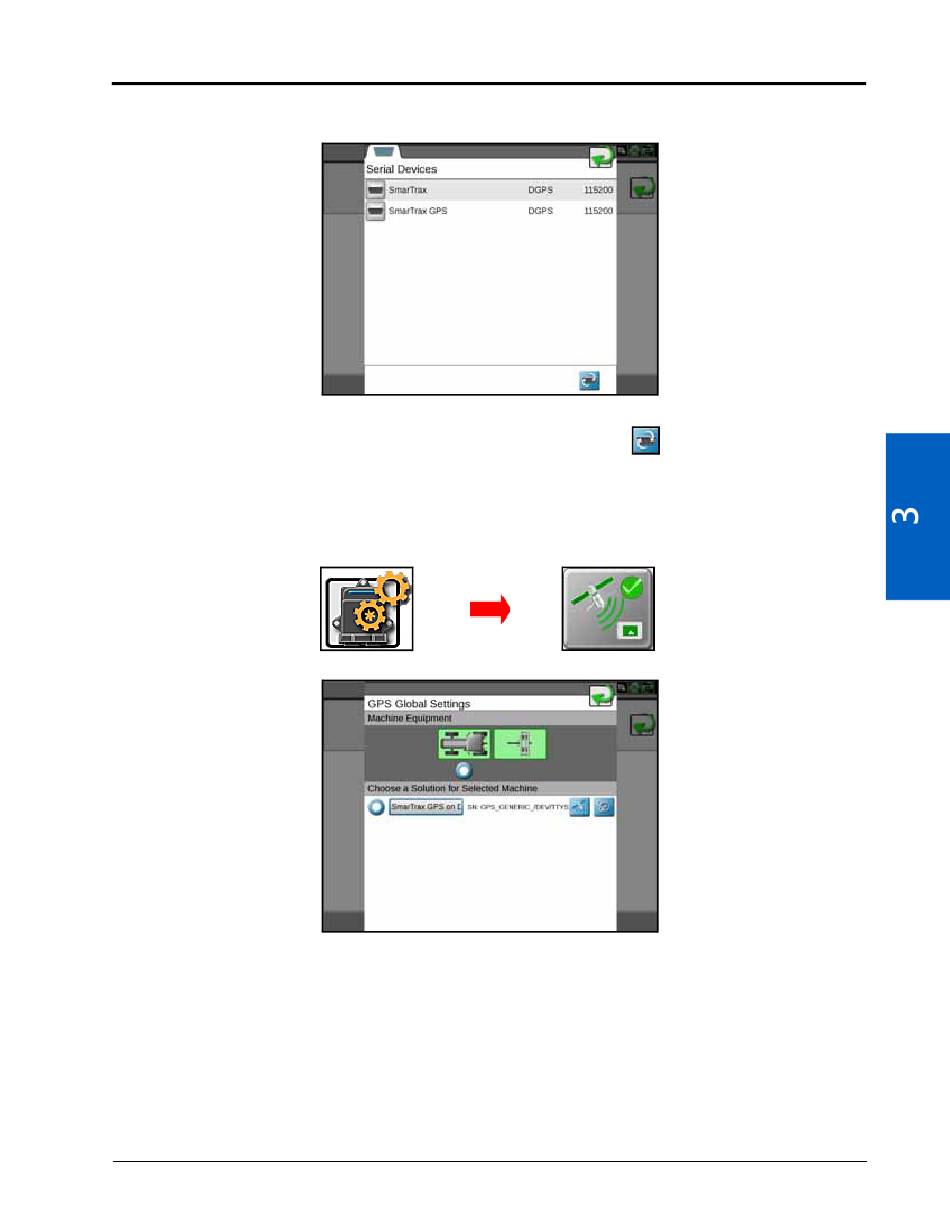

2. Select Serial Devices.
.
3. Verify that the SmarTrax and SmarTrax GPS are listed in the Serial Device Setup screen.
NOTE: If SmarTrax and SmarTrax GPS are not listed, press the Retry icon
the screen. If these devices still do not appear, inspect cable connections to ensure they are installed
securely, then press the Retry icon again. If the devices still do not appear, refer to Chapter 4,
Troubleshooting for further information.
4. Press Accept.
5. Select GPS Setup.
6. Verify that SmarTrax on DGPS is visible and selected.
NOTE: If SmarTrax GPS on DGPS is not visible and selected in the list, refer to Chapter 4, Troubleshooting
beginning on page 41 for further information.
P/N 016-9001-022 Rev. D
Edit
on the bottom-right corner of
GPS Setup
VIPER 4
13
