Chapter 3 Viper 4; Widget And Button Definitions - Raven SmarTrax Calibration & Operation Manual

CHAPTER
3

WIDGET AND BUTTON DEFINITIONS

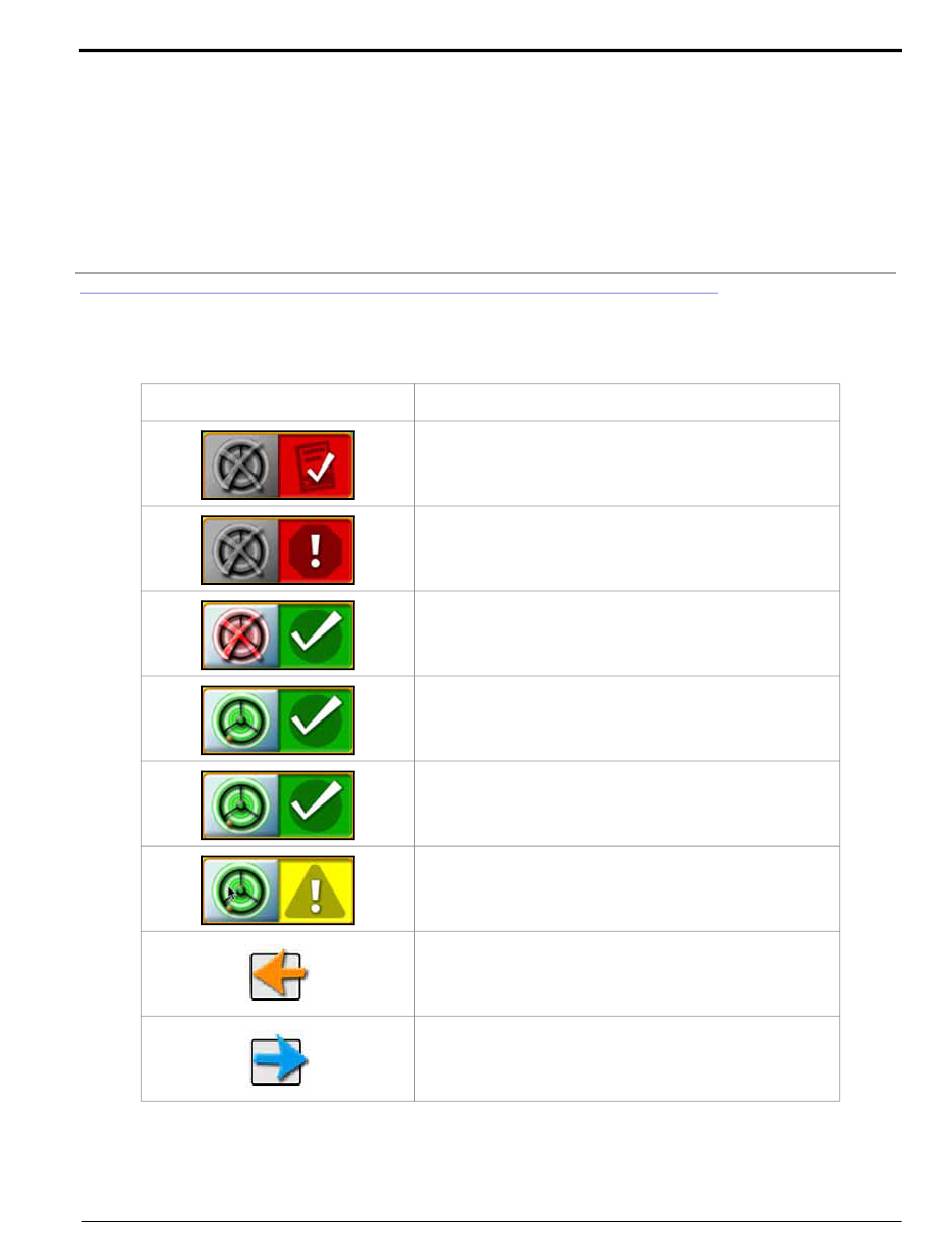

The following are common status or mode information which may be while the SmarTrax system is engaged:
Display
P/N 016-9001-022 Rev. D
V IPER 4
C H A P T E R 3
The SmarTrax node is detected, but the operator must
accept responsibility for the operation of the SmarTrax
system.
No A-B path or guidance line has been met.
SmarTrax is detected, turned on, and calibrated.
SmarTrax is detected and in operation in the Online
mode. Adjusting the Online Sensitivity will affect
performance while in this mode. Press and hold to
determine in which mode the system is operating.
SmarTrax is detected and in operation in the Line
Acquisition mode. Adjusting the Line Acquisition will
affect performance while in this mode. Press and hold to
determine in which mode the system is operating.
Vehicle speed is too fast or too slow for SmarTrax
operation and the system will disengage.
Previous - Returns the Viper 4 display to the previous
screen in the setup process.
Next - Saves the changes made to the SmarTrax system
and proceeds to the next step in the setup process.
Message
7
