GENERAL DESCRIPTION

Quattrocode is an electronic machine operating on three controlled axes. Meticulously designed
down to the finest details, it combines operating speed with ease of use and high precision results.
The machine operates linked to a personal computer. The operating programs are set up with the
machine keypad.

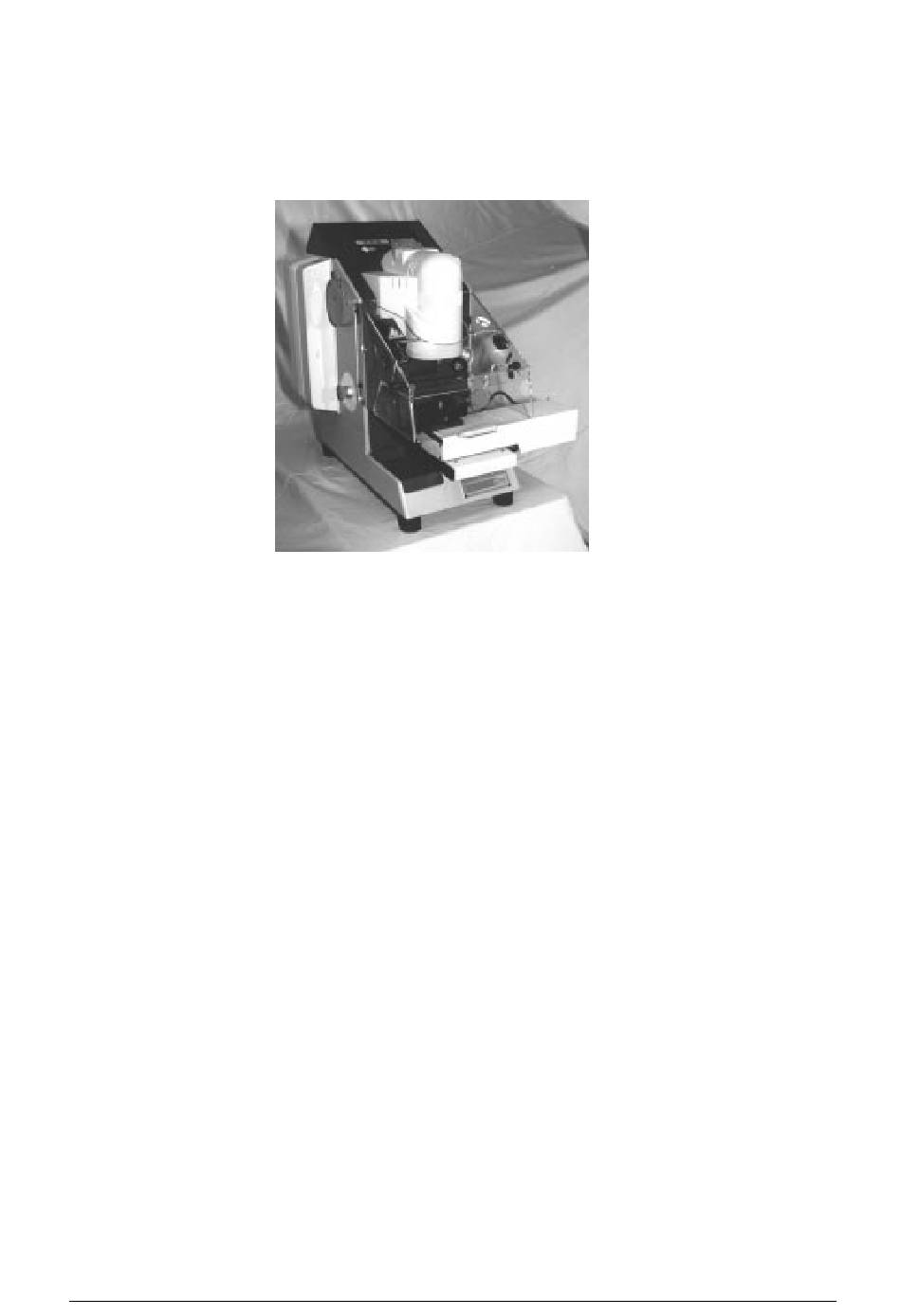

Fig. 3
1.1

Main operating features

•
Movements
Movement of the three axes (x-y-z) operates with pre-loaded ball screws, driven by step motors on
ground roller guides.
•
J1 clamp
Standard clamp designed to house almost all dimple or laser keys.
•
Cutting shaft
Comprises an electrically controlled tool-locking system.
•
Cutting tool
An easily replaced cutting tool (HSS or hard metal) with resistance and cutting properties suitable
for the type of work and speed of rotation.
•
Display
Alphanumeric display with scrolling text on 2 lines of 12 characters each, placed on top of the
machine.
Its design and position ensure practical, easy use.
