- Page 1 Operating manual D424556XA vers. ®...
- Page 2 This manual has been drawn up by SILCA S.p.A. All rights reserved. No part of this publication may be reproduced or used in any form or by any means (photocopying, microfilm or other) without the written permission of SILCA S.p.A. Published in june 2002 Printed in Vittorio Veneto by SILCA S.p.A.
-
Page 3: Table Of Contents
CONTENTS GUIDE TO THE MANUAL ..................1 GENERAL INSTRUCTIONS ..................2 TRANSPORT ....................3 Packing ....................3 Transport ....................3 Unpacking .....................3 Machine handling ..................3 WORKING PARTS ..................4 MACHINE DESCRIPTION ................5 Technical data ..................6 Electrical circuit ..................7 ACCESSORIES PROVIDED ................8 MACHINE INSTALLATION AND PREPARATION .........9 Checking for damage ................9 Environmental conditions ..............9 Positioning ....................9... -
Page 5: Guide To The Manual
DELTA 2000 FO GUIDE TO THE MANUAL This manual has been produced to serve as a guide for users of the DELTA 2000 FO key-cutting machine. Read it carefully; it is essential if you wish to operate your machine safely and efficiently. -
Page 6: General Instructions
The material used in the manufacture of this machine and the components employed during use of the machine are not dangerous and their use complies with standards. The DELTA 2000 FO key-cutting machine must be installed and used in the way laid down by the manufacturer, as illustrated in this manual. -
Page 7: Transport
1 set of accessories. Machine handling When the DELTA 2000 FO key-cutting machine has been unpacked, place it directly on its workbench. This operation can be carried out by one person, firmly holding the base, and no other part, to lift and carry the machine. -
Page 8: Working Parts
DELTA 2000 FO Operating manual - English WORKING PARTS CODED ANGLE DEVICE CODED SPACING DEVICE Fig. 5 A - rotating centring clamp A1 - key-locking grub screw A2 - tip stop groove A3 - Ford/Jaguar selection cylinder A4 - coded angle device drum... -

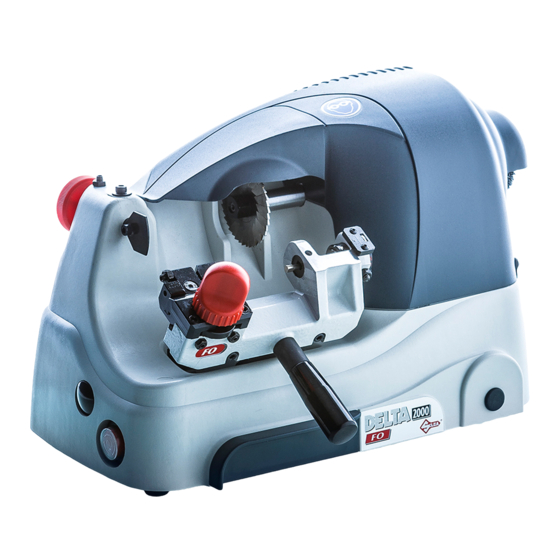

Page 9: Machine Description
Cutting tool (G) The cutting tool is the part of the DELTA 2000 FO machine which cuts the key blank. The tool is in HSS super rapid steel and is protected by a special cover (H) to ensure safe operation. -
Page 10: Technical Data
DELTA 2000 FO Operating manual - English Technical data ELECTRICAL PROPERTIES: 230V - 50Hz 190W 1,5A 110V - 60Hz 250W 3,5A CUTTING TOOL: Super Rapid Steel (HSS) MOTOR: One speed single phase 230V-50Hz 1350 rpm 0,145 Kw 110V - 60Hz 1700 rpm 0,180 Kw... -
Page 11: Electrical Circuit
DELTA 2000 FO Electrical circuit The DELTA 2000 FO key-cutting machine is provided with a motor which performs: 1350 rpm with consumption of approx. 0,19 kw and absorption of 1,5A on 230V version; 1700 rpm with consumption of approx 0,25Kw and absorption of 3,5A on 110V version. -
Page 12: Accessories Provided
Operating manual - English ACCESSORIES PROVIDED To ensure trouble-free working with the DELTA 2000 FO, it is advisable to always have certain spare parts on hand. It is advisable to always have a tool box containing: tools, cutting tools, brushes and small replacement parts. -
Page 13: Machine Installation And Preparation
DELTA 2000 FO MACHINE INSTALLATION AND PREPARATION The DELTA 2000 FO key-cutting machine can be installed by the purchaser and does not require any special skills. However, some checks and preparation for use need to be carried out by the operator. -
Page 14: Description Of Work Station
Graphics THE USE OF PROTECTIVE GOGGLES IS COMPULSORY Separate parts The detachable parts of the machine are packed separately and must be fitted to the DELTA 2000 FO by the operator, as follows: OWER CABLE 230V version: first connect the safety device (X) to the key-cutting machine and the power cable then connect the free end of the power cable to the power mains (fig.9). -
Page 15: Regulation And Use Of The Machine
REGULATION AND USE OF THE MACHINE Checking and Setting The cutting tool on the DELTA 2000 FO is used to cut the key blanks and must be periodically checked and replaced. Periodically, and whenever the cutting tool is replaced, check the key-cutting machine settings, to ensure perfect machine efficiency. -
Page 16: Cutting Operations
DELTA 2000 FO Operating manual - English EGULATING DEPTH SETTING To regulate the depth settings, proceed as follows: ATTENTION: disconnect the machine from the mains. 1) set up the coded spacing device by means of the knob (E2) so that the indicator "F" is aligned with position "d"... -
Page 17: Checking Set Codes (Ford - Jaguar)
Operating manual - English DELTA 2000 FO Checking set codes (Ford - Jaguar) The machine can cut both Ford and Jaguar keys following a simple operation to carry out on the coded angle device. To check the current setting, proceed as follows: 1) place the key blank tip into the rotating clamp (A) and push up against the tip stop groove (A2). -
Page 18: Maintenance
ATTENTION: for repairs or replacement of parts for maintenance, the ‘CE’ mark is guaranteed only if original spare parts provided by the manufacturer are used. Although the DELTA 2000 FO key-cutting machine does not require special maintenance, it is advisable to check and, if necessary, replace the parts subject to wear (cutting tool, brush, tracer point). -
Page 19: Tracer Point Replacement
Operating manual - English DELTA 2000 FO Tracer point replacement To replace the tracer point (F), proceed as follows (fig.20): ATTENTION: unplug the machine from the mains. 1) loosen and remove the tracer point locking screw (F1). 2) remove the tracer point. -
Page 20: Waste Disposal
• Packing The DELTA 2000 FO is consigned in a cardboard packing box which can be re-used if undamaged. When it is to be thrown away it is classified as solid urban waste and should be placed in the special paper collecting bins. -
Page 21: Assistance
Service Centres. How to request service The guarantee attached to DELTA 2000 FO key-cutting machine ensures free repairs or replacements of faulty parts within 12 months of purchase. All other service calls must be arranged by the customer with Silca or with a Silca Service Centre. - Page 22 IEC 801-4 Standards | 97 | European Union DIRECTIVE 2006/95/CE (Low Voltage) and with the EN 60204-1 EN 60950 Standards Claudio Tomasella of the Silca S.p.A. Research & Development Division is authorized to create a Technical File. General Manager Basic Production Center...
- Page 23 Hong Kong plc@plc.com.hk 23 Man Lock Street +36-1-3290692 Hungary Kaba Elzett Megyeri út 51 Budapest 1044 +36-1-3501011 info@elzett.hu Minda Silca Engineering +91-987-397630 +91-120-2351301 India Plot No. 37, Toy City Greater Noida 201308 Ltd. +91-987-397631 info@mindasilca.in No.73 Stakhr. St - Emam...
- Page 24 +381-11-3290017 Serbia Silkon D.O.O. 29, Novembra 70 Belgrade 11000 +381-11-2080200 silkon@ptt.yu 21 Toh Guan Rd. East +65-6316-4470 Singapore Silca Soxxi Pte. Ltd. Singapore 608609 +65-6316-8100 #01-12 Toh Guan Centre info@silca.sg +421-2-6252-0032 +421-2-6252-0034 Slovakia H&B Slovakia s.r.o. Ovsistske Nam. 1 Bratislava...
- Page 25 SILCA S.p.A. Via Podgora, 20 (Z.I.) 31029 VITTORIO VENETO (TV) Tel. 0438 9136 Fax 0438 913800 E-mail: silca@silca.it www.silca.biz Members of the Kaba Group...
