Key stop

Clamp 'J1' is designed to house high security keys with different characteristics, i.e. keys with
shoulders, or keys without which use the tip as a stop.
The former type (with shoulders) are placed in the jaw with the stop against the clamp (stop "0")
(fig. 19). The latter (without shoulders) are placed in position on one of the grooves (1 - 2 - 3), as
shown on the display, according to the key involved.
A bar (V) (fig. 19) is also provided with the clamp to serve as a stop for the key tip.
When the key is locked in the jaw, remove the bar (V) before starting the machine.
3
2
1

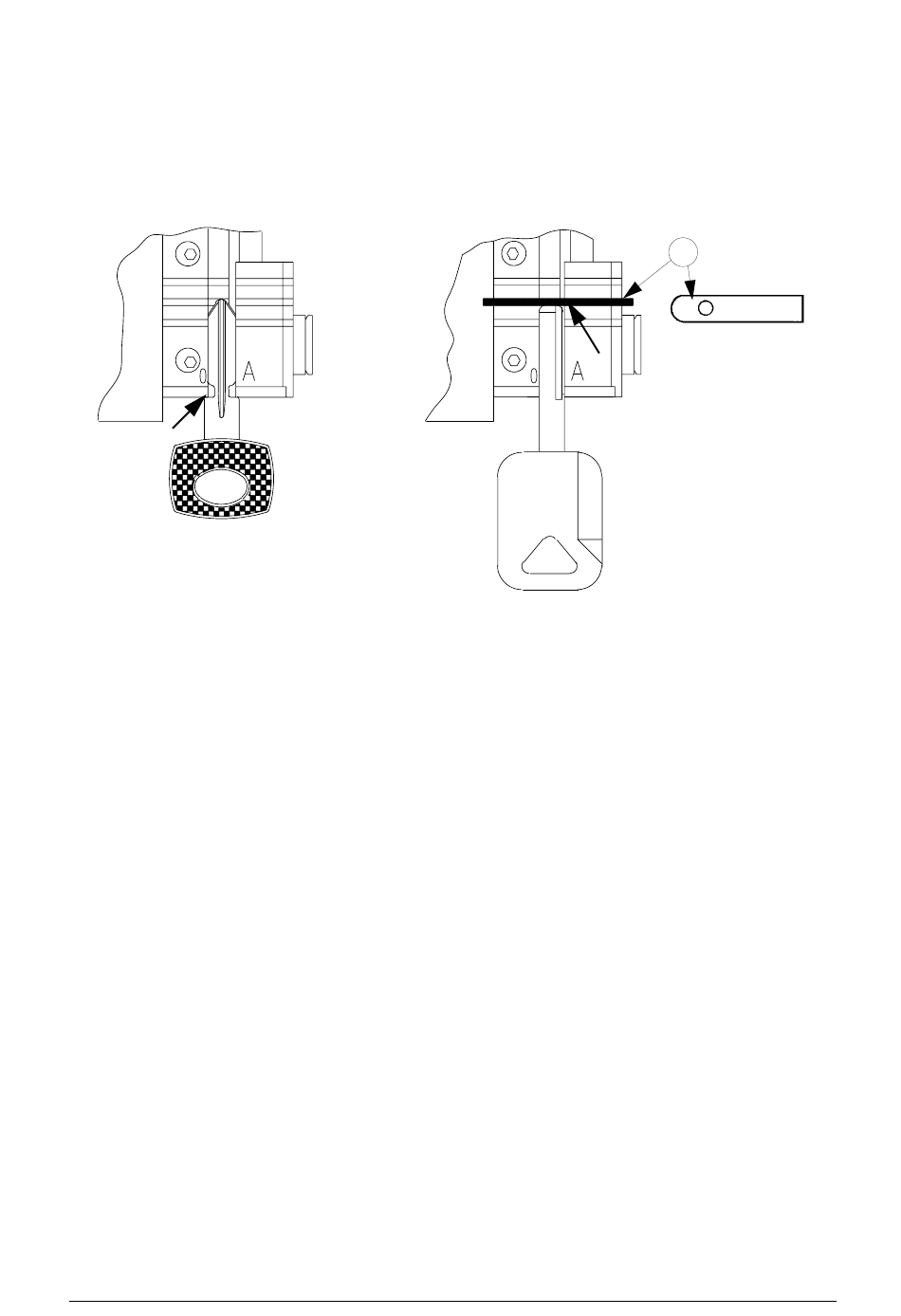

Fig. 19
