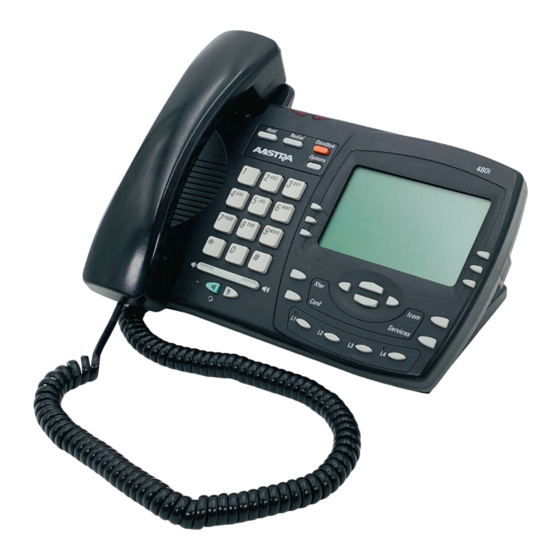

Page 1 480i, 480i CT, 9112i, 9133i SIP IP PHONE RELEASE 1.4 41-001129-00-08 ADMINISTRATOR GUIDE...
Page 2 Aastra Telecom will not accept liability for any damages and/or long distance charges, which result from unauthorized and/or unlawful use. While every effort has been made to ensure accuracy, Aastra Telecom will not be liable for technical or editorial errors or omissions contained within this documentation.
Page 3 SOFTWARE LICENSE AGREEMENT Aastra Telecom Inc., hereinafter known as "Seller", grants to Customer a personal, worldwide, non-transferable, non-sublicenseable and non-exclu- sive, restricted use license to use Software in object form solely with the Equipment for which the Software was intended. This Product may inte- grate programs, licensed to Aastra by third party Suppliers, for distribution under the terms of this agreement.
Page 5: Table Of Contents
SIP Local Dial Plan....87 SIP Registration Retry Timer..88 Configuring the IP Phone..22 Incoming/Outgoing Intercom with Basic Network Settings .....22 Auto-Answer (Intercom applica- DHCP........22 ble to 480i/480i CT only)..90 Configuring Network Settings..23 Audio Transmit and Receive Gain Configuration Server Protocol ...24 Adjustments ......92...
Page 6 Network Settings.....112 Password Settings ....114 Softkey/Programmable Key Pa- Configuration Server Settings .115 rameters........172 Type of Service (ToS)/DSCP Set- Softkey Settings for 480i and 480i tings........121 CT ........172 Virtual Local Area Network Programmable Key Settings for (VLAN) Settings ....122 9112i and 9133i....176 Network Address Translation (NAT) Settings......125...
Page 7 Appendix B: Configuring the IP Phone at the Asterisk IP PBX .186 Appendix C: Sample Configura- tion Files ........188 480i Sample Configuration File ..480i CT Sample Configuration File ........198 9112i Sample Configuration File ... 9133i Sample Configuration File ...
Page 9: About This Guide
Guide provides information on the administrators, developers and basic network setup required for partners who need to understand the IP phones, Models 480i, 480i how to install the IP phone on a SIP Cordless (480i CT), 9112i, and network. It also provides some 9133i.
Page 10: Firmware Installation Methods
• Phone keypad menu (Phone UI) - TFTP (Trivial File Transfer • Aastra Web-based user inter- Protocol) face (Aastra Web UI) Note: If you set TFTP, the configuration When the IP phone is initialized...
Page 11: Firmware/Configuration Files
MAC address of your • Aastra Web UI phone. • Configuration files (i.e., 00085D030996.cfg). Models 480i and 480i CT have 18 softkeys available to configure the IP phone. Model 9133i has 7 programmable keys. Model 9112i has 2 programmable keys.
Page 12: Configuration File Precedence
IP phone UI. This is configurable is set in the local configuration (via using the configuration files only. Aastra Web UI or IP phone UI) and For more information about this the same value was also set feature, see "Password Settings"...
Page 13: Using The Options Button
6. Press the Cancel softkey, press or press at any time to exit without saving changes. From the 480i CT handset: Â 1. Press the key to enter the Options List when the phone is not in use.
Page 14: Aastra Web Ui
For a user, the default user name is “user” and the password field is left blank. The Network Status window displays for the IP phone you are accessing. 3. You can logout of the Aastra Web UI at any time by clicking LOGOFF. The following illustration is an example of a Network Status screen for 480i IP phone.
Page 15: Basic Settings
- Handset Keys (480i CT only)- - Lines 1 through 9 Allows you to configure up to (480i, 480i CT, and 9133i only) - 15 softkeys on the handset. Allows you to set SIP authentication settings, SIP - Directory - Allows you to copy...
Page 16: Enabling/Disabling The Aastra Web Ui
Enabling/Disabling the Aastra Web UI The Aastra Web UI is enabled by default on the IP phones. A System Administrator can disable the Aastra Web UI on a single phone or on all phones if required using the configuration files. Use the following procedure to enable and disable the Aastra Web UI.
Page 17: Administrator Level Options
• SIP Settings keypad to make option selections. For all models, you can also use the Reference Aastra Web UI to change and enter values. For procedures on configuring the IP phone via the IP phone UI, see For the IP Phone UI, the "Configuring the IP Phone"...
Page 18: Options Via Configuration Files
Ethernet ports at the back for it to take affect, use the of the phone. You can IP Phone UI or the Aastra Web also view the phone’s IP and UI to restart the phone. MAC addresses. These fields are read-only.
Page 19 IP phone: -All Defaults The following information displays -Config Only for phone status in the Aastra Web UI at the location Status->System The "All Defaults" option resets Information. This information is the factory defaults for all of the settings in the aastra.cfg,...
Page 20 IP phone at Operation->Reset->Current Settings. There are two options for setting factory defaults using the Aastra Web UI: - Restore to Factory Defaults - Remove Local Configuration Settings The "Restore to Factory Defaults"...
Page 21: (Aastra Web Ui)
"Incoming/Outgoing Intercom presses. with Auto-Answer (Intercom • Park Call (users and admin) applicable to 480i/480i CT only)" The parking of a live call to a page 90. specific extension. • Pickup Parked Call For more information about key...
Page 22: Network
IP addresses. To assign static DNS Note: Specific parameters are config- addresses, disable DHCP. urable using the Aastra Web UI only and are indicated where Note: If a host name is configured on applicable. the IP phone, you must also set a DNS.
Page 23: Sip Settings
Authoriza- tion header field of the SIP REG- Note: Specific parameters are config- ISTER request. Valid values are urable using the Aastra Web UI up to 20 alphanumeric charac- only and are indicated where ters. Configurable on a global applicable.
Page 24 0 (disable) or 1 (enable) in sends all SIP messages. Default the configuration files or by is 0. Configurable on a global checking the box for this field in and per-line basis. the Aastra Web UI. Default is disabled. IP Phone SIP Admin Guide...
Page 25 • Send MAC Address in REGIS- • Registration Retry Timer TER Message Specifies the time, in seconds, Adds an "Aastra-Mac:" header that the phone waits between to the SIP REGISTER messages registration attempts when a sent from the phone to the call...
Page 26: Line Settings
The functions you can configure per-line basis. Valid values are 0 are: (RTP), 1 (SIP INFO), or 2 (BOTH). Default is 0 (RTP). Con- • line (480i, 480i CT, 9133i) figurable on a global and per- • speeddial line basis. • do not disturb •...
Page 27: Configuration Server Settings
Valid values are TFTP, Note: Any changes made using the FTP, and HTTP. Default is TFTP. Aastra Web UI or the IP phone • TFTP Server UI are not overwritten by an auto-resync update. Auto-resync IP address or qualified domain affects the configuration files name of the TFTP server.
Page 28: Firmware Update Features
Log Settings Firmware Update Features Using the Aastra Web UI, you can The IP phone uses a TFTP, FTP, or HTTP server (depending on the specify the location for which to protocol configured on the IP save files for troubleshooting...
Page 29 "Show Task and Stack Status" field. Note: The local and server configura- tion file information and the task and stack status information is for use by Aastra Technical Support for troubleshooting pur- poses. Reference For information that describes...
Page 30: Configuring The Ip Phone
This section describes the basic An administrator can configure the network settings on the IP phone. IP Phone Network and SIP options from the phone UI, from the Aastra DHCP Web UI, or the configuration files. The IP phone is capable of...
Page 31: Configuring Network Settings
If you disable DHCP on your using the configuration files, the IP phone, you need to configure the phone UI, or the Aastra Web UI. network settings manually. You can configure the Network settings using the configuration files, the IP Configuration files phone UI, or the Aastra Web UI.
Page 32: Configuration Server Protocol
IP phone uses by setting it in the configuration files, the IP phone UI, or the Aastra Web UI. Note: For DHCP to automatically populate the IP address or domain name for the TFTP server, your DHCP server must support Option 66.
Page 33 TFTP Aastra Web UI - Select TFTP. - Select Primary. - Select Primary TFTP. 1. Click on Advanced - Enter the IP address or qualified Settings->Configuration Server. domain name of the primary TFTP server 2. Select the protocol from the - Press Done to save the change.
Page 34: Advanced Network Settings
Network Address Translation (NAT) The protocols used by all IP phones do not interoperate completely with Network Address Translation (NAT). For the Aastra IP phones, specific configuration parameters allow the phone to operate while connected to a network device that enforces NAT. The following is a sample network using a NAT proxy and relevant IP phone configuration parameters.
Page 35: Configuring Nortel Nat (Optional)
You can configure Nortel NAT proxy at 63.251.195.30. Because this using the configuration files, the IP proxy/registrar is not a Nortel phone UI, or the Aastra Web UI. proxy and has no SBC or ALG functionality, the configuration must additionally include the "sip Configuration files nat ip"...
Page 36: Configuring Nat Address And Port (Optional)
You can also configure a specific NAT address and port on the IP 1. Click on Advanced Settings phone using the configuration ->Network->Advanced files, IP Phone UI, or Aastra Web Network Settings. Configuration files For specific parameters you can set in the configuration files, see "Network Address Translation...
Page 37: Virtual Lan (Optional)
VLAN parameters. If you choose to change these parameters, you can configure them using the configuration files, the IP Phone UI, or the Aastra Web The following sections describe the VLAN features you can configure on the IP phones.
Page 38 Type of Service (ToS), Quality of Notes: Service (QoS), and DiffServ QoS 1. In order for the software to successfully maintain connectivity ToS is an octet as a field in the with a network using VLAN standard IP header. It is used to functionality, the IP phone reboots if classify the traffic of the different you modify the "tagging enabled"...
Page 39 Configuring Type of Service You can change the default parameters by modifying just the (ToS)/DSCP (optional) DSCP values, just the VLAN Use the following procedures to priority values, or by modifying all configure ToS/DSCP on the IP values. phone. The following table shows the Note: ToS/DSCP is enabled by default.
Page 40 Configuring VLAN (optional) Use the following procedures to configure VLAN on the IP phone. Aastra Web UI Note: VLAN is disabled by default. When you enable VLAN, the IP 1. Click on Advanced phones use the default settings Settings->Network->Type of for each VLAN parameter.
Page 41 Restart to reboot the phone for changes. the VLAN features to take 9. Click on Operation->Reset. affect. 10.In the "Restart Phone" field click to restart the IP phone. Aastra Web UI 1. Click on Advanced Settings->Network->VLAN. IP Phone SIP Admin Guide...
Page 42: Network Time Servers
To use NTP, you must enable it (SIP) settings to register at the IP using the configuration files or the PBX. Aastra Web UI. You can specify up The IP phone configuration defines to 3 time servers in your network. network and user account...
Page 43 To configure though the global parameters voicemail see "Voicemail (480i/ configure a SIP registrar, Line3 on 480i CT only)" page Specific sets of SIP parameters are the phone ignores all global inter-dependent with each other. network block parameters. Since...
Page 44: Sip Server (Srv) Lookup
2. Select SIP Settings. You can configure SRV lookup 3. Select Proxy Server (or Proxy IP using the configuration files for 480i/480i CT) and enter an IP (aastra.cfg and <mac>.cfg) only. address or fully qualified host The parameters to use are: name for the SIP proxy server.
Page 45 If the Registrar IP address is set to 0.0.0.0 for a per-line basis (i.e, line 1, line 2, etc.), then the regis- Aastra Web UI ter request is not sent, the "No Service" message does not dis- 1. For global configuration, click play, and the message waiting on Advanced Settings->Global...
Page 46 IP phone, to be sent to an Using the configuration files or the outbound proxy server. Aastra Web UI, you can set more Note: If you configure an outbound advanced SIP settings on the IP proxy and registrar for a specific...
Page 47 4. In the "Timer 1 and Timer 2" fields, enter a time, in milliseconds, that will apply to Aastra Web UI an IP phone session. These tim- ers are SIP transaction layer timers defined in RFC 3261. Note: You can configure Advanced SIP settings on a global-basis only.
Page 48: Real-Time Transport
• Parametric CODEC: G.729a con- each media stream. jugate structure - algebraic code excited linear prediction On the Aastra IP phone, the initial (CS_ACELP). port used as the starting point for All Codecs have a sampling rate of RTP/RTCP port allocation can be 8,000 samples per second, and configured using "RTP Port Base".
Page 49 Dual-Tone Multifrequency Ptime (packetization time) is a (DTMF) mode according to measurment of the duration of RFC2833. In the Aastra Web UI, PCM data within each RTP packet you can enable or disable this sent to the destination, and hence feature as required.
Page 50 1. Press won the phone to basis using the configuration files enter the Options List. or the Aastra Web UI. 2. Select SIP Settings. Silence Suppression 3. Select RTP Port Base to change In IP telephony, silence on a line the RTP port base setting.
Page 51 5. Enter a "Customized Codec Preference List" which allows you to use the preferred Codecs for this IP phone. For example, enter the following on one line: payload=8;ptime=10; silsupp=on; payload=0;ptime=10; silsupp=off Valid values are: Attribute Value payload 0 for G.711 u- 8 for G.711 a- 18 for G.729a ptime...
Page 52: Operational Features
• XML Customized Services • Busy Lamp Field (BLF) (480i/ Allows you to customize the IP 480i CT/9133i only) - Softkey phone UI using XML applica- setting that allows extensions to tions be monitored for state changes.
Page 53: User Passwords
Intercom call. The call can be phone using the configuration controlled either locally (phone- side) or by the SIP server files, the IP phone UI, or the Aastra (server-side). You can also Web UI. Use the following enable/disable auto-answer and procedures to change the user mute/unmute the microphone.
Page 54: Administrator Passwords
Hard Keys 2. In the "Current Password" field, enter the current user password. There are hard keys on your 3. In the "New Password" field, phone, such as Hold, Redial, Xfer, enter the new user password. Icom and Conf (Hold and Icom not 4.
Page 55 Aastra Web UI. Note: If you configure the Redial and Conf keys for speeddialing on the 480i CT Base Station, the 2.In the Key Mapping section, Redial and Conf keys on the enter a number in the "Map 480i CT handset retain their orig- Redial Key To"...
Page 56: Softkeys/Programmable Keys
RTP (option for Web UI only). stream (for example, when the • line (480i, 480i CT, 9133i) - Indi- call is not on hold). cates softkey or programmable • park- Indicates the softkey is set key is configured for line use.
Page 57 A softkey type of "empty" does not display on the idle screen at all. (For more information about the softkey type of "empty" see "Softkey Set- tings for 480i and 480i CT" page 172. IP Phone SIP Admin Guide...
Page 58 Key 5 Speeddial displays for softkey6. Connected displays as applicable. Softkeys and programmable keys are configurable using the Aastra Web UI or the configuration files. The following table provides the number of softkeys and programmable keys you can configure, and the number of lines available for each type of phone.
Page 59 "Soft- key/Programmable Key Param- eters" page 172. Aastra Web UI 3. For the 480i/480i CT, in the "Label" field, enter a label for 1. For the 480i/480i CT, click on the softkey. Operation->Softkeys and XML. 4. In the "Value" field, enter a value to associate with the soft- key or programmable key.
Page 60 You can use You can program up to 15 feature the Aastra Web UI to configure the keys on the 480i CT handset with handset keys. specific functions using the Aastra Web UI. The following table identifies the functions available for all 15 handset keys and the default functions for each key.
Page 61 Feature Key Programming Guidelines The following are guidelines to use when programming the feature keys on the handset: • All handsets paired with the same Base Station have the same pro- grammed functions since the web interface applies the functions to all the handsets paired with that base.
Page 62 Programming Feature Keys You can program up to 15 feature keys on the 480i CT IP phone using the Aastra Web UI. Use the following procedure to program the feature keys on your 480i CT Base Station and all paired handsets.
Page 63: Suppressing Dtmf Playback
Suppressing check box. (Disable this field by DTMF playback can be configured unchecking the box). Default is disabled. using the Aastra Web UI and the 4. Click to save your set- configuration files. tings. These changes are not dynamic.
Page 64: Busy Lamp Field (Blf) (480I/480I Ct/9133I Only)
(For use with Asterisk) user is on an active call then a small telephone icon is shown with On the 480i and 480i CT, the busy the handset off-hook. and idle indicators show on the IP On the 9133i phone, the LED lights...
Page 65 172. extensions.conf file for each target extension being monitored. Aastra Web UI For example: 1. For the 480i/480i CT, click on exten -> 9995551212,hint,SIP/ Operation->Softkeys 9995551212 Add the following in the Asterisk and XML. sip.conf file for each subscriber if it is not defined already.
Page 66: Directed Call Pickup
Directed Call Pickup 3. For the 480i, 480i CT, or 9133i, in the "Type" field, select "BLF" (BLF Call Interception) (Asterisk) or "BLF\List" (Broad- (480i/480i CT/9133i) Soft BroadWorks). Directed call pickup is an 4. For the 480i/480i CT, in the "Label"...
Page 67: Blf Subscription Period (480I/480I Ct/9133I)
BLF Subscription Period (480i/480i CT/9133i) Aastra Web UI On the IP phones, you can set the time period, in seconds, that the IP phone resubscribes the BLF 1.Click on Basic Settings-> Preferences->Directed Call subscription service after a Pickup Settings. software/firmware upgrade or after a reboot of the IP phone.
Page 68: Do Not Disturb (Dnd)
"Do not Disturb Aastra Web UI (DND). You can configure DND on softkeys and programmable keys 1.Click on Advanced Settings-> using the Aastra Web UI or the Global SIP->Advanced SIP configuration files. Settings. If DND is configured on the phone, the softkey or programmable key switches DND ON and OFF.
Page 69: Bridged Line Appearance (Bla) (480I/480I Ct/9133I Only)
Every BLA DA is independent from Bridged Line Appearance (BLA) each other and follows the same (480i/480i CT/9133i only) rules as "a single BLA group". A SIP bridge line appearance • As multiple instances of a BLA (BLA) on the IP phones allows DA - A "x-line-id"...
Page 70 BLA DA can be configured on a You configure BLA on a per-line global basis or on a per-line basis basis in the Aastra Web UI using on the IP phones using the Aastra the following fields at Advanced Web UI or the configuration files.
Page 71 • Line Mode • Phone Number • BLA Number Sylantro servers and ININ servers require specific configuration methods for per-line configurations. For Sylantro Server When configuring the BLA feature on a per-ine basis for a Sylantro server, the value set for the "sip lineN bla number"...
Page 72 138. dynamic. You must restart your IP phone for the changes to take affect. 6.Click on Operation->Reset. Aastra Web UI 7.In the "Restart Phone" field click 1. For global configuration, click to restart the IP phone. on Advanced Settings->Global SIP->Basic SIP Authentication...
Page 73 Using a BLA Line on the IP Phone If you have either a global or per- line BLA configuration, and you want to share a call on the line with a BLA group, you need to press the Hold button before sharing the call with the group.
Page 74: Park Calls/Pick Up Parked Calls
Calls You can configure a static The IP phones (including the configuration for parking and 480i CT handset) have a park and picking up a call using the Aastra pickup call feature that allows you Web UI at Basic Settings->...
Page 75 IP phones (480i/480i CT/9112i/ 9133i). Aastra Web UI For the 480i/480i CT you can set a softkey as "Park" or "Pickup" and 1. Click on Basic Settings-> then: Preferences->General. • specify a customized label to display on the Phone UI •...
Page 76 • On the 480i CT, the customized On 9112i/9133i labels apply to the base unit • When a call comes in, and you only. On the 480i CT handset, pickup the handset, you can pressing Ï displays the default press the applicable "Park" pro- labels of "Park"...
Page 77 (and specify a line for the default state of the Pickup 9133i). configuration is "idle, outgoing". Note: Applicable values depend on the The 480i CT handsets use the park/ server in your network (Asterisk, pickup configuration enabled at BroadWorks, Sylantro, ININ Operation->Handset Keys in the PBX.
Page 78 For specific parameters you can set Note: For values to enter in this field, in the configuration files, see see the table "Park/Pickup Call "Softkey Settings for 480i and 480i Server Configuration Values" page CT" page 172 "Programmable Key Settings for 10.Click...
Page 79 - Server announces the extension number where the call has been parked. Once the call is parked, press the y key to complete For 480i CT Handset parking. 1. Click on Operation->Handset For BroadWorks Server Keys. - After you hear the greeting from...
Page 80: Call Forwarding
You can configure call answered in the specified number of forwarding on a phone-wide basis rings or on multi-line phones (480i/480i Busy No Phone forwards the CT/9133i), on a per-line basis. If Answer call if either the line is...
Page 81 1, all "Call want your incoming calls to be Forward" options are removed forwarded. from the Aastra Web UI and the IP Note: If you leave the "Number" field Phone UI, preventing the ability to blank, call forwarding is dis- configure Call Fowarding.
Page 82 Forward. mode you want to set on this line. Note: To disable call forwarding in the Aastra Web UI, set the mode to OFF and remove the phone num- ber in the "Forward Number" field. Note: To force a line to use the global settings, set the "Mode"...
Page 83: Callers List
When enabled, you can view, information to the Caller List. For scroll, and delete line items in the 480i and 480i CT phones, the Callers List from the IP phone UI. "Caller List" option on the IP You can also directly dial from a...
Page 84 Aastra Web UI. 7. To exit the Callers List, press the b key. Aastra Web UI On the 480i/480i CT: 1. Click on Operation->Directory. 1. Press x on the phone to display the Services menu. Press the key to enter the Callers List directly.
Page 85: Missed Calls Indicator
The line item is deleted from the configuration files: Callers List. • missed calls indicator disabled On the 480i/480i CT: Valid values for this parameter are 1. Press x on the phone to 0 (enabled) and 1 (disabled). If this display the Services menu.
Page 86: Directory List
IP phone UI and the access to the Directory List on the Directory List key is ignored when IP phones using the following pressed. On the 480i and 480i CT parameter in the configuration the "Directory" option is also files: removed from the "Services"...
Page 87 Server to IP Phone Download The following directory entries are considered valid: You can populate your IP phone Directory List with server directory # our company's directory files. To activate this feature, you # updated 1 jan 2012 need to add the following # mode = private, by default parameters to the configuration files:...
Page 88 10.To exit the Directory List, press the 3 Directory key again. On the 9112i/9133i: 1. Press 3 Directory on the phone On the 480i/480i CT: to enter the Directory List. 1. Press x on the phone to Note: If no key is pressed within display the Services menu.
Page 89 3 Save softkey after each field For specific parameters you can set entry. in the configuration files for downloading the Directory List, Note: The 480i/480i CT allows up to 200 "Directory Settings" directory entries. page 152. 8. For the 480i CT, press the Pub-...
Page 90: Voicemail (480I/480I Ct Only)
(480i/480i CT only) You configure Voicemail in the The Voicemail feature on the 480i/ configuration files to dial a specific 480i CT IP phones allow you to number to access an existing configure lines with phone voicemail account. The user then...
Page 91: Xml Customized Services
XML: 9133i IP phones. The phone performs an HTTP GET on the URI • XML tags are not predefined. configured in the Aastra Web UI or You must define your own tags configuation files. • XML uses a Document Type...
Page 92 Aastra Web UI against a list of trusted hosts (or domain names) configured via the Aastra Web UI (parameter called On the 480i/480i CT XML Push Server List) or the 1. Click on Operation->...
Page 93 IP Menu. In the illustration above, phone and push the HTTP the XML Application Title is Server List. "Aastra Telecom". Note: No posting is performed if a ses- 7. Click to save your sion times out. changes. The XML application is...
Page 94 Use the following procedure to use the XML feature on the IP phone. IP Phone UI On the 480i/480i CT: 1. Press x on the phone to display the Services menu. 2. Select "Custom Features".
Page 95: Sip Local Dial Plan
The IP phones have local dial plan handset or press a key to make a capacity. You configure the SIP call. Local Dial Plan using the Aastra You can configure the dial plan Web UI or the configuration files. terminator using Aastra Web UI or The IP phone SIP local dial plan the configuration files.
Page 96: Sip Registration Retry Timer
For the 480i/480i CT (optional) In addition to configuring the dial plan and dial plan terminator Aastra Web UI above, the 480i/480i CT also allows you to configure names that are 1. Click on Basic Settings-> displayed on the idle screen rather than the user name and phone Preferences.
Page 97 2. Enter a value, in seconds, from 120 (2 min) to 3600 (1 hour) in the "BLF Subscription Period" Aastra Web UI field. 3.Click to save your 1.Click on Advanced Settings-> changes. Global SIP->Advanced SIP 4.Click on Operation->Reset. Settings. 5.In the "Restart Phone" field click to restart the IP phone.
Page 98: Incoming/Outgoing Intercom With Auto-Answer (Intercom Applicable To 480I/480I Ct Only)
Incoming Intercom Calls Incoming/Outgoing Intercom with Auto-Answer (Intercom On incoming intercom calls, you applicable to 480i/480i CT only) can enable (turn ON) or disable (turn OFF) the microphone on the The Intercom feature on the IP IP phone. You can also enable or phones allows you to press the disable auto-answer.
Page 99 Incoming Intercom Settings 1. Click on Basic Settings-> Aastra Web UI Preferences->Incoming Inter- com Settings. Outgoing Intercom Settings 1. Click on Basic Settings-> Preferences->Outgoing Inter- com Settings. 2. The "Microphone Mute" field is enabled by default. The micro- phone is muted on the IP phone for Intercom calls made by the 2.
Page 100: Audio Transmit And Receive Gain Adjustments
The default setting for these up again. parameters is 0 (zero). Headset - Calls can be Note: Aastra Telecom recommends you made or received using leave the default of 0 (zero) as the the headset. Calls can be settings for these parameters.
Page 101 Configuring Audio Transmit and Receive Gain Adjustments You can configure the audio transmit and gain adjustments using the configuration files only. Use the following procedure to configure this feature. Configuration files For specific parameters you can set in the configuration files, see "Audio Transmit and Receive Gain Adjustment Settings"...
Page 102: Ring Tones And Tone Sets
- ring cadence pattern 1 (Tone 2) You configure ring tones and tone 2 (Tone 3) 3 (Tone 4) sets using the Aastra Web UI, IP 4 (Tone 5) Phone UI, or configuration files. 5 (Silent) However, when using the IP phone...
Page 103 Configuring Ring Tones and Tone Sets Aastra Web UI Use the following procedures to configure ring tones and tone sets 1. Click on Basic Settings-> on the IP phones. Preferences. Configuration files For specific parameters you can set in the configuration files for ring tones, see "Ring Tone and Tone Set...
Page 104: Priority Alerting
Asterisk, Broadworks, and Sylantro alert-internal alert-emergency servers using the configuration alert-priority files and the Aastra Web UI. Configuration of priority alerting is When the ring tone keywords on a global-basis only. appear in an "Alert-Info" header How Priority Alerting Works...
Page 105 Ring Tone Patterns alert Normal ringing emergency (default) In IP Telephony, different ringing Bellcore-dr2 patterns have different frequencies Bellcore-dr3 Bellcore-dr4 and cadences. Ring cadence is the Bellcore-dr5 ringing pattern heard by the called Silent party, before they pick up the call. alert Normal ringing priority...
Page 106 The following table identifies the different Bellcore ring tone patterns and cadences. Minimum Nominal Maximum Pattern Duration Duration Duration Bellcore Tone Pattern Cadence (ms) (ms) (ms) (Standard) Ringing 2s On 1800 2000 2200 Silent 4s Off 3600 4000 4400 Bellcore-dr2 Ringing Long 1025...
Page 107 For Sylantro servers, call waiting 6. Select a ring tone pattern for the tones are specified by the Bellcore "Emergency" field tones you configure in the Aastra 7. Select a ring tone pattern for the Web UI or the configuration files. "Priority" field...
Page 108: Stuttered Dial Tone
You can configure this feature You can configure this feature using the configuration files and using the configuration files and the Aastra Web UI. the Aastra Web UI. Configuring Stuttered Dial Tone Configuring Call Waiting Tone Use the folllowing procedures to...
Page 109: Language
2. Select Language. 3. Select In English (English), En francais (French), En espanol (Spanish), In Deutsch (German), or In italiano (Italian). Note: Valid values for the 480i CT are English, French, and Spanish only. IP Phone SIP Admin Guide 101...
Page 110: Advanced Operational Features
MAC Address/Line Number in user configures the phones via the REGISTER Messages - Allows Aastra Web UI or the IP Phone UI. you to enable or disable the sending of the MAC address The following two configurable and line number from the IP...
Page 111: Sip Message Sequence For Blind Transfer
178. In the 1.4 and later releases, the CANCEL is now sent before the REFER message. Aastra Web UI The following parameter allows the system administrator to force 1. Click on Advanced Settings-> the phone to use the Blind Transfer Global SIP->Advanced SIP Set-...
Page 112: Update Caller Id During A Call
Update Caller ID During a Call A boot counter increments after each faulty boot. When the counter It is possible for a proxy or call reaches a predetermined value, it server to update the Caller ID forces Web recovery mode. The information that displays on the counter is reset to zero upon a phone during a call, by modifying...
Page 113: Encryption And The Ip Phone
(via secu- with a unique key. rity.tuz or pre-provisioned on From a Microsoft Windows the IP phone) the aastra.cfg and command line, the System <mac>.cfg files are ignored, and only the encrypted equivalent Administrator uses an Aastra- files aastra.tuz and <mac>.tuz...
Page 114: Procedure To Encrypt/Decrypt Configuration Files
1. At the prompt, enter anacrypt.exe and press <Return>. C:\> anacrypt.exe -h Provides encryption and decryption of the configuration files used for the family of Aastra IP phones, using 56bit triple-DES and site-specific keys. Copyright (c) 2005, Aastra Technologies, Ltd.
Page 115 C:\> anacrypt aastra.tuz -o CON: -p 1234abcd Example 4 Encrypt a site-specific keyfile prompting user for password and write the encrypted file directly into the TFTP server root directory: C:\> anacrypt security.cfg -o d:\tftp\root Example 5 Encrypt all config files in C:\data using password 1234abcd and write the encrypted files directly into the TFTP server root directory: C:\>...
Page 116: Firmware Upgrade
Note: This procedure allows you to download the <phone model.st> • Manual firmware update using file from a TFTP server even if the Aastra Web UI (TFTP only). your phone is configured to use • Manual update of firmware and HTTP or FTP.
Page 117: Manual Firmware And Configuration File Update
Show. When configuring via the Aastra 3. Select Restart Phone. Web UI, the administrator sets the 4. On the 480i and 480i CT, press following parameters: Restart to restart the phone. Mode 5. On the 9112i and 9133i, press # Time to restart the phone.
Page 118 1. Click on Advanced Settings ->Configuration Server Notes: ->Auto-Resync.. 1. If a user is accessing the Aastra Web UI, they are not informed of an auto- reboot. 2. Any changes made using the Aastra Web UI or the IP phone UI are not overwritten by an auto-resync update.
Page 119: Setting Parameters In Configuration Files
Setting Parameters in Configuration Files You can set specific configuration parameters in the configuration files for configuring you IP phone. The aastra.cfg and <mac>.cfg files are stored on the server. The aastra.cfg file stores global IP phone configuration settings. The <mac>.cfg file stores configuration settings specific to the IP phone with that MAC address.
Page 120: Operational, Basic, And Advanced Parameters
IP phone. Each parameter table includes the name of the parameter, a description, the format, default value, range, and example. The table also provides the method for which the parameters can be configured (IP phone UI, Aastra Web UI, or configuration files). Network Settings Parameter – dhcp IP phone UI Options->Network Settings...
Page 121 Parameter – IP phone UI Options->Network Settings default gateway Aastra Web UI Advanced Settings->Network Configuration Files aastra.cfg, <mac>.cfg Gateway (in Web UI) Description The IP address of the network’s gateway or default router IP address. Format IP address Default Value 1.0.0.1...
Page 122: Password Settings
22222 Range Up to 63 alphanumeric characters Example admin password: 123456 Parameter – IP phone UI Options->User Password Aastra Web UI Operation->User Password user password Configuration Files aastra.cfg, <mac>.cfg Current Password (in Web UI) Description Allows you to set a new user password for the IP phone.
Page 123: Configuration Server Settings
<mac>.cfg web interface enabled Description Enables or disables the Aastra Web UI for a single IP phone when placed in the <mac>.cfg file. Enables or disables the Aastra Web UI for all phones when placed in the aastra.cfg file.
Page 124 Parameter – IP phone UI Options->Network-> TFTP Server->Alernate TFTP alternative tftp Aastra Web UI Advanced Settings-> server Configuration Server Configuration Files aastra.cfg, <mac>.cfg Alternate TFTP (in Web UI) Description The alternate TFTP server’s IP address or qualified domain name. This will become effective after this configuration file has been downloaded into the phone.
Page 125 Parameter – IP phone UI Options->Network->FTP Server Aastra Web UI Advanced Settings-> ftp username Configuration Server Configuration Files aastra.cfg, <mac>.cfg FTP User Name (in Web UI) Description The username to enter for accessing the FTP server. This will become effective after this configuration file has been downloaded into the phone.
Page 126 HTTP root directory, the relative path to that sub-directory should be entered in this field. Format dir/dir/dir Default Value Not Applicable Range Up to 63 alphanumeric characters Example http path: ipphones/480i IP Phone SIP Admin Guide...
Page 127 Notes: 1. If a user is accessing the Aastra Web UI, they are not informed of an auto-reboot. 2. Any changes made using the Aastra Web UI or the IP phone UI are not overwritten by an auto-resync update.
Page 128 2. The value of 00:00 is 12:00 A.M. 3. When selecting a value for this parameter in the Aastra Web UI, the values are in 30-minute increments only. 4. When entering a value for this parameter using the configuration files, the value can be entered using minute values from 00 to 59 (for example, the auto resync time can be entered as 02:56).
Page 129: Type Of Service (Tos)/Dscp Settings
Type of Service (ToS)/DSCP Settings Parameter – IP phone UI Options->Network-> Type of Service->SIP tos sip Aastra Web UI Advanced Settings->Network ->Type of Service,DSCP Configuration Files aastra.cfg, <mac>.cfg Description The Differentiated Services Code Point (DSCP) for SIP packets. Format Integer...
Page 130: Virtual Local Area Network (Vlan) Settings
Virtual Local Area Network (VLAN) Settings Parameter – IP phone UI Options->Network->VLAN ->VLAN Enable tagging enabled Aastra Web UI Advanced Settings->Network ->VLAN->Global Configuration Files aastra.cfg, <mac>.cfg VLAN Enable (in Web UI) Description Enables or disables VLAN on the IP phones.
Page 131 Options->Network->VLAN ->Phone->Priority->RTP SIP Priority RTP Priority Options->Network->VLAN RTCP Priority ->Phone->Priority->RTCP (for Port 0 in Aastra Web UI Advanced Settings->Network Web UI) ->VLAN->Port 0 Configuration Files aastra.cfg, <mac>.cfg Description This parameter is based on the Type of Service (ToS), Differentiated Services Code Point (DSCP) setting for SIP (tos sip parameter), RTP (tos rtp parameter) and RTCP (tos rtcp parameter).
Page 132 Parameter – IP phone UI Options->Network->VLAN ->Phone->Priority->Other priority non-ip Aastra Web UI Advanced Settings->Network ->VLAN->Global Configuration Files aastra.cfg, <mac>.cfg Priority, Non-IP Packet (in Web UI) Description Specifies the priority value for non-IP packets. Format Integer Default Value Range 0 to 7...
Page 133: Network Address Translation (Nat) Settings
Network Address Translation (NAT) Settings Parameter – IP phone UI Options->SIP Settings Aastra Web UI Advanced Settings->Network sip nat ip Configuration Files aastra.cfg, <mac>.cfg NAT IP (in Web UI) Description IP address the network device that enforces NAT. Format IP Address Default Value 0.0.0.0...
Page 134: Time Server Settings
Parameter – Aastra Web UI Advanced Settings->Network Configuration Files aastra.cfg, <mac>.cfg sip nortel nat timer Nortel NAT Timer (in Web UI) Description The interval, in seconds, that the phone sends SIP ping requests to the Nortel proxy. Format Integer Default Value...
Page 135 Parameter – Aastra Web UI Advanced Settings->Network Configuration Files aastra.cfg, <mac>.cfg time server2 Time Server 2 (in Web UI) Description The secondary time server's IP address or qualified domain name. If the time server is enabled, and the primary time server is not configured or cannot be accessed the value for time server2 will be used to request the time from.
Page 136: (In Web Ui) Description
Parameter – IP phone UI Options->Time and Date Configuration Files aastra.cfg, <mac>.cfg date format Description This parameter allows the user to change the date to various formats. Format Integer Default Value Range Following table shows the format for the corresponding date format values:...
Page 137: Sip Local Dial Plan Settings
SIP Local Dial Plan Settings (480i/480i CT only) Parameter – Aastra Web UI Basic Settings->Preferences Configuration Files aastra.cfg, <mac>.cfg displayName1 Idle Display Name 1 (in Web UI) Description The name displayed on the idle screen rather than the user name and phone number.
Page 138 Parameter – Aastra Web UI Basic Settings->Preferences Configuration Files aastra.cfg, <mac>.cfg sip dial plan Local Dial Plan (in Web UI) Description A dial plan describes the number and pattern of digits that a user dials to reach a particular telephone number.
Page 139: Sip Registration Retry Timer Setting
Parameter – Aastra Web UI Basic Settings->Preferences Configuration Files aastra.cfg, <mac>.cfg sip digit timeout Digit Timeout (in Web UI) Description Represents the time, in seconds, to configure the timeout between consecutive key presses. Format Integer Default Value Range Not Applicable...
Page 140: Sip Basic, Global Settings
Parameter – Aastra Web UI Advanced Settings->Global SIP-> Basic SIP Settings sip screen name Configuration Files aastra.cfg, <mac>.cfg Screen Name (in Web UI) Description Used to display text on the screen of the phone. You may want to set this parameter to display the phone user's name.
Page 141 Parameter – Aastra Web UI Advanced Settings->Global SIP-> sip mode Basic SIP Settings Configuration Files aastra.cfg, <mac>.cfg Line mode (in Web UI) Description Allows you to configure the mode of the line. Applicable values are: • Generic - Normal line •...
Page 142 Options->SIP Settings Aastra Web UI Advanced Settings->Global SIP-> sip proxy ip Basic SIP Settings Configuration Files aastra.cfg, <mac>.cfg Proxy Server (in Web UI) Description The IP address of the SIP proxy server for which the IP phone uses to send all SIP requests.
Page 143 IP Phone UI Options->SIP Settings Aastra Web UI Advanced Settings->Global SIP-> sip registrar ip Basic SIP Settings Configuration Files aastra.cfg, <mac>.cfg Registrar Server (in Web UI) Description The address of the registrar for which the IP phone uses to send REGISTER requests.
Page 144 Parameter – Aastra Web UI Advanced Settings->Global SIP-> Basic SIP Settings sip registration period Configuration Files aastra.cfg, <mac>.cfg Registration Period (in Web UI) Description The requested registration period, in seconds, from the registrar. Format Integer Default Value Range 0 to 2147483647...
Page 145 Parameter – Aastra Web UI Advanced Settings->Global SIP ->Advanced SIP Settings sip outbound proxy Configuration Files aastra.cfg, <mac>.cfg outbound proxy server (in Web UI) Description This is the address of the outbound proxy server. All SIP messages originating from the phone are sent to this server.
Page 146: Sip Basic, Per-Line Settings
SIP Basic, Per-Line Settings The following parameters are SIP per-line settings. The value of "N" is 1 - 9 for 480i, 480i CT, and 9133i. The value of "N" is 1 for 9112i. Parameter – Aastra Web UI Advanced Settings->Line 1 thru 9...
Page 147 - all call activity goes to one phone) • BLA - Bridged Line Appearance (BLA) line. Note: If the softkeys on the 480i/480i CT or the pro- grammable keys on the 9133i are set as line keys, and you configure that line key for BLA, the key is configured to use BLA.
Page 148 Parameter – IP Phone UI Options->SIP Settings sip lineN proxy ip Aastra Web UI Advanced Settings->Line 1 thru 9 (480i/480i CT/9133i) Aastra Web UI Advanced Settings->Global SIP Proxy Server (9112i) (in Web UI) Configuration Filesaastra.cfg, <mac>.cfg Description The IP address of the SIP proxy server for which the IP phone uses to send all SIP requests.
Page 149 Parameter – IP Phone UI Options->SIP Settings Aastra Web UI Advanced Settings->Line 1 thru 9 sip lineN registrar ip (480i/480i CT/9133i) Aastra Web UI Advanced Settings->Global SIP (9112i) Registrar Server Configuration Filesaastra.cfg, <mac>.cfg (in Web UI) Description The address of the registrar for which the IP phone uses to send REGISTER requests.
Page 150 Parameter – Aastra Web UI Advanced Settings->Line 1 thru 9 (480i/480i CT/9133i) sip lineN registration Aastra Web UI Advanced Settings->Global SIP period (9112i) Configuration Filesaastra.cfg, <mac>.cfg Registration Period (in Web UI) Description The requested registration period, in seconds, from the registrar.
Page 151 (480i/480i CT/9133i) sip lineN bla number Aastra Web UI Advanced Settings->Global SIP (9112i) Configuration Files aastra.cfg, <mac>.cfg BLA Number (in Web UI) Description Allows you to assign a phone number that is shared on specific lines on the IP phone.
Page 152 Aastra Web UI Advanced Settings->Global SIP proxy (9112i) Configuration Files aastra.cfg, <mac>.cfg Outbound Proxy Server (in Web UI) Description This is the address of the outbound proxy server. All SIP messages originating from the phone are sent to this server.
Page 153: Advanced Sip Settings
Advanced SIP Settings Parameter – Aastra Web UI Advanced Settings->Global SIP ->Advanced SIP Settings sip explicit mwi Configuration Files aastra.cfg, <mac>.cfg subscription Explicit MWI Subscription (in Web UI) Description If the IP phone has a message waiting subscription with the Service Provider, a Message Waiting Indicator (MWI) (LED or display icon) tells the user there is a message on the IP Phone.
Page 154 Parameter – Aastra Web UI Advanced Settings->Global SIP ->Advanced SIP Settings sip T1 timer Configuration Files aastra.cfg, <mac>.cfg T1 Timer (in Web UI) Description This timer is a SIP transaction layer timer defined in RFC 3261. Timer 1 is an estimate of the round-trip time (RTT).
Page 155 Parameter – Aastra Web UI Advanced Settings->Global SIP ->Advanced SIP Settings sip transaction timer Configuration Files aastra.cfg, <mac>.cfg Transaction Timer (in Web UI) Description The amount of time, in milliseconds that the phone allows the callserver (registrar/proxy) to respond to SIP messages that it sends.
Page 156: Rtp, Codec, Dtmf Global Settings
->RTP Port Base sip rtp port Aastra Web UI Advanced Settings->Global SIP ->RTP Settings RTP Port Base Configuration Files aastra.cfg, <mac>.cfg (in IP Phone UI) RTP Port (in Web UI) Description Indicates the port through which the RTP packets are sent.
Page 157 Parameter – Aastra Web UI Advanced Settings->Global SIP ->RTP Settings sip customized codec Configuration Files aastra.cfg, <mac>.cfg Customized Codec Preference List (in Web UI) Description Specifies a customized Codec preference list which allows you to use the preferred Codecs for this IP phone.
Page 158: Dtmf Per-Line Settings
Parameter – Aastra Web UI Advanced Settings->Global SIP ->RTP Settings sip lineN dtmf method Configuration Files aastra.cfg, <mac>.cfg DTMF Method (in Web UI) Description Sets the Dual-tone multifrequency (DTMF) method to use on the IP phone for a specific line.
Page 159: Voicemail Settings
Voicemail Settings Parameter – Configuration Filesaastra.cfg, <mac>.cfg sip lineN vmail Note: The value of "N" is 1 - 9 for 480i, 480i CT, and 9133i. The value of "N" is 1 for 9112i. Description Use this parameter in the <mac>.cfg file to configure the phone to dial a specific number to access an existing voicemail account on a Service Provider’s...
Page 160: Directory Settings
Directory List via the IP phone UI. If this parameter is set to 1, the Directory List does not display on the IP phone and the Directory key is disabled. On the 480i and 480i CT the "Directory" option is also removed from the "Services"...
Page 161: Callers List Settings
If this parameter is set to 1, the IP phone does not save any caller information to the Caller List. For 480i and 480i CT phones, the "Caller List" option on the IP phone is removed from the Services...
Page 162: Missed Calls Indicator Settings
Missed Calls Indicator Settings Parameter – Configuration Files aastra.cfg, <mac>.cfg missed calls indicator disabled Description Enables or disables the Missed Calls Indicator. If the "missed calls indicator disabled" parame.ter is set to 0, the indicator increments as unanswered calls come into the IP phone.
Page 163: Xml Settings
Format HTTP server path or fully qualified Domain Name Default Value Not Applicable Range Not Applicable Example xml application URI: http://172.16.96.63/aastra/ internet.php Parameter – Aastra Web UI Operation->Softkeys and XML-> Services xml application title Configuration Filesaastra.cfg, <mac>.cfg XML Application...
Page 164 Parameter – Aastra Web UI Advanced Settings-> Configuration Server xml application post Configuration Filesaastra.cfg, <mac>.cfg list XML Push Server List (in Web UI) Description The HTTP server that is pushing XML applications to the IP phone. Format IP address in dotted decimal format and/or...
Page 165: Ring Tone And Tone Set Global Settings
Default Value Aastra Web UI : Tone 1 IP Phone UI: Tone 1 Configuration Files: 0 (Tone 1) Range Aastra Web UI & IP Phone UI Tone 1 Tone 2 Tone 3 Tone 4 Tone 5 Silent Configuration Files 0 (Tone 1)
Page 166: Ring Tone Per-Line Settings
Parameter – Aastra Web UI: Basic Settings->Preferences-> lineN ring tone Ring Tones Configuration Files aastra.cfg, <mac>.cfg Line N (in Web UI) Description Sets the type of ring tone on the IP phone on a per-line basis. Ring tone can be set to one of six distinct rings.
Page 167: Call Waiting Tone Setting
Call Waiting Tone Setting Parameter – Aastra Web UI: Basic Settings->Preferences-> call waiting tone General Configuration Files aastra.cfg, <mac>.cfg Play Call Waiting Tone (in Web UI) Description Enable or disables the playing of a call waiting tone when a caller is on an active call and a new call comes into the phone.
Page 168 Parameter – Aastra Web UI: Basic Settings->Preferences-> alert external Priority Alerting Settings Configuration Files aastra.cfg, <mac>.cfg alert external (in Web UI) Description When an "alert external" keyword appears in the header of the INVITE request, the configured Bellcore ring tone is applied to the IP phone.
Page 169 Parameter – Aastra Web UI: Basic Settings->Preferences-> alert emergency Priority Alerting Settings Configuration Files aastra.cfg, <mac>.cfg alert emergency (in Web UI) Description When an "alert emergency" keyword appears in the header of the INVITE request, the configured Bellcore ring tone is applied to the IP phone.
Page 170: Language Settings
Used to set the language that the phone uses to display messages, etc. Valid values for 480i/9112i/9133i are: 0 (English) 1 (French) 2 (Spanish) 3 (German) 4 (Italian) Valid values for 480i CT are: 0 (English) 1 (French) 2 (Spanish) Format Integer Default Value Range...
Page 171: Intercom And Auto-Answer Settings
Format Integer Default Value For Aastra Web UI: Off (480i, 480i CT and handsets) For Configuration Files: 3 Off (480i, 480i CT and handsets) Range For Aastra Web UI: Phone-Side Server-Side Off (480i and 480i CT handsets) For Configuration Files:...
Page 172 Parameter – Aastra Web UI Basic Settings->Preferences-> sip intercom line Outgoing Intercom Settings Configuration Files aastra.cfg, <mac>.cfg Line (in Web UI) Description Specifies the line for which the IP phone uses the configuration from, when making the Intercom call. The...
Page 173: Format Boolean
Parameter – Aastra Web UI Basic Settings->Preferences-> sip allow auto Incoming Intercom Settings answer Configuration Files aastra.cfg, <mac>.cfg Auto-Answer (in Web UI) Description Enables or disables the IP phone to allow automatic answering for an Intercom call. If auto-answer is enabled on the IP phone, the phone plays a tone to alert the user before answering the intercom call.
Page 174: Audio Transmit And Receive Gain Adjustment Settings
Audio Transmit and Receive Gain Adjustment Settings Parameter – Configuration Files aastra.cfg, <mac>.cfg headset tx gain Description This is the increased (+db) or decreased (-db) amount of signal transmitted from the headset microphone to t he far-end party. The amount of Tx gain in the IP phone firmware has been reduced to avoid side-tone and echo on the local and far-end equipment.
Page 175 Parameter – Configuration Files aastra.cfg, <mac>.cfg handset sidetone gain Description This is the increased (+db) or decreased (-db) amount of sidetone signal from the handset microphone to the handset speaker. The amount of sidetone gain in the IP phone firmware has been reduced to avoid side-tone and echo on the local and far-end equipment.
Page 176 Parameter – IP Phone UI Options->Set Audio audio mode Configuration Files aastra.cfg, <mac>.cfg Description Allows you to configure how the "handsfree" key on the IP phone operates. Format Integer Default Value Range Speaker - Calls can be made or received using the...
Page 177: Directed Call Pickup (Blf Call Interception) Settings
Directed Call Pickup (BLF Call Interception) Settings Parameter – Aastra Web UI Basic Settings->Preferences directed call pickup ->Directed Call Pickup Settings Configuration Files aastra.cfg, <mac>.cfg Directed Call Pickup (in Web UI) Description Enables or disables the use of "directed call pickup"...
Page 178: Hard Key Parameters
This section provides the hard key settings you can use to enable and disable the Redial, Conf, and Xfer keys on the IP phone. Parameter – Configuration Files aastra.cfg, <mac>.cfg redial disabled Description Enables or disables the Redial key on the IP phone. If this parameter is set to 0, the key is active and can be pressed by the user.
Page 179 Redial key returns to its original functionality. Note: If you configure the Redial key for speeddialing on the 480i CT Base Station, the Redial key on the 480i CT handset retains its original functionality. The Redial key on the handset is not configured for speeddial.
Page 180: Softkey/Programmable Key Parameters
9133i Softkey Settings for 480i and 480i CT The value of "N" for the following parameters is dependent on the number of softkeys available on the 480i/480i CT models. See the table above for applicable values. Parameter – Aastra Web UI Operation->Softkeys and XML...
Page 181: Configuration Files Aastra.cfg, .Cfg
The text label that displays on the IP phone for the softkey. Notes: 1. For the 480i and 480i CT phones, an icon appears beside the soft key label that indicates the status of the line. 2. If the softkeyN type parameter is set to "flash", and no label value is entered for the softkeyN label parameter, the label of "Flash"...
Page 182: Configuration Files Aastra.cfg, .Cfg
The number of applicable lines available is dependent on the specific IP phone model. Format Integer Default Value Range 1 through 9 (for 480i and 480i CT) Example softkey1 line: 1 softkey2 line: 5 IP Phone SIP Admin Guide...
Page 183 Parameter – Configuration Files aastra.cfg, <mac>.cfg softkeyN states Description Displays the status of the phone when a softkey is pressed. You can enter multiple values (idle, connected, incoming, outgoing) for the "softkeyN state" parameter. You must associate the softkeyN state parameter with a specific softkey.
Page 184: Programmable Key Settings For 9112I And 9133I
Busy Lamp Field (BLF) use. User can dial out on a BLF configured key. • list (9133i only; Aastra Web UI only) - Indicates programmable key is configured for BLF list use. User can dial out on a BLF List configured key.
Page 185 Parameter – Aastra Web UI Operation->Programmable Keys Configuration Files aastra.cfg, <mac>.cfg prgkeyN value Value (in Web UI) Description This is the value you assign to the programmable key. • For line type (9133i only) - Value is optional; for example L4.
Page 186: Advanced Operational Parameters
<mac>.cfg Send MAC Address in REGISTER Message (in Web UI) Description Adds an "Aastra-Mac:" header to the SIP REGISTER messages sent from the phone to the call server, where the value is the MAC address of the phone. Format Boolean...
Page 187: Blind Transfer Setting
Blind Transfer Setting. Parameter – Configuration Files aastra.cfg, <mac>.cfg sip cancel after blind transfer Description Forces the phone to use the Blind Transfer method available in software prior to release 1.4. This method sends the CANCEL message after the REFER message when blind transferring a call.
Page 188: Boot Sequence Recovery Mode
Boot Sequence Recovery Mode. Parameter – Configuration Files aastra.cfg, <mac>.cfg force web recovery mode disabled Description Enables or disables the forcing web recovery mode feature. If this parameter is set to "1", you cannot force web recovery. If this parameter is set to "0", press 1 and # keys during boot up when the logo displays to force the web recovery mode.
Page 189: Troubleshooting Solutions
Note: Your computer will need to be Check that the "Registrar Server" on the same network as your IP address in the Aastra Web UI at IP phone. Advanced Settings->Global SIP is 2. In the URL, type: “http://<IP correct.
Page 190: Why Does My Phone Display "Bad Encrypted Config
For procedures on configuring the encrypted file. TFTP server using the IP phone UI Reason: and the Aastra Web UI, see the Neither of the <mac>.tuz and section, "Configuring the aastra.tuz files are present on the Configuration Server Protocol"...
Page 191: How Do I Set The Ip Phone To Factory Default
It phone. removes the configuration file that contains saved parameters To restore the local configuration set from the Aastra Web UI or file factory defaults only: the IP phone UI. 1. Select Config only to restore all 2. Press...
Page 192: How To Reset A User's Password
6. Press Enter to save the new password. A message, "Password Changed" displays on the screen. Aastra Web UI 1. Click on Operation->User Password. 2. In the "Current Password" field, enter the current user password. 3. In the "New Password" field, enter the new user password.
Page 193: Appendix A: Configuration Server Protocol Setup
Appendix A: Configuration Server Protocol Setup TFTP Server Set-up There are a number of TFTP servers available. PumpKIN is one of such TFTP servers. Use the keywords “pumpkin TFTP server” on Google and you should get the web site where you can download the software from.
Page 194: Appendix B: Configuring The Ip Phone At The Asterisk Ip Pbx
;This is used in the “extensions.conf” file to identify this ;physical phone when issuing Dial commands. [phone1] ;The type to use for the 480i is “friend”. ;”Peer” is used when the Asterisk is contacting a proxy, ;”user” is used for phones that can only make calls ;and “friend”...
Page 195 (D) 255.255.255.255 5060 Unmonitored This completes the basic set-up for the 480i phone with 1234 extension at the Asterisk IP PBX system. Refer to Asterisk documentation for set-up on extended or advanced features such as voice mail and call forwarding, etc.
Page 196: Appendix C: Sample Configuration Files
# the full list of supported parameters, their defaults and valid # ranges. # The Aastra 480i, 480iCT, 9112i and 9133i phones will download 2 # configuration files from the TFTP server while restarting, the # "aastra.cfg" file and the "<mac>.cfg" file. These two...
Page 197 # the "<mac>.cfg" file configures only the phone with the MAC address # for which the file is named (for example, "00085d0304f4.cfg"). The # settings in the "aastra.cfg" file will be overridden by settings # which also appear in the "<mac>.cfg" file.
Page 198 # setting this manually. #subnet mask: #default gateway: #dns1: #dns2: # Time Server Settings ## ===================== #time server disabled: 1 # Time server disabled. #time server1: # Enable time server and enter at #time server2: # least one time server IP address or #time server3: # qualified domain name # Time Server Disabled:...
Page 199 #sip outbound proxy: sbc.aastra.com #sip outbound proxy port: 0 # a value of 0 enables SRV # lookups for the address of # the proxy. # Option 3: # If you know the public IP address of your NAT device and and have # opened up a port for the SIP messages then you can statically # assign this information.
Page 200 ## FTP server settings #ftp server: 192.168.0.131 # can be IP or FQDN #ftp username: aastra #ftp password: 480iaastra ## HTTP server settings (for http://bogus.aastra.com/firmware/) #http server: bogus.aastra.com # can be IP or FQDN #http path: firmware #------------------------------------------------------------------- # Dial Plan Settings...
Page 201 # If the dialled number doesn't match the dial plan then the call # is rejected. sip digit timeout: 3 # set the inter-digit timeout in seconds # Example dial plans sip dial plan: "x+#|xx+*" # this is the default dial string, note # that is must be quoted since it contains # a '#' character #sip dial plan: [01]xxx|[2-8]xxxx|91xxxxxxxxxx...
Page 202 0 - generic, 1 - BroadSoft SCA line 2 - Nortel line sip proxy ip: proxy.aastra.com # IP address or FQDN of proxy sip proxy port: 5060 # port used for SIP messages on the # proxy. Set to 0 to enable SRV # lookups sip registrar ip: aastra.com...
Page 203 - the proxy and registrar settings are taken from the global settings above sip line3 screen name: Support sip line3 user name: 4000 sip line3 display name: Aastra Support sip line3 auth name: support sip line3 password: 54321 sip line3 mode: 1...
Page 204 # There are a maximum of 18 softkeys that can be configured on the # 480i or 480iCT phone. These can be set up through either of the 2 # configuration files, depending on whether this is to be server wide # ("aastra.cfg") or phone specific ("<mac>.cfg").
Page 205 # DND Key softkey4 type: dnd softkey4 label: DND # Line appearance softkey6 type: line softkey6 label: Test 1 softkey6 line: 5 # blf softkey8 type: blf softkey8 label: Jane Doe softkey8 value: 4559 softkey8 line: 1 # list softkey11 type: list softkey12 type: list IP Phone SIP Admin Guide 197...
Page 206: 480I Ct Sample Configuration File
# the full list of supported parameters, their defaults and valid # ranges. # The Aastra 480i, 480iCT, 9112i and 9133i phones will download 2 # configuration files from the TFTP server while restarting, the # "aastra.cfg" file and the "<mac>.cfg" file. These two...
Page 207 # which the file is named (for example, "00085d0304f4.cfg"). The # settings in the "aastra.cfg" file will be overridden by settings # which also appear in the "<mac>.cfg" file. #------------------------------------------------------------------- # DHCP Setting # ============ #dhcp: 1 # DHCP enabled.
Page 208 #ip: # This value is unique to each phone on a server # and should be set in the "<mac>.cfg" file if # setting this manually. #subnet mask: #default gateway: #dns1: #dns2: # Time Server Settings # ==================== #time server disabled: 1 # Time server disabled. #time server1: # Enable time server and enter at #time server2:...
Page 209 # Option 2: # If you are using a session border controller, you should set the # outbound proxy to the session border controller address #sip outbound proxy: sbc.aastra.com #sip outbound proxy port: 0 # a value of 0 enables SRV # lookups for the address of # the proxy.
Page 210 ## FTP server settings #ftp server: 192.168.0.131 # can be IP or FQDN #ftp username: aastra #ftp password: 480iaastra ## HTTP server settings (for http://bogus.aastra.com/firmware/) #http server: bogus.aastra.com # can be IP or FQDN #http path: firmware #------------------------------------------------------------------ # Dial Plan Settings...
Page 211 0,1,2,3,4,5,6,7,8,9,*,# : matches the keypad symbols : matches any digit (0...9) : matches 0 or more repetitions of the : previous expression : matches any number inside the brackets : can be used with a "-" to represent a : range : expression grouping : either or # If the dialled number doesn't match the dial plan then the call...
Page 212 # Notes: These settings are used as the default configuration for the hard key lines on the phone. That is: L1 to L4 on the 480i and 480iCT L1 to L3 on the 9133i L1 on the 9112i These can be over-ridden on a per-line basis using the per-line settings.
Page 213 0 - generic, 1 - BroadSoft SCA line 2 - Nortel line sip proxy ip: proxy.aastra.com # IP address or FQDN of proxy sip proxy port: 5060 # port used for SIP messages on the # proxy. Set to 0 to enable SRV # lookups sip registrar ip: aastra.com...
Page 214 # There are a maximum of 18 softkeys that can be configured on the # 480i or 480iCT phone. These can be set up through either of the 2 # configuration files, depending on whether this is to be server wide # ("aastra.cfg") or phone specific ("<mac>.cfg").
Page 215 number of characters for this value is 10 for speeddials and dnd, 9 chars for lines, blf # SOFTKEY VALUE: If softkey type is a speeddial, any DTMFs (from 0 - 9, *, "#") or a comma (,) for 500ms pause and 'E' for On-hook can be set for the value.
Page 216 # Cordless Handset Feature Keys # ============================= # Notes: # In addition to the configuration parameters that exist on the 480i # phone, following are the parameters specific to the 480i Cordless # phones' handset. These parameters can be defined either int the # aastra.cfg or the <mac>.cfg files.
Page 217 #Feature key 0 En label: "Line 1" # English label for the key. Displayed when the phone's language is # set to use English #Feature key 0 Fr label: "Fr-Line 1" # French label for the key. Displayed when the phone's language # is set to use French #Feature key 0 Sp label: "Sp-Line 1"...
Page 218 # will process the value of this key in conjunction with the value # configured for the "Feature key N base event". Where N is the # feature key is being configured for. # In addition to the values listed below the valid values are # [7-23].
Page 219 key list version: 1 Feature key 0 En label: "Line 1" Feature key 0 Fr label: "Fr-Line 1" Feature key 0 Sp label: "Sp-Line 1" Feature key 0 control: 0 Feature key 0 hs event: 7 Feature key 0 base event: 1 Feature key 1 En label: "Conf."...
Page 220 Feature key 5 En label: "Callers" Feature key 5 Fr label: "Fr-Callers" Feature key 5 Sp label: "Sp-Callers" Feature key 5 hs event: 62 Feature key 5 control: 1 Feature key 5 base event: 13 Feature key 6 En label: "Top" Feature key 6 Fr label: "Fr-Top"...
Page 221: 9112I Sample Configuration File
# the full list of supported parameters, their defaults and valid # ranges. # The Aastra 480i, 480iCT, 9112i and 9133i phones will download 2 # configuration files from the TFTP server while restarting, the # "aastra.cfg" file and the "<mac>.cfg" file. These two...
Page 222 # DHCP Setting # ============ #dhcp: 1 # DHCP enabled. # DHCP: # 0 = false, means DHCP is disabled. # 1 = true, means DHCP is enabled. # Notes: # DHCP is normally set from the Options list on the phone or # the web interface # If DHCP is disabled, the following network settings will # have to be configured manually either through the configuration...
Page 223 # Option 2: # If you are using a session border controller, you should set the # outbound proxy to the session border controller address #sip outbound proxy: sbc.aastra.com #sip outbound proxy port: 0 # a value of 0 enables SRV # lookups for the address of # the proxy.
Page 224 # the alternative tftp server. ## FTP server settings #ftp server: 192.168.0.131 # can be IP or FQDN #ftp username: aastra #ftp password: 480iaastra ## HTTP server settings (for http://bogus.aastra.com/firmware/) #http server: bogus.aastra.com # can be IP or FQDN #http path: firmware --------------------------------------------------------------------...
Page 225 # Dial Plan Settings # ================== # Notes: # As you dial a number on the phone, the phone will initiate a call # when one of the following conditions are meet: (1) The entered number is an exact match in the dial plan (2) The "#"...
Page 226 0 - generic, 1 - BroadSoft SCA line 2 - Nortel line sip proxy ip: proxy.aastra.com # IP address or FQDN of proxy sip proxy port: 5060 # port used for SIP messages on the # proxy. Set to 0 to enable SRV...
Page 227 # on the 9133i phone, and only 2 on the 9112i phone. These can be # up through either of the 2 configuration files, depending on # whether this is to be server wide ("aastra.cfg") or phone specific # ("<mac>.cfg"). Each prgkey needs to be numbered from 1 - 7 (or 1 # 2 on the 9112i), for example "prgkey2 type: speeddial".
Page 228 #prgkey1 type: dnd # blf #prgkey2 type: blf #prgkey2 value: 4559 # list #prgkey1 type: list #prgkey2 type: list IP Phone SIP Admin Guide...
Page 229: 9133I Sample Configuration File
# for the full list of supported parameters, their defaults and # valid ranges. # The Aastra 480i, 480iCT, 9112i and 9133i phones will download 2 # configuration files from the TFTP server while restarting, the # "aastra.cfg" file and the "<mac>.cfg" file. These two...
Page 230 # The "aastra.cfg" file configures the settings server wide, while # the "<mac>.cfg" file configures only the phone with the MAC # address for which the file is named (for example, # "00085d0304f4.cfg"). The settings in the "aastra.cfg" file will # be overridden by settings which also appear in the "<mac>.cfg"...
Page 231 #ip: # This value is unique to each phone on a server # and should be set in the "<mac>.cfg" file if # setting this manually. #subnet mask: #default gateway: #dns1: #dns2: # Time Server Settings # ===================== #time server disabled: 1 # Time server disabled. #time server1: # Enable time server and enter at #time server2:...
Page 232 # Option 2: # If you are using a session border controller, you should set the # outbound proxy to the session border controller address #sip outbound proxy: sbc.aastra.com #sip outbound proxy port: 0 # a value of 0 enables SRV # lookups for the address of # the proxy.
Page 233 ## FTP server settings #ftp server: 192.168.0.131 # can be IP or FQDN #ftp username: aastra #ftp password: 480iaastra ## HTTP server settings (for http://bogus.aastra.com/firmware/) #http server: bogus.aastra.com # can be IP or FQDN #http path: firmware #---------------------------------------------------------------- # Dial Plan Settings...
Page 234 0,1,2,3,4,5,6,7,8,9,*,# : matches the keypad symbols : matches any digit (0...9) : matches 0 or more repetitions of the : previous expression : matches any number inside the brackets : can be used with a "-" to represent a : range : expression grouping : either or # If the dialled number doesn't match the dial plan then the call...
Page 235 # Notes: These settings are used as the default configuration for the hard key lines on the phone. That is: L1 to L4 on the 480i and 480iCT L1 to L3 on the 9133i L1 on the 9112i These can be over-ridden on a per-line basis using the per-line settings.
Page 236 0 - generic, 1 - BroadSoft SCA line 2 - Nortel line sip proxy ip: proxy.aastra.com # IP address or FQDN of proxy sip proxy port: 5060 # port used for SIP messages on the # proxy. Set to 0 to enable SRV # lookups sip registrar ip: aastra.com...
Page 237 # on the 9133i phone, and only 2 on the 9112i phone. These can be # set up through either of the 2 configuration files, depending on # whether this is to be server wide ("aastra.cfg") or phone # specific ("<mac>.cfg"). Each prgkey needs to be numbered from # 1 - 7 (or 1 -2 on the 9112i), for example "prgkey2 type:...
Page 238 # PRGKEY LINE: This is line associated with the prgkey. For line prgkeys the value must be between 4 and 9 (1 - 3 are already hardcoded as the L1, L2 and L3 hard key line/call appearances). This parameter is not used for the 9112i # Speed Dials prgkey1 type: speeddial prgkey1 value: *8...
Page 239: Appendix D: Sample Blf Softkey Settings
Appendix D: Sample BLF Softkey Settings Asterisk BLF The following are sample softkey and programmable key configurations to enable Asterisk BLF support on Aastra IP phones. 480i and 480i CT Configuration Parameters for Asterisk BLF softkey1 type: blf softkey1 value: 9995551212 softkey1 label: John...
Page 240 9133i Configuration Parameters for Broadsoft BroadWorks BLF Note: One prgkey must be defined of type “list” for each monitored user. So if there are 2 users being monitored, 2 prgkeys must be defined of type list. prgkey6 type: list prgkey6 label: prgkey6 value: 1 prgkey7 type: list prgkey7 label:...
Page 241: Appendix E: Sample Multiple Proxy Server Configuration
Appendix E: Sample Multiple Proxy Server Configuration Multiple proxy servers can be configured in the aastra.cfg file or the <mac>.cfg file. In the example below, the default proxy setting is used if no specific setting is specified in the line configuration. Line2 and line3 are used for the global proxy configurations, while line1 and line4 use their own specific settings.
Page 242 #line 2 sip line2 auth name: sip line2 password: sip line2 mode: 0 sip line2 user name: sip line2 display name: sip line2 screen name: #line 3 sip line3 auth name: sip line3 password: sip line3 mode: 0 sip line3 user name: sip line3 display name: sip line3 screen name: #line 4...
Page 243: Appendix F: How To Create An Xml Application
Creating XML Objects • XML Schema File XML format The text in the Aastra XML objects must be compliant with XML recommendations and special characters must be escape encoded. The default character set for the XML API is ISO-8859-1. Escape...
Page 244: Creating Custom Softkeys
XML screen type (Text Menu, Text Screen, User Input, Directory). A developer can define up to six softkeys before the closing tag of any object on the 480i/480i CT. The following softkey functionality is available to the developer for the purpose of reordering or preserving the default functionality of the XML screens.
Page 245: Text Menu Object (Menu Screens)
Text Menu Object Implementation The following is how you would implement the Text Menu object. Note: For all available parameters you can use for the Text Menu object, and for an explanation of each parameter, see Aastra Telecom’s "XML Developer’s Guide". Default Softkeys: •...
Page 246: Text Screen Object (Message Screens)
Note: For all available parameters you can use for the Text Screen object, and for an explanation of each parameter, see Aastra Telecom’s "XML Developer’s Guide". Text Screen Object Implementation The following is how you would implement the Text Screen object.
Page 247 XML Screen Example: Screen Object The screen object can be implemented similar to the Done IP Phone SIP Admin Guide 239...
Page 248: Userinput Object (User Input Screens)
The following is how you would implement the UserInput object using an IP Address. Note: For all available parameters you can use for the UserInput object, and for an explanation of each parameter, see Aastra Telecom’s "XML Developer’s Guide". Softkeys: •...
Page 249 </Softkey> <SoftKey index = "5"> <Label> Cancel </Label> <URI>SoftKey:Exit</URI> </Softkey> <SoftKey index = "6"> <Label> Done </Label> <URI>SoftKey:Exit</URI> </Softkey> </AastraIPPhoneInputScreen> XML Example: <AastraIPPhoneInputScreen type = "IP"> <Title>Proxy Server</Title> <Prompt>Server IP:</Prompt> <URL>http://10.50.10.53/script.pl</URL> <Parameter>proxy</Parameter> <Default></Default> <AastraIPPhoneInputScreen> XML Screen Example: Proxy Server Server IP: Backspace Cancel Done...
Page 250 <Title>Proxy Port</Title> <Prompt>Port:</Prompt> <URL>http://10.50.10.53/script.pl</URL> <Parameter>port</Parameter> <Default>5060</Default> <AastraIPPhoneInputScreen> XML Screen Example: Proxy Port Port: 5060 Backspace Cancel Done UserInput Object Implementation (String) The following is how you would implement the UserInput object using Strings in XML. Implementation (String) The following is how you would implement the UserInput object using String.
Page 251 SIP Settings Enter Password: ****** Backspace Nextspace Cancel Done Note: In the above example, if user entered 12345, then the URL sent back to the server is http://10.50.10.53/script.pl?passwd=12345. IP Phone SIP Admin Guide 243...
Page 252: Directory Object (Directory List Screen) (480I Only)
The following is how you would implement the Directory object in XML. Notes: 1. For all available parameters you can use for the Directory object, and for an explanation of each parameter, see Aastra Telecom’s "XML Developer’s Guide". 2.If the URI entry contains a "?" the phone appends an "&"...
Page 253: Http Post
<MenuItem> <Prompt>480i CT - John Doe 3</Prompt> <URI>9982691234</URI> </MenuItem> </AastraIPPhoneDirectory XML Screen Example: My Directory (1/6) 1. 480i John Doe 1 2. 9133i John Doe 2 3. 480iCT John Doe 3 Dial Previous Next Cancel Note: The maximum number of items to be included in a Directory object is 15 per page.
Page 254 %2FAastraIPPhoneTextScreen%3E% Note: The XML object cannot be larger than 2150 bytes. Any posts larger than this limit are denied. Example 2: Below is a sample php source code which sends an XML object to an Aastra phone. <?php function push2phone($server,$phone,$data) # url-encode the xml object $xml = "xml=".urlencode($data);...
Page 255: Xml Schema File
XML objects using the Schema file provided in this section. This helps you find any parsing errors that may exist, and verify that your XML objects conform to the Aastra API. Note: Aastra IP phonees do not contain validating XML parsers. There are many free validators available on the Web (i.e., http://apps.gotdotnet.com/xmltools/xsd- validator/Default.aspx) that can perform validation using the schema file.
Page 256 <xs:sequence> <xs:element name="Title" /> <xs:element name="Prompt" /> <xs:element name="URL" /> <xs:element name="Parameter" /> <xs:element name="Default" /> </xs:sequence> <xs:attribute name="type"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:pattern value="IP|string|number" /> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="password" default="no"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:pattern value="yes|no" /> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="destroyOnExit"...
Page 257: Limited Warranty
Note: Repairs to this product may be made only by the manufacturer Aastra Telecom shall not be liable for and its authorized agents, or by any incidental or consequential others who are legally autho- damages, including, but not limited to, rized.
Page 259 Index callers list downloading to phone Aastra Web UI enabling/disabling advanced settings description overview basic settings description using on phone enabling and disabling Codecs operation description customized preference list of status description conference key about this guide enabling/disabling Administration Guide, for IP phone...
Page 260 Index DiffServ QoS outgoing calls Directed call pickup IP phone UI configuring 58, 59, 88 description of language directory list configuring download behavior overview downloading procedures line key downloading to server line settings limitations for overview missed calls indicator using accessing and clearing enabling/disabling configuring...
Page 261 ID Options button, using VLAN voicemail XML settings parameters parameters, list of configurable 480i and 480iCT softkey network settings 9112i and 9133i programmable softkey settings time server settings Aastra Web UI parameters, setting in configuration files advanced SIP...
Page 262 RTP port registrar port RTP settings registration period Basic Codecs sofkeys customizing Codec preference list overview Softkey settings DTMF method for 480i, 480iCT, 480i BroadSoft forcing RFC2833 out-of-band DTMF for 9112i and 9133i RTP port softkeys silence suppression configuring softkeys, state-based...
Page 263 Index VLAN configuring DSCP Range priority mapping voicemail configuring overview using Warranty Xfer key, enabling/disabling configuring creating phone screens customized services object requests overview push requests using on phone xml key XML push server list IP Phone SIP Admin Giude Index-5...
