Summary of Contents for A-Neuvideo ANI-H-KIT

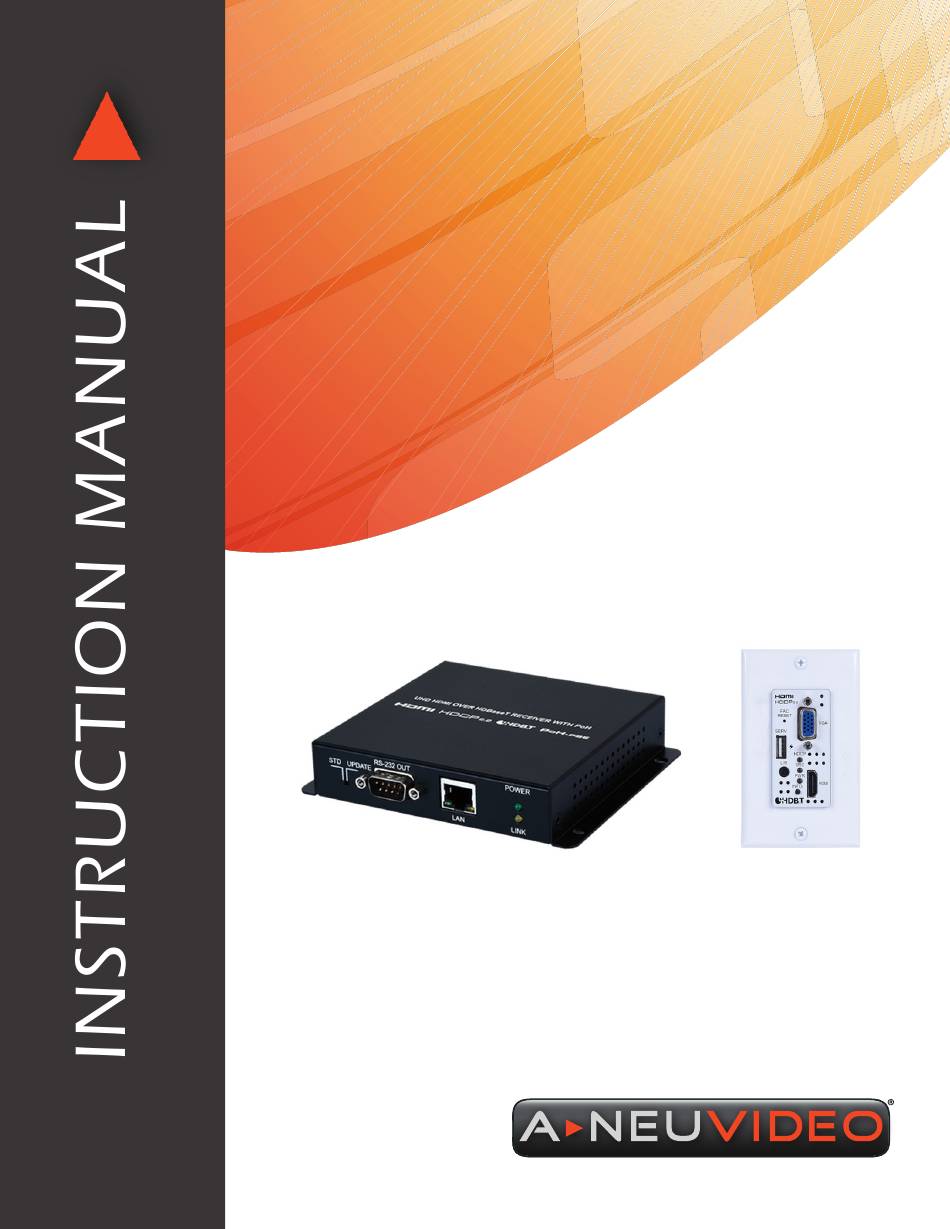

- Page 1 ANI-H-KIT ANI-H-R4K HDMI over HDBaseT™ Receiver w/ IR, RS-232, PoH (PSE) & LAN Receiver & ANI-HV-WP4K 4K UHD+ HDMI/ VGA over HDBaseT™ w/ Signal Event Automation (1 Gang) Wallplate Switcher A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it. The ANI-H-KIT transmitter and receiver set is a great solution for extending • To protect the unit from overheating, do not block any vents or... -
Page 4: Package Contents / Applications / System Requirements
NEUVIDEO PACKAGE CONTENTS / APPLICATIONS / SYSTEM REQUIREMENTS PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • ANI-HV-WP4K HDMI/VGA over HDBaseT Wallplate Switcher ™ •... -
Page 5: Features
NEUVIDEO FEATURES FEATURES Wallplate • HDMI 2.0 and DVI 1.0 compliant • HDCP 2.2 and HDCP 1.x compliant • (1) HDMI input • (1) VGA input with 3.5mm mini-jack audio input • Wall plate is designed for US one-gang sized enclosures •... -
Page 6: Specifications
NEUVIDEO SPECIFICATIONS Specifications WALLPLATE • HDMI Bandwidth: 600MHz/18Gbps • HDBaseT Bandwidth: 340MHz/10.2Gbps ™ • Input Ports • HDMI • VGA (HD-15) • Stereo (3.5mm) • Output Port: HDBaseT (RJ45) ™ • Baud Rate: Up to 115200bps • Power Supply: 48V PoH or 12V/3A DC (US/EU standards, CE/FCC/UL certified) •... -
Page 7: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS W ALLPLATE FRONT PANEL FAC RESET Button: Press and hold for 5 seconds to reset the unit to its factory defaults. SERV.: This slot is reserved for firmware update use only. NOTE: This USB port can provide up to 500mA to connected devices. L/R IN: Connect to the stereo analog output of a device such as an audio player or PC for embedding into the HDBaseT... - Page 8 NEUVIDEO OPERATION CONTROLS & FUNCTIONS Receiver STD/UPDATE: This switch is reserved for factory use only. RS-232 OUT: Connect to a serial controllable device for the extension of RS-232 signals. LAN: Connect to an Ethernet device or to your local network as appropriate. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
-
Page 9: Ir Cable Pin Assignments / Rs-232 Protocol
NEUVIDEO IR Cable Pin Assignments / RS-232 Protocol IR Cable Pin Assignments RS-232 Protocol Assignment Assignment Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 NOTE: RS-232 support requires the use of a compatible HDBaseT Receiver with an RS-232 port. -
Page 10: Webgui Control
NEUVIDEO WebGUI Control Device Discovery Softw are Please obtain the “Device Discovery Software” from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery Software”. Click on “Find Devices on Network”... - Page 11 NEUVIDEO WebGUI Control Switch Tab This tab provides video/audio routing control as well as control over HDCP behavior, freerun settings, and naming of the Inputs and Output. To assign a new video route, please click the “Output” button and then click on the button of the preferred Input port to route.
- Page 12 NEUVIDEO WebGUI Control Automation Tab The Automation tab provides control over the unit’s automatic control command broadcast behavior when the specified system Automation Events occur. Automation commands may be sent to 3rd party devices via standard CEC, or customizable RS-232. Note: Sending RS-232 commands requires the use of a compatible HDBaseT Receiver with an RS-232 port.
- Page 13 NEUVIDEO WebGUI Control EDID Settings Tab This tab provides control over the EDID behavior of the unit. There are six internal EDIDs, two customer uploaded EDIDs, and one sink sourced EDID that can be assigned to each input port individually. The sink EDID and both Customer EDIDs are also available for download to the connected PC.
- Page 14 NEUVIDEO WebGUI Control System Settings Tab This tab provides access to control a number of system configuration controls including displaying the unit’s serial number, modifying the web access privileges, changing the IP configuration, performing a factory reset, rebooting the system, and updating the firmware. 1.
-
Page 15: Telnet Control
NEUVIDEO TELNET CONTROL Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/laptop are connected to the same active network. To Access Telnet Click START, type “cmd” in the search field and press ENTER. Windows 7 Windows 10 1. -
Page 16: Rs-232 & Telnet Commands
NEUVIDEO RS-232 & Telnet Commands RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER HELP Show all available commands. Show all available commands. ? GET FW VER Show the unit’s firmware version. GET MODEL NAME Show the unit’s product type. GET MODEL TYPE ... - Page 17 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER GET OUT A MASK Display the current output mask setting. SET OUT AUTO MODE N1 Enable or disable automatic source switching. Available values for N1: [Auto switch disabled] [Auto switch enabled] GET OUT AUTO MODE ...
- Page 18 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER Show the current name of user EDID N1. GET EDID N1 NAME N1 = 7 ~ 8 [EDID number] Set the HDCP mode to use with the HDMI input. SET IN 2 HDCP MODE N1 Available values for N1: [HDCP disabled] [Follow source]...
- Page 19 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER SET AUTOMATION EVENT N1 UART Set the length of time to wait after an Automation Event’s RS- 232 response has been WAIT N2 SEC activated before ANY other Automation Event can be detected. Available values for N1: [Power on] [Out A source active]...
- Page 20 NEUVIDEO RS-232 & Telnet Commands COMMAND DESCRIPTION OF PARAMETER SET AUTOMATION EVENT N1 CEC Set the length of time to wait after an Automation Event’s CEC response has been WAIT N2 SEC activated before ANY other Automation Event can be detected. Available values for N1: N2 = 1 ~ 300 [Wait time in seconds]...
-
Page 21: Connection Diagram
NEUVIDEO w allplate - CONNECTION DIAGRAM Connection Diagram... - Page 22 NEUVIDEO receiver- CONNECTION DIAGRAM Connection Diagram...
-
Page 23: Wallplate Video / Audio
NEUVIDEO W ALLPLATE Video / AUDIO Specifications Supported Resolutions (Hz) SUPPORTED PC RESOLUTION (HZ) HDMI INPUT VGA INPUT HDBASET OUTPUT ™ 640x480@60/72/75/85 720x400@70 800x600@56/60/72/75/85 1024x768@60/70/75/85 1152x864@75 1280x768@60/60 (RB) 1280x800@60/60 (RB)/75 1280x960@60 1280x1024@60/75/85 1366x768@60/60 (RB) 1440x900@60/60 (RB) 1600x1200@60 1680x1050@60/60 (RB) 1920x1200@60 (RB) SUPPORTED TV RESOLUTION (HZ) HDMI INPUT VGA INPUT... -
Page 24: Wallplate Cable Specifications / Hdbaset ™ Features
NEUVIDEO W ALLPLATE Cable Specifications / HDBaseT™ Features Cable Specifications 1080P HDMI CABLE LENGTH 8-bit 12-bit 8-bit Input 49 ft / 15M 32 ft / 10M 16 ft / 5M Output 49 ft / 15M 32 ft / 10M 16 ft / 5M CAT CABLE LENGTH 1080P CAT5e... -
Page 25: Receiver Video Specifications / Cable Specifications
NEUVIDEO RECEIVER Video Specifications / Cable Specifications Supported Resolutions (Hz) RESOLUTION INPUT OUTPUT 640x480@60/72/75/85 800x600@56/60/72/75/85 1024x768@60/70/75/85 1280x720@60 1280x1024@60 1600x1200@60 1920x1200@60 (RB) 480i/576i 480p/576p 720p@50/60 1080i@50/60 1080p@50/60 1080p@24/25/30 3840x2160p@24/25/30 4096x2160p@24 4096x2160p@50/60 (4:2:0) Cable Specifications CABLE TYPE CABLE LENGTH SUPPORTED VIDEO FORMAT Full HD Video: •... - Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 28 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
