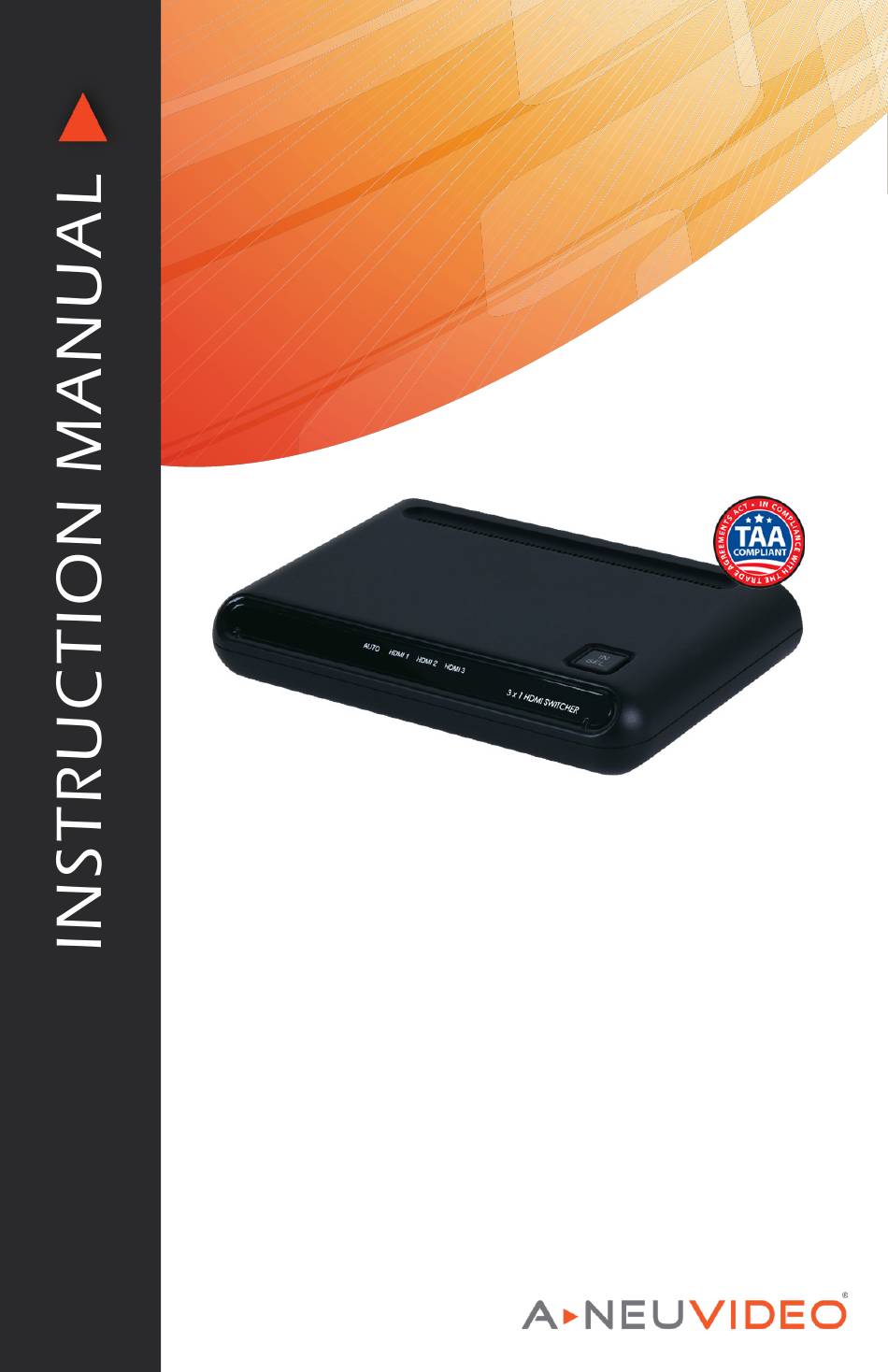

- Page 1 ANI-3AUTOHDMI UHD+ 3x1 HDMI Switcher AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents

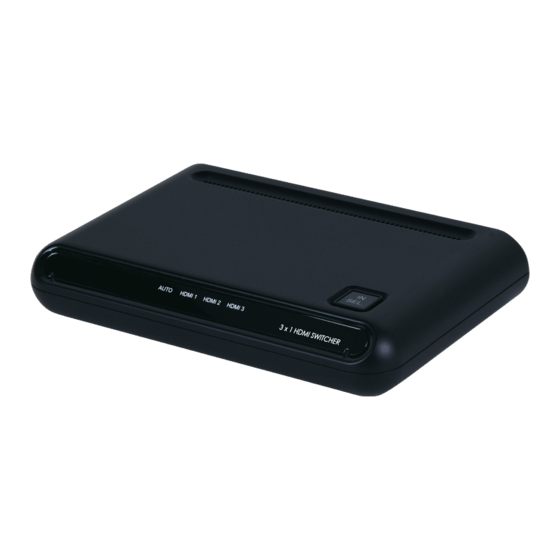

AUDIO / CABLE SPECIFICATIONS ....................13 INTRODUCTION The ANI-3AUTOHDMI UHD+ 3x1 HDMI Switcher features (3) HDMI inputs and one HDMI output with manual or automatic source switching. Every input and output supports full bandwidth 4K@60Hz (4:4:4, 8-bit) HDMI 2.0 with HDCP 2.2 signals. Automatic source management... -
Page 5: Features
FEATURES FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 1.x and HDCP 2.2 compliant • (3) HDMI inputs, 1 HDMI output • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output • Supports Deep Color input and output up to 12-bit •... -
Page 6: Specifications
SPECIFICATIONS • HDMI Bandwidth: 18Gbps • Input Ports: (3) HDMI (Type-A) • Output Ports: HDMI (Type-A) • Control Ports: RS-232 (3.5mm) • Service/Power Port: USB 2.0 (Micro B) • IR Frequency: 38kHz • Baud Rate: 19200 • Power Supply (Optional): 5V/1A DC (US/EU standards, CE/FCC/UL certified) •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Top Panel q AUTO LED: This LED will illuminate when the auto switch function is active. While active, the input source will be selected based on the most recently connected live source. w HDMI 1~3 LEDS: The LED of the currently selected input will illuminate green. - Page 8 OPERATION CONTROLS & FUNCTIONS receiver q HDMI OUT PORT: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. w HDMI 1~3 PORTS: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. e RS-232 PORT: Connect directly to your PC/laptop to send RS-232 commands to control the unit.
-
Page 9: Remote Control / Rs-232 Pinout
Remote Control / RS-232 Pinout Remote Control (Optional) q AUTO BUTTON: Press this button to enable the unit’s auto switch functionality. w 1~3 BUTTONS: Press any of these buttons to switch immediately to the corresponding input. RS-232 Pinout and Defaults SERIAL PORT DEFAULT SETTINGS Baud Rate 19200... -
Page 10: Serial Commands
Serial Commands COMMAND DESCRIPTION AND PARAMETERS Show the full command list. HELP8 Show the full command list. SET FACTORY DEFAULT8 Reset the unit to the factory defaults. GET COMMAND VER8 Show the unit’s current command version. GET FW VER8 Show the unit’s current firmware version. GET MODEL NAME8 Show the unit’s model name. - Page 11 Serial Commands COMMAND DESCRIPTION AND PARAMETERS GET IN N1 EDID8 Show the EDID currently being used on the specified input. N1 = 1~3 [HDMI input number] GET IN EDID LIST8 List all available EDID selections. SET USER N1 EDID DATA Upload a new EDID (in ASCII hex format) for use as the specified User EDID.
-
Page 12: Connection Diagram
CONNECTION DIAGRAM... -
Page 13: Video Specifications
Video Specifications INPUT OUTPUT SUPPORTED RESOLUTIONS (HZ) HDMI HDMI 720x400p@70/85 ü ü 640x480p@60/72/75/85 ü ü 720x480i@60 ü ü 720x480p@60 ü ü 720x576i@50 ü ü 720x576p@50 ü ü 800x600p@56/60/72/75/85 ü ü 848x480p@60 ü ü 1024x768p@60/70/75/85 ü ü 1152x864p@75 ü ü 1280x720p@50/60 ü... - Page 14 Video Specifications INPUT OUTPUT SUPPORTED RESOLUTIONS (HZ) HDMI HDMI 2560x1600p@60RB ü ü 2048x1080p@24/25/30 ü ü 2048x1080p@50/60 ü ü 3840x2160p@24/25/30 ü ü 3840x2160p@50/60 (4:2:0) ü ü 3840x2160p@24, HDR10 ü ü 3840x2160p@50/60 (4:2:0), HDR10 ü ü 3840x2160p@50/60 ü ü 4096x2160p@24/25/30 ü ü 4096x2160p@50/60 (4:2:0) ü...
-
Page 15: Audio / Cable Specifications
Audio / Cable Specifications Audio Specifications Digital Audio HDMI INPUT/OUTPUT LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 BITSTREAM Supported Formats Standard & High-Definition Cable Specifications 1080p 4K30 4K60 CABLE LENGTH 8-bit 12-bit (4:4:4) 8-bit (4:4:4) 8-bit High Speed HDMI Cable... - Page 16 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
