- Page 1 ANI-4KHPN 4K UHD+ HDMI to HDMI Scaler w/ EDID management AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
These products have a 3 year warranty. PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • ANI-4KHPN HDMI to HDMI Scaler • 5V/2.6A DC Power Adapter • Users Guide... -
Page 5: Features / System Requirements/ Applications
FEATURES / SYSTEM REQUIREMENTS/ APPLICATIONS FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor • HDCP 2.2 and HDCP 1.x compliant • HDMI input and 1 HDMI output •... -
Page 6: Specifications
SPECIFICATIONS • HDMI Bandwidth: 600MHz/18Gbps • Input Ports: • HDMI • Stereo (3.5mm) • S/PDIF (TOSLINK) • Output Ports: • HDMI • Stereo (3.5mm) • S/PDIF (TOSLINK) • Power Supply: 5V/2.6A DC (US/EU Standards, CE/FCC/UL Certified) • ESD Protection: Human Body Model: •... -
Page 7: Operation Controls & Functions

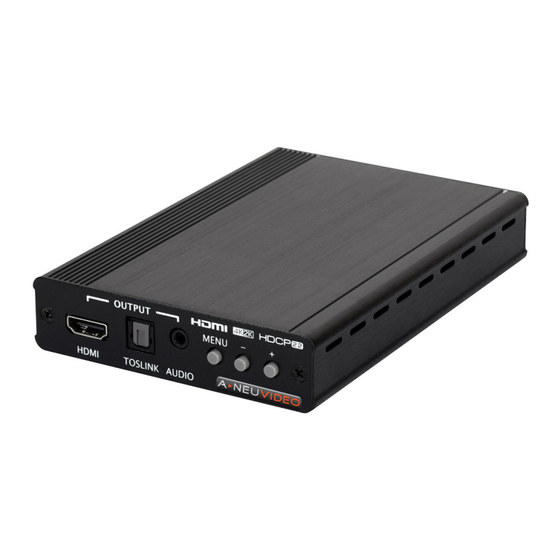

OPERATION CONTROLS & FUNCTIONS Front Panel q HDMI OUTPUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. w TOSLINK INPUT: Connect to powered speakers or an amplifier for digital audio output using an appropriate optical cable. e AUDIO INPUT: Connect to powered speakers or an amplifier for stereo analog audio output. -
Page 8: Osd Menu
OSD Menu OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (Plus), − (Minus), and MENU buttons to navigate the OSD menu. - Page 9 OSD Menu VIDEO 2ND LEVEL 3ND LEVEL 4TH LEVEL OUTPUT 640x480 60 800x600 60 1024x768 60 1280x768 60 1280x800 60 1280x1024 60 1360x768 60 1400x1050 60 1440x900 60 1600x1200 60 1600x1200 60 1680x1050 60 1920x1200 60 RB 2560x1600 60 1920x1080 60 1280x720 60 2048x1080 50 2048x1080 60...
- Page 10 OSD Menu VIDEO 2ND LEVEL 3ND LEVEL 4TH LEVEL OUTPUT 2560x1080P 50 2560x1080P 60 3840x2160P 24 3840x2160P 25 3840x2160P 30 3840x2160P 50 3840x2160P 60 4096x2160P 24 4096x2160P 25 4096x2160P 30 4096x2160P 50 4096x2160P 60 Native ASPECT Over Scan FULL Best Fit Pan Scan Letter Box Under 2...
- Page 11 OSD Menu VIDEO 2ND LEVEL 3ND LEVEL 4TH LEVEL NO SIGNAL COLOR Blue Green BLANK FREEZE AUTO SYNC OFF 3 Min 5 Min 10 Min OUTPUT SETTING Bypass Enable Output 4K(6G) YUV420 EXIT EXIT 1. OUTPUT: Selects the output resolution to use. Selecting “Native” will make the unit automatically select an output resolution based on the detected EDID of the connected display.
- Page 12 OSD Menu 3. ZOOM MODE RATIO: Sets the percentage amount to zoom or shrink the image when “Zoom Mode” is active. 4. HDCP: Selects the HDCP logic to use with the HDMI input. Setting this to “Off” will completely disable HDCP support on that input. 5.
- Page 13 OSD Menu PICTURE 2ND LEVEL 3ND LEVEL SHARPNESS 0~60 (30) Middle High Auto RESET PICTURE EXIT EXIT 1. COLOR GAIN R/G/B: These controls provide control over the red, green, and blue color gain level of the scaled output. 2. COLOR OFF SET R/G/B: These controls provide control over the red, green, and blue color off set level of the scaled output.
- Page 14 OSD Menu AUDIO 2ND LEVEL 3ND LEVEL SOURCE AUTO TOSLINK Analog VOLUME 0~100 (80) HDMI MUTE TOSLINK MUTE ANALOG MUTE RESET AUDIO EXIT 1. SOURCE: Provides control over the selection of the audio source to output. In “Auto” mode, if no audio source is detected the audio input will automatically switch to the analog input. Note: If “Auto”...
- Page 15 OSD Menu 2ND LEVEL 3ND LEVEL H POSITION 0~60 (30) V POSITION 0~60 (30) TIMER TRANSPARENT 0~50 (50) DISPLAY RESET OSD EXIT 1. H POSITION: Set the horizontal position of the OSD menu. 2. V POSITION: Set the vertical position of the OSD menu. 3.
- Page 16 OSD Menu 5. DISPLAY: Enable or disable the information display and set the length of time for the information display to be visible after a source or resolution change. 6. RESET OSD: Selecting this will reset all OSD settings back to their factory defaults. EDID 2ND LEVEL 3ND LEVEL...
- Page 17 OSD Menu 1. UPDATE FROM USB: Provides a way to update the unit’s fi rmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option. After the update is complete the unit will automatically reboot. INFORMATION 2ND LEVEL 3ND LEVEL...
-
Page 18: Connection Diagrams
CONNECTION DIAGRAM... -
Page 19: Video Specifications
Video Specifications Video Specifications SUPPORTED PC SUPPORTED PC HDMI HDMI HDMI HDMI Input Output Input Output RESOLUTION (HZ) RESOLUTION (HZ) 640x480@60/72/75/85 60Hz 1440x900@60/60 (RB) 60Hz ü ü 800x600@56/60/72/75/85 60Hz 1600x1200@60 ü ü ü 1024x768@60/70/75/85 60Hz 1680x1050@60/60 (RB) 60Hz ü ü 1280x720@50/60 60Hz 1920x1080@60... - Page 20 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
