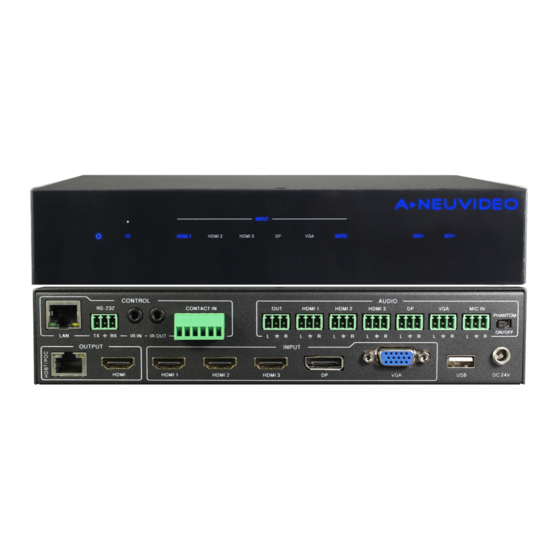

- Page 1 ANI-5MFS 5x1 4K2K@60Hz PRESENTATION SWITCHER W/ HDMI & HDBASET OUTPUT ™ A-NeuVideo.com Frisco, Texas 75034 (469) 277-7606 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION weight to be placed upon it or any person walk on it. The ANI-5MFS 5x1 4K2K@60Hz presentation switcher supports • To protect the unit from overheating, do not block any vents or (5) inputs including (3) HDMI ports, (1) VGA (YPbPr/CVBS) and (1) -
Page 4: Features
NEUVIDEO FEATURES FEATURES • HDMI 2.0b, HDCP 2.2 compliant • (3) HDMI, (1) VGA (YPbPr/CVBS), (1) DisplayPort, (1) MIC In, (4) Unbalanced Audio Input • HDMI and HDBaseT ~230ft (70M) outputs (Mirrored) ™ • HDMI/DP video resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, 1080p@120Hz •... -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS Specifications • HDMI Compliance: HDMI 2.0b • DP Compliance: Display Port 1.2a • HDCP Compliance: HDCP 2.2 and HDCP 1.4 • Video Input Resolutions: • HDMI/Display Port: Up to 4K2K@50/60Hz (4:4:4) • CVBS: PAL/NTSC 3.58/NTSC 4.43/SECAM/PAL M/PAL N • YPBPR: 480i to1080p • VGA: 640x480/60 to1920x1200/60 • HDMI/HDBaseT... -
Page 6: Front Panel
NEUVIDEO FRONT PANEL FRONT PANEL POWER BUTTON AND INDICATOR: When this device is switched to the standby mode by pressing Power button, the indicator will illuminate red. When switching to power on mode, the indicator will illuminate blue. IR WINDOW: Receiving IR signal from remote control. -
Page 7: Back Panel
NEUVIDEO BACK PANEL BACK PANEL CONTROL PORTS: • LAN: This port is the link for Web GUI control; connect to an active Ethernet link with an RJ-45 terminated cable. • RS-232: Serial control port, 3P captive screw connector, connects with a control device (such as a computer) to control the switcher or other device connected with the HDBaseT receiver. -
Page 8: Receiver
NEUVIDEO HDBASET Receiver ™ HDBASET RECEIVER ™ POWER: This LED illuminates when the device is connected with power supply. DC 24V: Plug the 24V DC power supply into the unit. HDBASET™ IN: Standard HDBaseT signal input port. Connect HDBaseT transmitter with a UTP cable following the standard of ™... -
Page 9: Remote Control
NEUVIDEO Remote Control Remote Control POWER: Press this button to power on the switcher or set it to standby mode. MUTE: Press this button for mute or un-mute the audio output. ADJ: Press this button for operate VGA input auto adjustment function. INPUTS: Press these buttons for select the input sources. -
Page 10: Ir Operations
NEUVIDEO IR Operations IR Operations As IR signals can be transmitted bi-directionally between the switcher and the HDBaseT receiver, it is able to use the IR remote to control the switcher or HDMI source devices. CONTROL FAR-END DEVICE LOCALLY: To control the switcher or remote display device by using corresponding remote control. CONTROL LOCAL DEVICE FROM REMOTE: To control the switcher or local source device by using the corresponding remote control. -
Page 11: Auto-Switching Function & Vga/Ypbpr/Cvbs Input
NEUVIDEO Auto-Switching function & VGA/YPbPr/CVBS input Auto-Switching function The switcher has auto-switching and manual-switching modes. When the user select auto-switching mode, It will follows the following principles: NEW INPUT PRINCIPLE: Once a new input signal is detected, the switcher will switch to this new signal automatically. POWER REBOOTING PRINCIPLE: The switcher offers the function to remember the signal last used before power off. -
Page 12: Connection Of Microphone
NEUVIDEO Connection of Microphone Connection of Microphone The switcher provides one 2-level microphone input to accommodate different microphone input modes, including 48V phantom power mode and MIC mode. When switched to “ON” (It has a good frequency characteristic, high input impedance and high sensitivity in this mode), the MIC input will provide a 48V phantom power. -
Page 13: Operations Of Rs-232 Control
NEUVIDEO Operations of RS-232 Control Operations of RS-232 Control As RS-232 can be transmitted bi-directionally between the switcher and the HDBaseT receiver, it is able to control a third party RS-232 ™ device locally or control the compact switcher bi-directionally. CONTROL THE SWITCHER OR 3RD PARTY DEVICE FROM LOCAL CONTROL THE SWITCHER OR 3RD PARTY DEVICE FROM REMOTE RECEIVER RS-232 CONTROLLER:... -
Page 14: Webgui Control
NEUVIDEO WebGUI Control WebGUI Control The switcher can be controlled via Web browser, which contains General, Setup and Network Settings. After the active Ethernet link with a RJ-45 terminated cables are connected, the IP address is obtained and the IP address is entered in the Web browser, the switcher can be controlled. -
Page 15: Osd Menu
NEUVIDEO OSD MENU OSD MENU The switcher provides a powerful OSD operation menu. Press MENU button on IR remote to enter in OSD menu, the users can change some settings through the OSD menu. MAIN MENU: The Main MENU includes Picture mode, Aspect ratio, Screen, EDID switch, Audio setting, network and Software update options. - Page 16 NEUVIDEO OSD MENU OSD MENU SCREEN: The Screen MENU adjusts for VGA input only. The user can adjust horizontal, vertical position, size and phase. EDID: The EDID MENU adjusts for HDMI and Display port inputs only. EDID1.4 is for HDMI1.4 standard. EDID2.0 is for HDMI2.0 standard, and EDID AUTO is copying the display EDID directly.
- Page 17 NEUVIDEO OSD MENU OSD MENU NETWORK: The Network MENU will display the IP address. SOFTWARE UPDATE: The switcher supports Software Updates via USB flash disk. The procedure is as follows: 1. Copy the file “MERGE.bin” to the root directory of a USB flash disk. (Make sure the file is copied to the root directory. The “MERGE. bin”...
-
Page 18: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM 1. Connect HDMI source devices (e.g. Blue-ray DVD) to HDMI input ports of the switcher with HDMI cable. Connect VGA source device (eg. PC/Note-book) to VGA input port of the switcher with a VGA cable. 2. - Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 20 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
