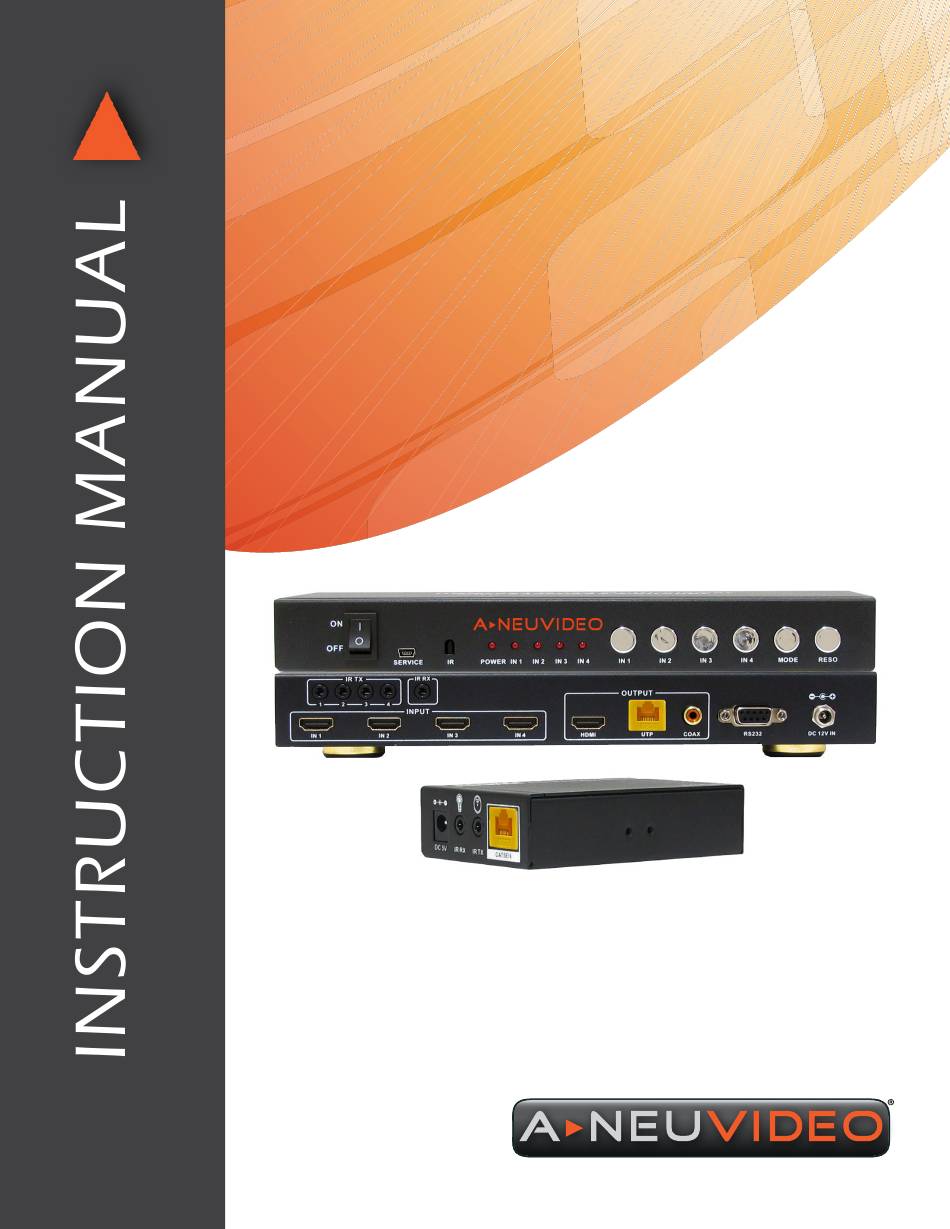

- Page 1 ANI-QUAD-MINI HDMI 4x1 Quad Multi-Viewer w/ Seamless Switcher A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION sufficient space for air to circulate around the unit. The ANI-QUAD-MINI HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from (4) different sources on a single monitor. It is capable of displaying the video DISCLAIMERS sources in Quad, PiP or Full Screen modes. -
Page 4: Features
• Turn ARC on to play audio from a HDTV with ARC support, to the connected speakers • Turn ARC off to play audio from the multiviewer source, to the connected speakers **The ANI-QUAD-MINI is NOT compatible with EZ-45 connectors. -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS SPECIFICATIONS • Video Bandwidth: 2.25Gbps • Input Ports: • (4) HDMI (Female type) • (1) 3.5mm port for the IR receiver • (1) RS-232 • Output Ports: • (1) HDMI (Female type) • (1) RCA • (1) RJ45 connector for CATx cable to the remote unit •... -
Page 6: Operation & Functions

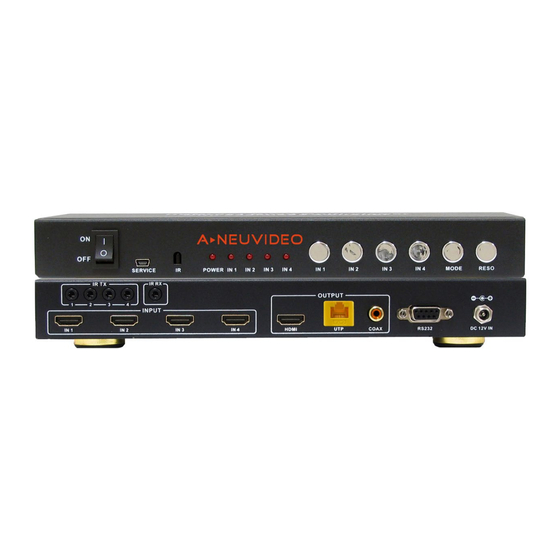

NEUVIDEO OPERATION & FUNCTIONS FRONT PANEL ON/OFF: Power on/off switch. SERVICE: For factory use only. Remote control receiver window. POWER LED: This red LED illuminates when the device is connected to the power supply. IN1, 2, 3, 4 LED: These red LEDs illuminate when the Output has selected the corresponding Input. INPUT BUTTON: Press this button to select the Input source. - Page 7 NEUVIDEO OPERATION & FUNCTIONS CAT Receiver DC 5V: Connect the 5V DC power supply into the unit and connect the adaptor to an AC outlet. IR RX: Connects to the IR Receiver for IR signal reception. Ensure the remote being used is within the direct line-of-sight of the IR receiver. IR TX: Connects the IR Blaster cable, included in the package, for IR signal transmission.
-
Page 8: Connect & Operate
NEUVIDEO CONNECT & OPERATE Wideband IR (30KHz---60KHz) introduction IR BLASTER (TX): To control the source: Plug the IR Blaster into IR TX port of the transmitter unit. Place the blaster in front of the IR eye of the source. IR RECEIVER (RX): To control the source: Plug the IR Receiver into IR RX port of the receiver unit. -
Page 9: Remote Control / Pc Gui Interface
08F7 15 MODE3: 08F7 4B PC GUI INTERFACE A-Neuvideo.com INSTALLATION: Download the GUI Software zip file from our site from the downloads and documents tab on the product page. Use a cable to connect the PC via the RS-232 port and copy “Quad multi-viewer.exe” to your PC to complete installation. -
Page 10: Connection Diagram
NEUVIDEO Connection Diagram DIAGRAM OPTIONAL RACK MOUNT BRACKET MODEL NO.: ANI-QUAD-MINI-RM... -
Page 11: Rs-232 Commands
NEUVIDEO RS-232 SERIAL INTERFACE /CommandS RS-232 SERIAL INTERFACE for connection to a PC or 3rd Party Controller 1. Transmission rate: 115200bps 2. Data format: 8 data bits, No parity, 1 start bit and 1 stop bit 3. Flowing control: None Also know as 115200,8,n,1 RS-232 Configuration RS-232 cable is a straight thru cable and not null-modem... - Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
