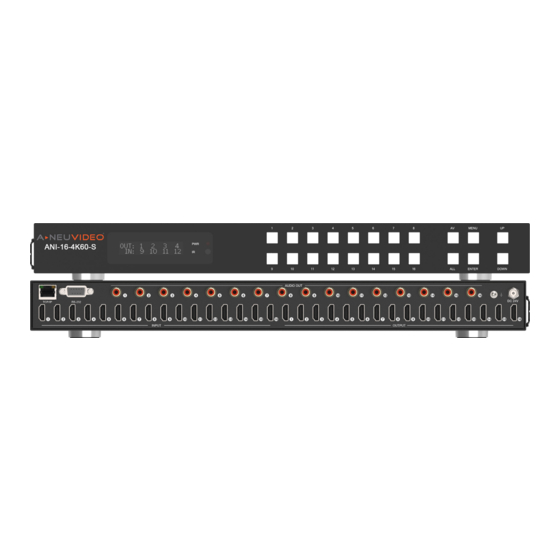

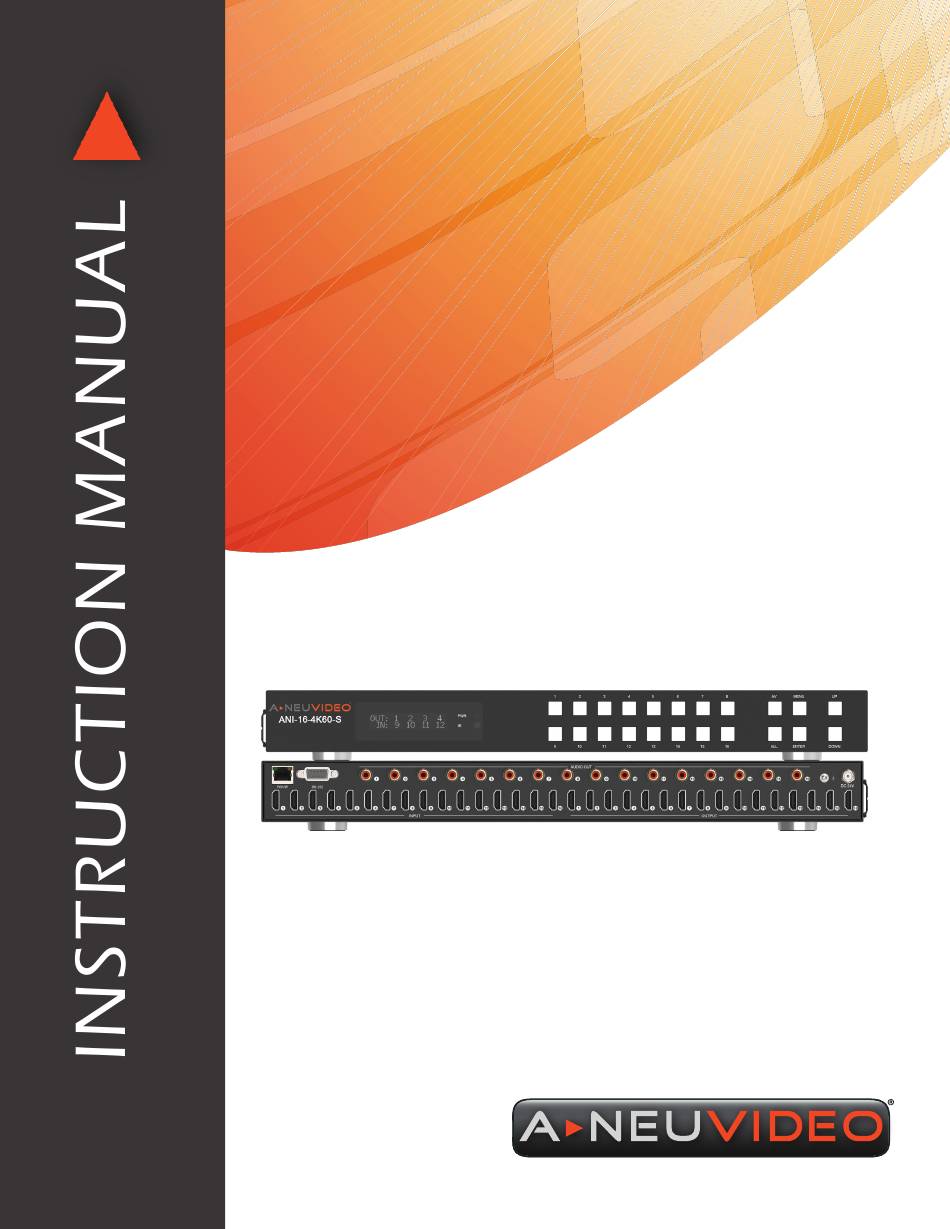

- Page 1 ANI-16-4K60-S 16x16 UHD 4K@60Hz HDR HDMI MATRIX SWITCHER w/ Scaler A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for The ANI-16-4K60-S 18Gbps 16x16 HDMI Matrix supports the sufficient space for air to circulate around the unit. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 2.0b, HDCP 2.2/1.x and DVI 1.0 compliant • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports • Support 18Gbps video bandwidth • HDR, HDR10, HDR10+, Dolby Vision and HLG are supported •... -
Page 5: Front & Rear Panels
NEUVIDEO FRONT PANEL FRONT PANEL OLED SCREEN: Display matrix switching status, input / output port, EDID, Baud rate, IP Address. POWER LED: The LED will illuminate in green when the product is connected to power supply, and red when the product is on standby. - Page 6 NEUVIDEO rear PANEL REAR PANEL TCP/IP PORT: TCP/IP control port, connect to PC or router with an RJ45 cable. RS-232 PORT: Connect to a PC or control system by D-Sub 9-pin cable to transmit RS-232 command. AUDIO OUT (1-16): Coaxial audio output port, connect to audio output device such as audio amplifier via a coaxial cable. DC 24V: Connect to 24V power adapter.
-
Page 7: Remote Control
NEUVIDEO Remote Control Remote Control POWER ON OR STANDBY: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16: Select input source button. OUTPUT 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16: Select output source button. ALL: Select all output sources simultaneously. For example: when you press input “1” button and then press the “All” button, at this time the input “1”... -
Page 8: Rs-232 Control Commands / Ascii Commands
NEUVIDEO RS-232 Control CommandS Serial port protocol BAUD RATE: 115200 IP PROTOCOL: DATA BITS: 8 TCP/IP PORT: 65280 STOP BITS: 1 TELNET PORT: 23 CHECK BIT: 0 RS-232 CONFIGURATION RS-232 cable is a straight thru cable and not null-modem Definition Definition Device RS-232... - Page 9 NEUVIDEO ASCII CommandS Then, open a Serial Command tool on PC to send ASCII command to control the Matrix. The ASCII command list about the product is shown as below. SERIAL PORT PROTOCOL Baud rate: 115200 Data bits: 8bit Stop bits: 1 Check bit: 0 POWER COMMAND...
- Page 10 NEUVIDEO ASCII CommandS s save preset z! SAVE SWITCH STATE BETWEEN ALL OUTPUT s save preset 1! Save to Preset 1 PORT AND THE INPUT PORT TO PRESET Z, Z=1~8 s recall preset z! CALL SAVED PRESET Z SCENARIOS, Z=1~8 s recall preset 1! Recall from Preset 1 s clear preset z!
- Page 11 NEUVIDEO ASCII CommandS EDID SETTING COMMAND DEFAULT DESCRIPTION EXAMPLE FEEDBACK CODE SETTING s edid in x from z! 25. COPY FROM HDMI OUTPUT 2 26. COPY FROM HDMI OUTPUT 3 27. COPY FROM HDMI OUTPUT 4 28. COPY FROM HDMI OUTPUT 5 29.
- Page 12 NEUVIDEO ASCII CommandS COMMAND DEFAULT DESCRIPTION EXAMPLE FEEDBACK CODE SETTING s cec in x right! SET INPUT X MENU RIGHT OPERATION BY s cec in 1 right! Input 1 MENU RIGHT CEC, X=0~16 (0=ALL INPUT) OPERATION s cec in x enter! SET INPUT X MENU ENTER BY CEC, s cec in 1 enter! Input 1 MENU ENTER...
- Page 13 NEUVIDEO ASCII CommandS s ip mode z! SET NETWORK IP MODE TO STATIC IP OR s ip mode 0! Set IP mode: Static DHCP, Z=0~1 (Z=0 STATIC, Z=1 DHCP ) (Please use “s net reboot!” command or repower device to apply new config!) r ip mode! GET NETWORK IP MODE...
-
Page 14: Edid Management
NEUVIDEO EDID Management EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-Panel Button Operation: On the initial OLED display screen, press “MENU”... - Page 15 NEUVIDEO EDID Management EDID MODE EDID DESCRIPTION 4K2K60_420, Dolby/DTS 5.1 4K2K60_420, HD Audio 7.1 4K2K60_444, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 4K2K60_444, HD Audio 7.1 4K2K60_444, Stereo Audio 2.0 HDR 4K2K60_444, Dolby/DTS 5.1 HDR 4K2K60_444, HD Audio 7.1HDR USER1 USER2 Copy from HDMI Output 1 Copy from HDMI Output 2 Copy from HDMI Output 3...
-
Page 16: Web Gui User Guide
NEUVIDEO Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: STEP 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: THE FIRST WAY: You can get the IP address via panel buttons. - Page 17 NEUVIDEO Web GUI User Guide SWITCH Page You can do the following operations on the Switch page: OUTPUT: The current device’s OUTPUT port. You can select signal source for it. ALL OUTPUT: All OUTPUT ports for the current device. You can select signal source for them. INPUT: You can click the drop-down menu to select signal source for the corresponding OUTPUT port .
- Page 18 NEUVIDEO Web GUI User Guide You can do the following operations on the Input page: INPUTS: Input channel of the device. ACTIVE: It indicates whether the channel is connected to a signal source. NAME: The input channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box (Chinese name is unsupported).
- Page 19 NEUVIDEO Web GUI User Guide SCALAR MODE: Set the current output resolution mode. ARC: Turn on/off the ARC function. STREAM: Turn on/off the output stream. CEC Page You can perform CEC management on this page: INPUT CONTROL: You can control the operation of each input source by clicking the icons on the page. OUTPUT CONTROL: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
- Page 20 NEUVIDEO Web GUI User Guide Click “OK” to search the IP Address again, as shown in the following figure. After searching is completed, it will switch to the login page, the default network setting is completed. Modify Username: Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”.
- Page 21 NEUVIDEO Web GUI User Guide System Page PANEL LOCK: Click “Panel Lock” to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. BEEP: Click “Beep” to turn on/off the beep. LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s). SERIAL BAUD RATE: Click the value to set the Serial Baud Rate.
-
Page 22: Application Example
NEUVIDEO Application Example... - Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
